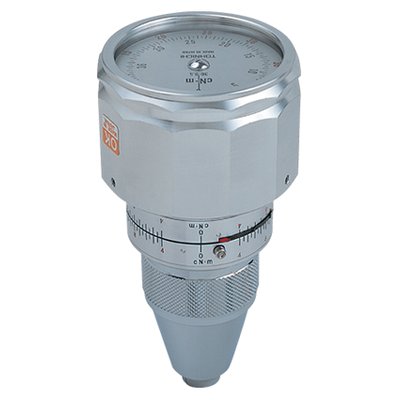

Tohnichi BTG

Capacity 15 / 24 / 36 / 60 / 90 / 150 cNm

High precision Torque Gauge for measuring of micro torque and tightening

Suitable for fine torque measurements required in inspection, research and assembly of small parts, such as precision instruments, electronic products. Graduation and memory pointer on the body side ensure excellent visibility from different operating positions.

There are various application types, e.g. for measuring rotating objects, or also for measuring torque on orthodontic springs, et al. BTG models have a three-jaw chuck which firmly grasp the object. Main body and chuck are locked when pushing “push lock button”. Push lock button makes body and chuck secured while using chuck.



Key Features

  • Accuracy ± 2%
  • Bi-directional torque indication – cw / ccw.
  • Dial scaled 270 degrees each direction, built-in overload protection.
  • Models with -S suffix have additional memory pointer in top display.
  • Equipped with 3-jaw steel chuck.



Shipping List

  • Torque Gauge
  • Firm Safe Box
  • Operating Manual
  • Calibration Certificate



Options

  • Alternatively with scaling in english units (ozf·in, lbf·in).
  • Metric scale (kgf·cm) on request.
  • SI and metric models optionally available without memory pointer in top display.
BTG (SI)
Model Item No. Torque
range
cN·m
Graduation
cN·m
Length
mm
Diameter
mm
Chuck
range
mm
Weight
kg
BTG-15CN-S T251052-S 2 - 15 0.2 134 64.2 1 - 8.5 0.520
BTG-24CN-S T251055-S 3 - 24 0.5 134 64.2 1 - 8.5 0.520
BTG-36CN-S T251058-S 4 - 36 0.5 134 64.2 1 - 8.5 0.520
BTG-60CN-S T251061-S 6 - 60 1.0 134 64.2 1 - 8.5 0.520
BTG-90CN-S T251064-S 10 - 90 1.0 134 64.2 1 - 8.5 0.520
BTG-150CN-S T251067-S 20 - 150 2.0 134 64.2 1 - 8.5 0.520
All specifications without guarantee, errors and omissions excepted.
