Tohnichi BTGE-G

Capacity 10 / 20 / 50 / 100 / 200 cNm

Digital Torque Gauge with flip-up Display

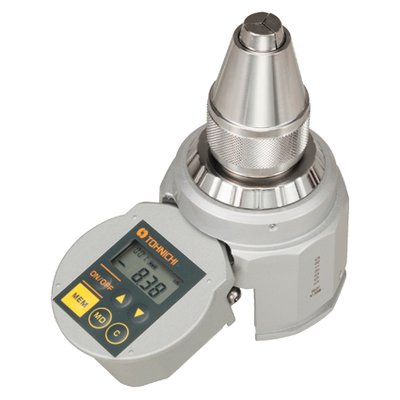

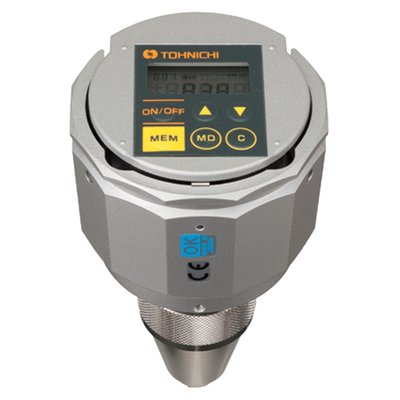

High precision handheld digital torque gauge with integrated LC display to measure small torque. Ideal for measurement, inspection, and tightening of precision machineries and electric devices. Flip-up display can be adjusted for optimal reading and accommodates various testing positions.

BTGE-G series products are manufactured for the global market and offer a selection of SI, metric and American units of measurement. Equipped with SI calibration as standard. Optionally available with calibration in anglo-saxon (ozf·in, lbf·in) or in metric (kgf·cm) units.

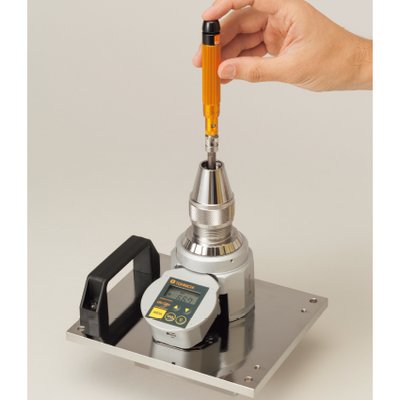

There are various application types, even for measuring rotating objects. Combined with Measurement Board (No. 809), it can be fixed to use as torque screwdriver checker, etc.



Key Features

  • Bi-directional accuracy ± 2% + 1 digit.
  • Measurement modes: Peak, Track.
  • 4 changeable units of measure: cN·m, kgf·cm, ozf·in, lbf·in.
  • Available for measuring rotating objects.
  • Three-jaw keyless chuck equipped to clamp the object firmly.
  • Max. 999 readings can be saved with statistical function max/min/meantime values.
  • Coin-type lithium battery (CR2450) allows 10-hours continuous operation.
  • The continuous operation time can be extend in about 50-hours when optional battery pack (Model: BP-C1) is used.
  • USB cable can be used for data transfer to PC (Optional accessory # 384).
  • Applicable for using in the EU region with CE mark applied.



Shipping List

  • Torque Gauge BTGE
  • Lithium battery CR-2450
  • Calibration Certificate (SI)
  • Storage Case
  • Operating Manual



Options

  • Equipped with SI calibration as standard. Optionally available with calibration in anglo-saxon (ozf·in, lbf·in) or in metric (kgf·cm) units.
  • Battery Pack (BP-C1)
  • USB cable (#384)
  • AC Adapter (BA-5)
  • Measurement Board (#809)
BTGE-G
Model Item No. Torque Range
cN·m
Graduation
cN·m
Length
mm
Diameter
mm
Chuck
range
mm
Weight
kg
BTGE 10 CN-G T251120 2 - 10 0.01 130 75 1 - 8.5 0.65
BTGE 20 CN-G T251121 4 - 20 0.02 130 75 1 - 8.5 0.65
BTGE 50 CN-G T251122 10 - 50 0.05 130 75 1 - 8.5 0.65
BTGE 100 CN-G T251123 20 - 100 0.1 130 75 1 - 8.5 0.65
BTGE 200 CN-G T251124 40 - 200 0.1 130 75 1 - 8.5 0.65
All specifications without guarantee, errors and omissions excepted.
