Crane CheckStar Multi

Capacity 1 / 2 / 5 / 10 / 20 / 25 / 50 / 75 / 100 / 180 / 250 / 500 / 750 / 1400 / 3000 / 5000 Nm

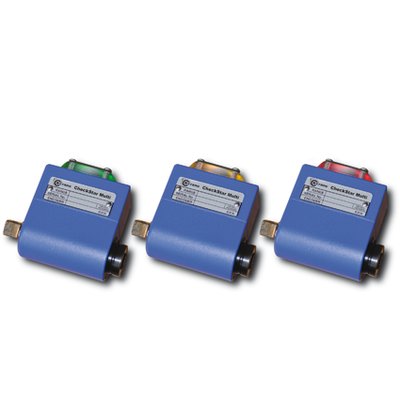

Rotary Transducer with tri-colour Light Ring

The CheckStar Multi is the latest generation of Crane Electronics market leading CheckStar in line rotary torque transducer. It raises the standard for dynamic torque and angle measurement of all continuous drive and impulse tools, with proven reliable performance in thousands of applications worldwide.

If angle is specified, the CheckStar Multi rotary torque transducer will include an angle encoder giving 0.125° resolution (720 PPR). It also incorporates a light ring, giving the user visual feedback of the status of a tightening, when used with a Crane readout or data collector.

The CheckStar Multi fits in line between the assembly tool and the fastener, measuring the actual torques applied and angular rotation of the fastener, under production conditions.

Whatever the vibration and shock loads experienced, CheckStar Multi’s patented contact system ensures a connection is always maintained between the readout and the strain gauges. Inferior systems suffer from “brush bounce” that leads to unreliable torque readings.

The low inertia design of the CheckStar Multi ensures accurate and repeatable measurement of high speed transients, such as the point of shut-off on continuous drive tools and the pulsing of impulse tools.

Using on-board intelligence the CheckStar Multi is automatically recognised by a Crane data collector or readout device, eliminating set-up errors and enabling logging of serial number against measurements for complete traceability. The CheckStar Multi can also be used where a user needs the advanced features of the transducer but already has a data collector or readout device from another manufacturer.



Key Features

  • In line rotary torque transducer with optional angle measurement
  • Low inertia benefits accurate dynamic measurement
  • Patented design ensures no brush bounce even when used with impulse tools
  • Suitable for use with all continuous drive tools, impulse tools and torque wrenches
  • Compatible with most industry standard data collectors and readouts
  • Torque Accuracy ± 0.25% of full scale
  • Angle measurement option with no size increase (0.125° resolution)
  • Low friction eliminates wear and supports accuracy
  • Automatic transducer recognition with Crane data collectors and torque readout devices
  • Easily viewed light ring showing status, when used with Crane data collectors and readout devices



Optional Accs

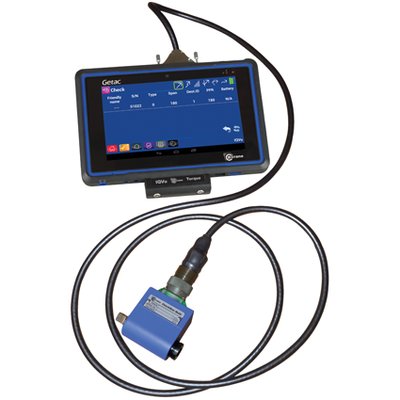

  • Cable 7025 # C718259

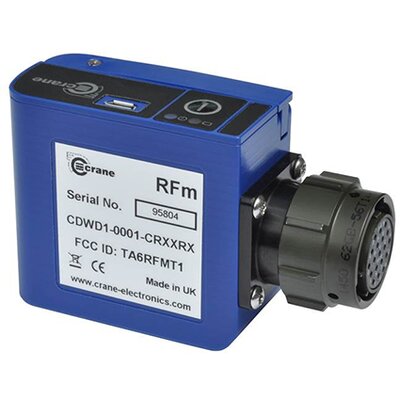

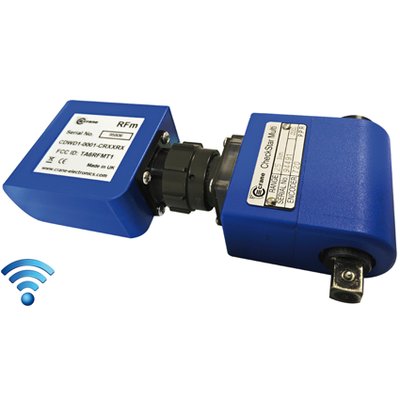

  • RFm Device # C718620
CheckStar Multi – Hex Drive
Model Item No. Hx.drv
Inch
Torque Range
N·m
Pin Angle
meas.
Weight
kg
 CMHAX-0001-CRXXXX C718607 1/4 0.1 - 1 0.21
 CMHAX-0001-CRXAXX C718640 1/4 0.1 - 1 + 0.21
 CMHAX-0002-CRXXXX C718621 1/4 0.2 - 2 0.21
 CMHAX-0002-CRXAXX C718641 1/4 0.2 - 2 + 0.21
 CMHAX-0005-CRXXXX C718622 1/4 0.5 - 5 0.21
 CMHAX-0005-CRXAXX C718642 1/4 0.5 - 5 + 0.21
 CMHAX-0010-CRXXXX C718623 1/4 1 - 10 0.21
 CMHAX-0010-CRXAXX C718643 1/4 1 - 10 + 0.21
 CMHAX-0020-CRXXXX C718624 1/4 2 - 20 0.21
 CMHAX-0020-CRXAXX C718644 1/4 2 - 20 + 0.21
CheckStar Multi – Square Drive
Model Item No. Sq.drv
Inch
Torque Range
N·m
Pin Angle
meas.
Weight
kg
 CMSAX-0005-CRPXXX C718625 1/4 0.5 - 5 + 0.20
 CMSAX-0005-CRPAXX C718645 1/4 0.5 - 5 + + 0.20
 CMSAX-0010-CRPXXX C718626 1/4 1 - 10 + 0.20
 CMSAX-0010-CRPAXX C718646 1/4 1 - 10 + + 0.20
 CMSAX-0020-CRPXXX C718627 1/4 2 - 20 + 0.20
 CMSAX-0020-CRPAXX C718647 1/4 2 - 20 + + 0.20
 CMSBX-0025-CRPXXX C718628 3/8 2.5 - 25 + 0.24
 CMSBX-0025-CRPAXX C718648 3/8 2.5 - 25 + + 0.24
 CMSBX-0050-CRPXXX C718629 3/8 5 - 50 + 0.24
 CMSBX-0050-CRPAXX C718649 3/8 5 - 50 + + 0.24
 CMSBX-0075-CRPXXX C718630 3/8 7.5 - 75 + 0.24
 CMSBX-0075-CRPAXX C718650 3/8 7.5 - 75 + + 0.24
 CMSCX-0180-CRPXXX C718631 1/2 18 - 180 + 0.43
 CMSCX-0180-CRPAXX C718651 1/2 18 - 180 + + 0.43
 CMSDX-0250-CRPXXX C718632 3/4 25 - 250 + 0.76
 CMSDX-0250-CRPAXX C718652 3/4 25 - 250 + + 0.76
 CMSDX-0500-CRPXXX C718633 3/4 50 - 500 + 0.76
 CMSDX-0500-CRPAXX C718653 3/4 50 - 500 + + 0.76
 CMSFX-0750-CRPXXX C718634 1 75 - 750 + 1.50
 CMSFX-0750-CRPAXX C718654 1 75 - 750 + + 1.50
 CMSFX-1400-CRPXXX C718635 1 140 - 1400 + 1.50
 CMSFX-1400-CRPAXX C718655 1 140 - 1400 + + 1.50
 CMSGX-3000-CRPXXX C718636 1 1/2 300 - 3000 + 5.70
 CMSGX-3000-CRPAXX C718656 1 1/2 300 - 3000 + + 5.70
 CMSGX-5000-CRPXXX C718637 1 1/2 500 - 5000 + 5.70
 CMSGX-5000-CRPAXX C718657 1 1/2 500 - 5000 + + 5.70
Any torque equipment is recommended to be used mainly in its medium range. If you had to work close to the maximum load capacity regularly, a larger model should be chosen to prevent risk of overtorquing.

All specifications without guarantee, errors and omissions excepted.
