Industrial Tools
Torque Systems

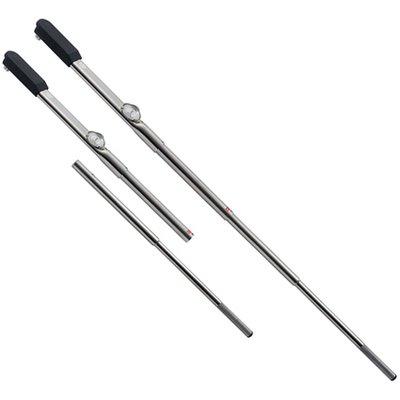

Tohnichi DBE series

Capacity 560 / 700 / 850 / 1000 / 1400 / 2100 / 2800 Nm

Dial Indicating Torque Wrenches

Basic dial indicating inspection torque wrench with wide range and high accuracy. Inspection torque wrench. DB-S series, DBE-S series and DBR-S series have a convenient memory pointer giving peak reading.

Models with memory pointer have “-S” at the end of their model names. Since the dial can be rotated, the pointer can be set to the desired torque first, and complete tightening is achieved when the pointer indicates "0".

DBE accuracy is consistent regardless of where the hand is placed. DBE wrench has a detachable extension handle.



Key Features

  • Oversized dial face is extremely easy to read.
  • Accuracy and calibration procedures compliant to ISO 6789 type I class B.
  • Bi-directional.
  • Fixed male square drive.



Shipping List

  • Torque Wrench DB-E
  • Traceable calibration certificate
  • Operating manual



Options

  • Alternatively in english units (lbf·ft) or with metric scale (kgf·m) on request.
  • Optionally without memory pointer.
  • Adjusting Tool #316 (torque tester required).
Series DBE (Nm)
Model Item No. Torque Range*
N·m
Graduation
N·m
Length
mm
Sq.Drv.
inch
Weight
kg
DBE560N-S T211150-S 560 5 1100 3/4 4.0
DBE700N-S T211152-S 700 10 1260 3/4 5.5
DBE850N-S T211155-S 850 10 1360 1 6.1
DBE1000N-S T211157-S 1000 10 1490 1 6.4
DBE1400N-S T211160-S 1400 20 1740 1 8.6
DBE2100N-S T211163-S 2100 20 2140 1 12.8
DBE2800N-S T211166-S 2800 50 2380 1 1/2 16.8
* The requirements and testing methods of the DIN EN ISO 6789 are valid for the rated output (capacity) for a measuring range from 20% to 100%. The effective range is to the respective rated output with approximately 10 - 120%.

All specifications without guarantee, errors and omissions excepted.
