Industrial Tools
Torque Systems

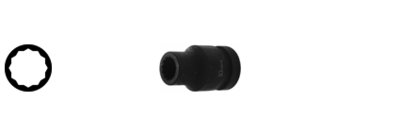

Double Hex

Double hexagon - normal
Model Item No. A/F L mm D1
mm
D2 mm D mm PU
K3/4-13DSK 250410 13 50 23 38 12
K3/4-14DSK 250411 14 50 24 38 12
K3/4-15DSK 250412 15 50 26 38 12
K3/4-16DSK 250413 16 50 27 38 12
K3/4-17DSK 250414 17 50 28 38 12
K3/4-18DSK 250415 18 50 29 38 12
K3/4-19DSK 250416 19 50 30 38 14
K3/4-20DSK 250417 20 52 31 38 16
K3/4-21DSK 250418 21 52 32 38 16
K3/4-22DSK 250419 22 52 34 38 16
K3/4-23DSK 250420 23 52 35 38 16
K3/4-24DSK 250421 24 52 36 38 18
K3/4-25DSK 250422 25 52 38 38 18
K3/4-26DSK 250423 26 52 40 38 23
K3/4-27DSK 250424 27 52 40 38 23
K3/4-28DSK 250425 28 52 42 38 23
K3/4-29DSK 250426 29 52 43 38 23
K3/4-30DSK 250427 30 52 43 38 23
K3/4-31DSK 250428 31 56 44 38 24
K3/4-32DSK 250429 32 56 45 38 24
K3/4-33DSK 250430 33 56 46 38 24
K3/4-34DSK 250431 34 56 48 38 24
K3/4-35DSK 250432 35 56 50 38 24
K3/4-36DSK 250433 36 56 51 38 24
K3/4-37DSK 250434 37 56 52 38 24
K3/4-38DSK 250435 38 56 53 38 24
K3/4-39DSK 250436 39 62 55 38 28
K3/4-41DSK 250437 41 62 58 38 28
K3/4-42DSK 250438 42 62 61 38 28
K3/4-43DSK 250439 43 62 63 38 28
K3/4-46DSK 250440 46 68 67 38 33
K3/4-50DSK 250441 50 70 71 38 34
K3/4-55DSK 250442 55 74 77 54 35
K3/4-56DSK 250443 56 74 77 54 35
K3/4-60DSK 250444 60 75 84 54 35
K3/4-63DSK 250445 63 78 86 54 37
K3/4-65DSK 250446 65 78 88 54 38
K3/4-67DSK 250447 67 80 90 54 40
Double hexagon - long
Model Item No. A/F L mm D1
mm
D2 mm D mm PU
K3/4-13DSKL 250450 13 95 24,5 44 9
K3/4-14DSKL 250451 14 95 25,5 44 11
K3/4-15DSKL 250452 15 95 27 44 11
K3/4-16DSKL 250453 16 95 28 44 11
K3/4-17DSKL 250454 17 95 29,5 44 11
K3/4-18DSKL 250455 18 95 31 44 13
K3/4-19DSKL 250456 19 95 32 44 13
K3/4-20DSKL 250457 20 95 34 44 13
K3/4-21DSKL 250458 21 95 35 44 15
K3/4-22DSKL 250459 22 95 37 44 15
K3/4-23DSKL 250460 23 95 38 44 15
K3/4-24DSKL 250461 24 95 39 44 18
K3/4-25DSKL 250462 25 95 41 44 18
K3/4-26DSKL 250463 26 95 42 44 18
K3/4-27DSKL 250464 27 95 43 44 19
K3/4-28DSKL 250465 28 95 44 44 19
K3/4-29DSKL 250466 29 95 46 44 19
K3/4-30DSKL 250467 30 95 47 44 21
K3/4-31DSKL 250468 31 95 48 44 21
K3/4-32DSKL 250469 32 95 49 44 22
K3/4-33DSKL 250470 33 95 51 44 22
K3/4-34DSKL 250471 34 95 52 44 22
K3/4-35DSKL 250472 35 95 53 44 22
K3/4-36DSKL 250473 36 95 54 44 24
K3/4-37DSKL 250474 37 95 56 44 24
K3/4-38DSKL 250475 38 95 57 44 24
K3/4-39DSKL 250476 39 95 58 44 24
K3/4-40DSKL 250477 40 95 59,5 44 24
K3/4-41DSKL 250478 41 95 61 44 27
K3/4-42DSKL 250479 42 95 62 44 27
K3/4-43DSKL 250480 43 95 63,5 44 27
K3/4-44DSKL 250481 44 95 64,5 44 27
K3/4-45DSKL 250482 45 95 65,5 44 27
K3/4-46DSKL 250483 46 100 66,5 44 30
K3/4-47DSKL 250484 47 100 68 44 30
K3/4-48DSKL 250485 48 100 69 44 30
K3/4-49DSKL 250486 49 100 70 44 30
K3/4-50DSKL 250487 50 100 71 54 32
K3/4-51DSKL 250488 51 100 72 54 32
K3/4-52DSKL 250489 52 100 74 54 32
K3/4-53DSKL 250490 53 100 75 54 32
K3/4-54DSKL 250491 54 100 77 54 32
K3/4-55DSKL 250492 55 105 78 54 35
K3/4-56DSKL 250493 56 105 79 54 35
K3/4-57DSKL 250494 57 105 80 54 35
K3/4-58DSKL 250495 58 105 81 54 37
K3/4-60DSKL 250496 60 105 84 54 37
K3/4-63DSKL 250497 63 105 87 54 37
K3/4-65DSKL 250498 65 105 90 54 40
K3/4-67DSKL 250499 67 105 92 54 40
K3/4-68DSKL 250500 68 105 94 54 40
K3/4-70DSKL 250501 70 105 96 54 40
K3/4-73DSKL 250502 73 108 100 54 42
K3/4-75DSKL 250503 75 108 102 64 42
All specifications without guarantee, errors and omissions excepted.
