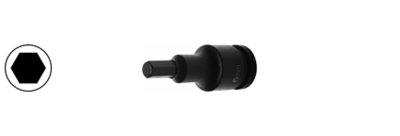

Hexagon - short

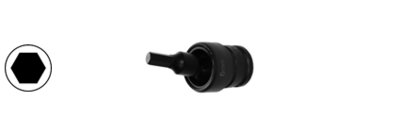

Hexagon - with joint
Images
Downloads
External Hex (Allen)
Hexagon - short
| Model | Item No. | A/F | L mm | D1 mm |
D2 mm | D mm | PU |
|---|---|---|---|---|---|---|---|
| KA3/8-3 | 221310 | 3 | 50 | – | 19 | 16 | 5 |
| KA3/8-4 | 221311 | 4 | 50 | – | 19 | 16 | 5 |
| KA3/8-5 | 221312 | 5 | 50 | – | 22 | – | 5 |
| KA3/8-6 | 221313 | 6 | 50 | – | 22 | – | 5 |
| KA3/8-7 | 221314 | 7 | 50 | – | 19 | 16 | 5 |
| KA3/8-8 | 221315 | 8 | 50 | – | 22 | – | 5 |
| KA3/8-9 | 221316 | 9 | 50 | – | 19 | 16 | 5 |
| KA3/8-10 | 221317 | 10 | 50 | – | 22 | – | 5 |
| KA3/8-11 | 221318 | 11 | 50 | – | 19 | 16 | 5 |
| KA3/8-12 | 221319 | 12 | 50 | – | 22 | – | 5 |
| KA3/8-13 | 221320 | 13 | 50 | – | 19 | 16 | 5 |
| KA3/8-14 | 221321 | 14 | 50 | – | 22 | – | 5 |
| KA3/8-15 | 221322 | 15 | 50 | – | 19 | 16 | 5 |
| KA3/8-16 | 221323 | 16 | 50 | – | 19 | 16 | 5 |
Hexagon - with joint
| Model | Item No. | A/F | L mm | D1 mm |
D2 mm | D mm | PU |
|---|---|---|---|---|---|---|---|
| KG3/8-5 | 221350 | 5 | 60 | – | 24 | 11 | 5 |
| KG3/8-6 | 221351 | 6 | 60 | – | 24 | 11 | 5 |
| KG3/8-7 | 221352 | 7 | 60 | – | 24 | 15 | 5 |
| KG3/8-8 | 221353 | 8 | 60 | – | 24 | 15 | 5 |
| KG3/8-9 | 221354 | 9 | 60 | – | 24 | 15 | 5 |
| KG3/8-10 | 221355 | 10 | 60 | – | 24 | 15 | 5 |
| KG3/8-11 | 221356 | 11 | 60 | – | 24 | 15 | 5 |
| KG3/8-12 | 221357 | 12 | 60 | – | 24 | 15 | 5 |
| KG3/8-13 | 221358 | 13 | 60 | – | 24 | 15 | 5 |
| KG3/8-14 | 221359 | 14 | 60 | – | 24 | 15 | 5 |
| KG3/8-15 | 221360 | 15 | 60 | – | 24 | 15 | 5 |
| KG3/8-16 | 221361 | 16 | 60 | – | 24 | 15 | 5 |
All specifications without guarantee, errors and omissions excepted.
