External TX

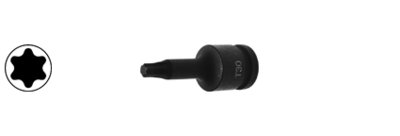

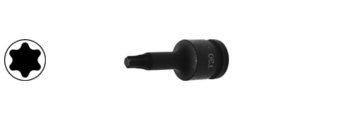

External Torx - short
| Model | Item No. | TX | L mm | D1 mm |
D2 mm | D mm | PU |
|---|---|---|---|---|---|---|---|
| K3/8-T9 | 221650 | T9 | 50 | – | 19 | 2,8 | 5 |
| K3/8-T10 | 221651 | T10 | 50 | – | 19 | 2,8 | 5 |
| K3/8-T15 | 221652 | T15 | 50 | – | 19 | 2,8 | 5 |
| K3/8-T20 | 221653 | T20 | 50 | – | 19 | 3 | 5 |
| K3/8-T25 | 221654 | T25 | 50 | – | 19 | 3 | 5 |
| K3/8-T27 | 221655 | T27 | 50 | – | 19 | 3,8 | 5 |
| K3/8-T30 | 221656 | T30 | 50 | – | 19 | 3,8 | 5 |
| K3/8-T40 | 221657 | T40 | 50 | – | 19 | 4,3 | 5 |
| K3/8-T45 | 221658 | T45 | 50 | – | 19 | 5 | 5 |
| K3/8-T47 | 221659 | T47 | 50 | – | 19 | 5 | 5 |
| K3/8-T50 | 221660 | T50 | 50 | – | 19 | 5,5 | 5 |

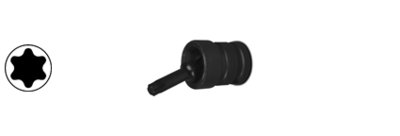

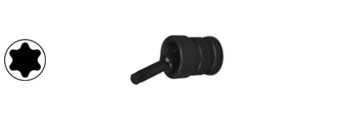

External Torx - with joint
| Model | Item No. | TX | L mm | D1 mm |
D2 mm | D mm | PU |
|---|---|---|---|---|---|---|---|
| KG3/8-T20 | 221710 | T20 | 60 | – | 24 | – | 5 |
| KG3/8-T25 | 221711 | T25 | 60 | – | 24 | – | 5 |
| KG3/8-T27 | 221712 | T27 | 60 | – | 24 | – | 5 |
| KG3/8-T30 | 221713 | T30 | 60 | – | 24 | – | 5 |
| KG3/8-T40 | 221714 | T40 | 60 | – | 24 | – | 5 |
| KG3/8-T45 | 221715 | T45 | 60 | – | 24 | – | 5 |
| KG3/8-T47 | 221716 | T47 | 60 | – | 24 | – | 5 |
| KG3/8-T50 | 221717 | T50 | 60 | – | 24 | – | 5 |
| KG3/8-T55 | 221718 | T55 | 60 | – | 24 | – | 5 |
All specifications without guarantee, errors and omissions excepted.
