Industrial Tools
Torque Systems

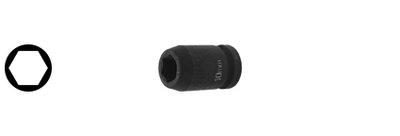

Hexagon

Standard - extra short

Model Item No. A/F L mm D1
mm
D2 mm D mm PU
K3/8-8-EK 220010 8 22 13,8 19 6,5 5
K3/8-10-EK 220011 10 22 16,4 19 6,5 5
K3/8-11-EK 220012 11 22 17,7 19 7,5 5
K3/8-12-EK 220013 12 22 19 19 7,5 5
K3/8-13-EK 220014 13 22 20,2 22 8 5
K3/8-14-EK 220015 14 22 21,5 22 9 5
K3/8-15-EK 220016 15 25 22,9 22 9,5 5
K3/8-16-EK 220017 16 25 24,3 22 9,5 5
K3/8-17-EK 220018 17 25 25,4 22 9,5 5
K3/8-18-EK 220019 18 25 26,6 22 10 5

Standard - short

Model Item No. A/F L mm D1
mm
D2 mm D mm PU
K3/8-6 220050 6 30 11,0 19 4,0 5
K3/8-7 220051 7 30 12,5 19 8,0 5
K3/8-8 220052 8 30 14,0 19 8,0 5
K3/8-9 220053 9 30 15,0 19 8,0 5
K3/8-10 220054 10 30 16,0 19 8,0 5
K3/8-11 220055 11 30 17,5 19 9,0 5
K3/8-12 220056 12 30 19,0 19 9,0 5
K3/8-13 220057 13 30 20,0 22 9,0 5
K3/8-14 220058 14 30 21,0 22 9,0 5
K3/8-15 220059 15 30 22,0 22 11,0 5
K3/8-16 220060 16 30 24,0 22 11,0 5
K3/8-17 220061 17 30 25,0 22 11,0 5
K3/8-18 220062 18 30 26,0 22 11,0 5
K3/8-19 220063 19 30 27,5 22 11,0 5
K3/8-20 220064 20 30 28,0 22 12,0 5
K3/8-21 220065 21 30 30,0 22 13,0 5
K3/8-22 220066 22 30 32,0 23 13,0 5
K3/8-24 220067 24 30 34,0 23 13,0 5
Model Item No. A/F
inch
L mm D1
mm
D2 mm D mm PU
K3/8-5/16 220080 5/16 30 12,5 19 8,0 5
K3/8-3/8 220081 3/8 30 14,5 19 8,0 5
K3/8-7/16 220082 7/16 30 17,0 19 9,0 5
K3/8-1/2 220083 1/2 30 19,0 22 9,0 5
K3/8-9/16 220084 9/16 30 20,0 20 9,0 5
K3/8-5/8 220085 5/8 30 24,0 24 11,0 5
K3/8-11/16 220086 11/16 30 24,0 24 11,0 5
K3/8-3/4 220087 3/4 30 26,0 26 11,0 5
K3/8-13/16 220088 13/16 30 28,0 28 13,0 5
K3/8-7/8 220089 7/8 30 30,0 30 13,0 5
K3/8-15/16 220090 15/16 30 34,0 34 13,0 5

Standard - long

Model Item No. A/F L mm D1
mm
D2 mm D mm PU
K3/8-7-L 220210 7 65 12,5 19 12 5
K3/8-8-L 220211 8 65 13,8 19 12 5
K3/8-9-L 220212 9 65 15 19 12 5
K3/8-10-L 220213 10 65 16 19 12 5
K3/8-11-L 220214 11 65 17,5 19 25 5
K3/8-12-L 220215 12 65 19 19 25 5
K3/8-13-L 220216 13 65 20 22 25 5
K3/8-14-L 220217 14 65 21 22 25 5
K3/8-15-L 220218 15 65 22 22 25 5
K3/8-16-L 220219 16 65 24 22 25 5
K3/8-17-L 220220 17 65 25 22 25 5
K3/8-18-L 220221 18 65 26 22 25 5
K3/8-19-L 220222 19 65 27,5 22 25 5
K3/8-20-L 220223 20 65 28 22 25 5
K3/8-21-L 220224 21 65 30 22 25 5
K3/8-22-L 220225 22 65 32 23 25 5

Standard - extra long

Model Item No. A/F L mm D1
mm
D2 mm D mm PU
K3/8-6-150 220310 6 150 11,5 22 4
K3/8-8-150 220311 8 150 12,5 22 8
K3/8-10-150 220312 10 150 15,5 22 8
K3/8-12-150 220313 12 150 18 22 9
K3/8-13-150 220314 13 150 19,5 22 9
K3/8-14-150 220315 14 150 20,5 22 9
K3/8-15-150 220316 15 150 21 22 11
K3/8-16-150 220317 16 150 22,5 22 11
K3/8-17-150 220318 17 150 24 22 11
Model Item No. A/F L mm D1
mm
D2 mm D mm PU
K3/8-6-200 220350 6 200 11,5 22 4
K3/8-8-200 220351 8 200 12,5 22 8
K3/8-10-200 220352 10 200 15,5 22 8
K3/8-12-200 220353 12 200 18 22 9
K3/8-13-200 220354 13 200 19,5 22 9
K3/8-14-200 220355 14 200 20,5 22 9
K3/8-15-200 220356 15 200 21 22 11
K3/8-16-200 220357 16 200 22,5 22 11
K3/8-17-200 220358 17 200 24 22 11
Model Item No. A/F L mm D1
mm
D2 mm D mm PU
K3/8-6-250 220410 6 250 11,5 22 4
K3/8-8-250 220411 8 250 12,5 22 8
K3/8-10-250 220412 10 250 15,5 22 8
K3/8-12-250 220413 12 250 18 22 9
K3/8-13-250 220414 13 250 19,5 22 9
K3/8-14-250 220415 14 250 20,5 22 9
K3/8-15-250 220416 15 250 21 22 11
K3/8-16-250 220417 16 250 22,5 22 11
K3/8-17-250 220418 17 250 24 22 11
Thin-walled - short
Model Item No. A/F L mm D1
mm
D2 mm D mm PU
KG3/8-8-DW 220950 8 34 11,8 17,3 5 5
KG3/8-9-DW 220951 9 34 13,3 17,3 6 5
KG3/8-10-DW 220952 10 34 14,5 17,3 6 5
KG3/8-11-DW 220953 11 34 15,7 17,3 7 5
KG3/8-12-DW 220954 12 34 16,8 17,3 8 5
KG3/8-13-DW 220955 13 34 18 17,3 10 5
KG3/8-14-DW 220956 14 34 20 18 10 5
KG3/8-15-DW 220957 15 34 21 20 10 5
KG3/8-16-DW 220958 16 34 22,4 22 10 5
KG3/8-17-DW 220959 17 34 23,6 22 10 5
KG3/8-18-DW 220960 18 34 24 22 12 5
KG3/8-19-DW 220961 19 34 26 24 12 5
Thin-walled - long
Model Item No. A/F L mm D1
mm
D2 mm D mm PU
K3/8-7-DWL 221010 7 65 11,5 19 12 5
K3/8-8-DWL 221011 8 65 12,5 19 12 5
K3/8-9-DWL 221012 9 65 14 19 12 5
K3/8-10-DWL 221013 10 65 15 19 25 5
K3/8-11-DWL 221014 11 65 17 19 25 5
K3/8-12-DWL 221015 12 65 17,5 19 25 5
K3/8-13-DWL 221016 13 65 19 19 25 5
K3/8-14-DWL 221017 14 65 20 20 25 5
K3/8-15-DWL 221018 15 65 21 22 25 5
K3/8-16-DWL 221019 16 65 22,5 22 25 5
K3/8-17-DWL 221020 17 65 24 22 25 5
K3/8-18-DWL 221021 18 65 25 22 25 5
K3/8-19-DWL 221022 19 65 26 22 25 5
K3/8-20-DWL 221023 20 65 27 22 25 5
K3/8-21-DWL 221024 21 65 28 22 25 5
K3/8-22-DWL 221025 22 65 30 23 25 5
All specifications without guarantee, errors and omissions excepted.
