Industrial Tools
Torque Systems

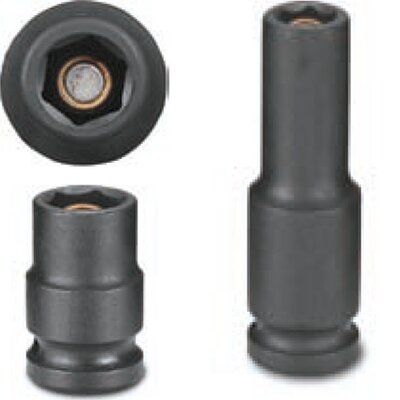

Hexagon

Standard - short - with magnet

Model Item No. A/F L mm D1
mm
D2 mm D mm PU
KM3/8-6 220110 6 30 11,5 19 3,0 5
KM3/8-7 220111 7 30 12,5 19 3,0 5
KM3/8-8 220112 8 30 14,0 19 3,0 5
KM3/8-9 220113 9 30 15,0 19 4,0 5
KM3/8-10 220114 10 30 16,5 19 4,0 5
KM3/8-11 220115 11 30 17,5 19 5,0 5
KM3/8-12 220116 12 30 19,0 19 5,0 5
KM3/8-13 220117 13 30 20,0 22 5,0 5
KM3/8-14 220118 14 30 21,5 22 6,0 5
KM3/8-15 220119 15 30 22,0 22 6,0 5
KM3/8-16 220120 16 30 24,0 22 6,0 5
KM3/8-17 220121 17 30 25,0 22 6,0 5
KM3/8-18 220122 18 30 26,0 22 7,0 5
KM3/8-19 220123 19 30 27,5 22 7,0 5
Model Item No. A/F
inch
L mm D1
mm
D2 mm D mm PU
KM3/8-5/16 220150 5/16 34 13,8 19 3,5 5
KM3/8-3/8 220151 3/8 34 16,4 19 3,5 5
KM3/8-1/2 220152 1/2 34 20,2 22 6,0 5

Standard - long - with magnet

Model Item No. A/F L mm D1
mm
D2 mm D mm PU
KM3/8-6-L 220250 6 55 11,5 19 3 5
KM3/8-7-L 220251 7 55 12,5 19 3 5
KM3/8-8-L 220252 8 55 14 19 3 5
KM3/8-9-L 220253 9 55 15 19 4 5
KM3/8-10-L 220254 10 55 16,5 19 4 5
KM3/8-11-L 220255 11 55 17,5 19 5 5
KM3/8-12-L 220256 12 55 19 19 5 5
KM3/8-13-L 220257 13 55 20 22 5 5
KM3/8-14-L 220258 14 55 21,5 22 6 5
KM3/8-15-L 220259 15 55 22 22 6 5
KM3/8-16-L 220260 16 55 24 22 6 5
KM3/8-17-L 220261 17 55 25 22 6 5
KM3/8-18-L 220262 18 55 26 22 7 5
KM3/8-19-L 220263 19 55 27,5 22 7 5
All specifications without guarantee, errors and omissions excepted.
