1/4" Drive DIN 3121 G 6.3
" srcset="" sizes="100vw" />
Images
" srcset="/files/thumbs/images/product/steckschluessel/k38-gelenk-v3-x400.png.jpg 110w" sizes="(min-width: 0px) 109px, 100vw" />
" srcset="" sizes="100vw" />
Downloads

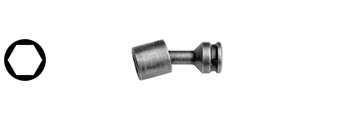

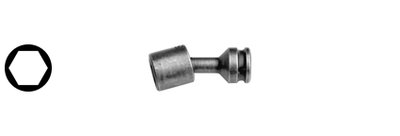

Hexagon - with joint
1/4" Drive DIN 3121 G 6.3
| Model | Item No | A/F mm |
L mm |
D1 mm |
D2 mm |
D mm |
PU |
|---|---|---|---|---|---|---|---|
| KG1/4-5 | 210550 | 5 | 43 | 8,8 | 15 | 5 | 5 |
| KG1/4-5.5 | 210551 | 5,5 | 43 | 9,5 | 15 | 6 | 5 |
| KG1/4-6 | 210552 | 6 | 43 | 10 | 15 | 6 | 5 |
| KG1/4-7 | 210553 | 7 | 43 | 11,5 | 15 | 8 | 5 |
| KG1/4-8 | 210554 | 8 | 43 | 12,5 | 15 | 8 | 5 |
| KG1/4-9 | 210555 | 9 | 43 | 14 | 15 | 8 | 5 |
| KG1/4-10 | 210556 | 10 | 43 | 15 | 15 | 8 | 5 |
| KG1/4-11 | 210557 | 11 | 43 | 16,5 | 15 | 8 | 5 |
| KG1/4-12 | 210558 | 12 | 48 | 16,8 | 16 | 8 | 5 |
| KG1/4-13 | 210559 | 13 | 48 | 18,8 | 16 | 8 | 5 |
| KG1/4-14 | 210560 | 14 | 48 | 19,8 | 16 | 8 | 5 |
| KG1/4-15 | 210561 | 15 | 48 | 20,8 | 16 | 8 | 5 |
All specifications without guarantee, errors and omissions excepted.
