Holder and interchangeable inserts
Hexagon Insert 7/16" (11.1 mm)
| Model | Item No. | A/F | L mm | D1 mm |
D2 mm | D mm | PU |
|---|---|---|---|---|---|---|---|

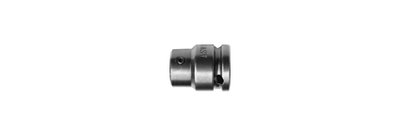

| K1/2-AWE7/16 | 231350 | 41090 | 38 | 25 | 30 | – | – |
| Model | Item No. | A/F | L mm | D1 mm |
D2 mm | D mm | PU |
|---|---|---|---|---|---|---|---|

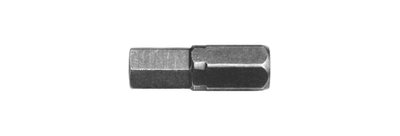

| AWE 7/16-5 | 231410 | 5 | 35 | – | – | – | 5 |
| AWE 7/16-6 | 231411 | 6 | 35 | – | – | – | 5 |
| AWE 7/16-8 | 231412 | 8 | 35 | – | – | – | 5 |
| AWE 7/16-10 | 231413 | 10 | 35 | – | – | – | 5 |
| AWE 7/16-12 | 231414 | 12 | 35 | – | – | – | 5 |
| AWE 7/16-14 | 231415 | 14 | 35 | – | – | – | 5 |
| AWE 7/16-17 | 231416 | 17 | 35 | – | – | – | 5 |
All specifications without guarantee, errors and omissions excepted.
