Industrial Tools
Torque Systems

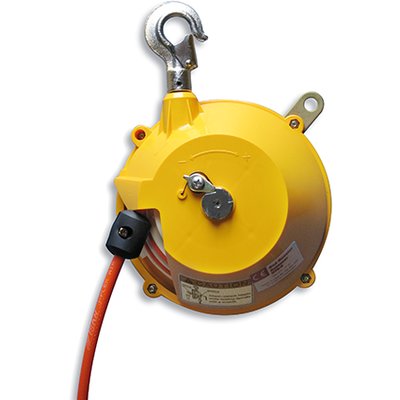

Air Tool Balancers

Capacities from 0.5 upto 5.0 kg

The 'ENDO' range of hose reel balancers gather the ability of both hose reel and spring balancer. Using this balancer type would make work places simplier. It is suitable for hanging the air tool or the like, and the hose is arranged in order.

Instead of the cable of balancer, its hose is wound. Air tools can be easily moved up and down.



Features

  • Casing and drums are made of acrylonitrilebutadiene-styrene resin and they are light-weight.
  • Air hose is made of urethane.
  • Diameter of hose nipple is 9 mm at inlet portion and swivel joint size RC 1/4 at outlet portion.



Optional Accessories

  • Protect wire set
Type HTB
Model Item No. Capacity
kg
Travel
m
Weight
kg
Inner Hose Diam.
mm
Air
Cons.
l/min
Pipe
Thread
Inch
HTB-0 360885 0.5 - 1.5 1.3 1.58 6.35 700 PT 1/4
HTB-1 360888 1.5 - 3.0 1.3 1.66 6.35 700 PT 1/4
HTB-2 360889 3.0 - 5.0 1.3 1.73 6.35 700 PT 1/4
All specifications without guarantee, errors and omissions excepted.
