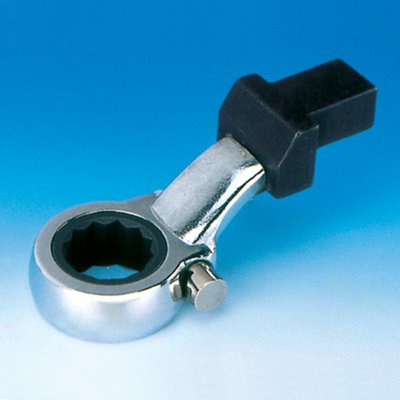

S14 - Ring Ratchet (12P)
S14 - Ring Ratchet (12P)
Ring Ratchet (SW-R)
Ring Ratchet (SW-R)
S14 - Ring Ratchet (12P)Ring Ratchet (SW-R)
Downloads
S14 - Ring Ratchet (12P)

Features

Centre Line: miscellaneous
  • Rectangle insert 14×18 mm
  • Double hex point force transmission
  • R/L reversible via slide pin
  • Centre line due to model
  • Forged alloy steel, partially chrome plated
S14-SWR

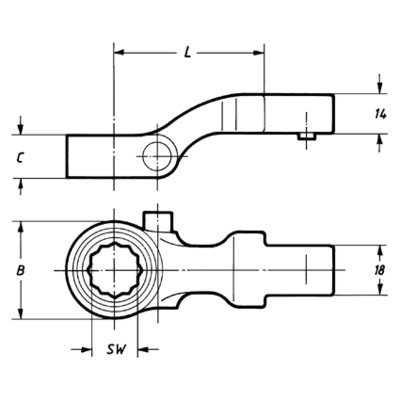

Model Item No. A/F
mm		 Max. Torque
N·m		 L
mm		 B
mm		 C
mm		 D
mm		 E
mm
S14-SW-17R R712471 17 61 52 36 15 14 18
S14-SW-19R R712472 19 103 53 38 16 14 18
S14-SW-22R R712473 22 167 55 42 17 14 18
S14-SW-24R R712474 24 210 58 46 18 14 18
S14-SW-27R R712475 27 270 60 50 18 14 18
S14-SW-30R R712476 30 320 98.2 54 20 14 18
S14-SW-32R R712477 32 350 98.2 56 20 14 18
All specifications without guarantee, errors and omissions excepted.
