S9 - Flare Nut
S9 - Flare Nut
Images
Downloads
Features
Centre Line: 17.5 mm
- Rectangle insert 9×12 mm
- Five point force transmission
- Centre line 17.5 mm
- Forged alloy steel, chrome plated

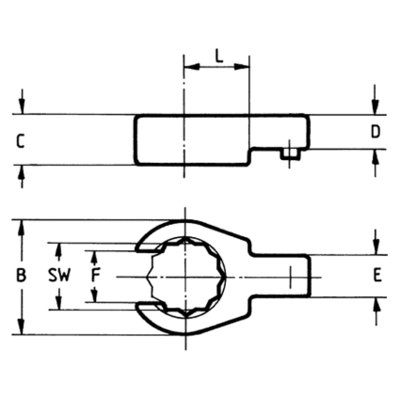

S9-FN
| Model | Item No. | A/F mm |
L mm |
B mm |
C mm |
D mm |
E mm |
F mm |
Weight kg |
|---|---|---|---|---|---|---|---|---|---|
| S9-FN-10 | R716101 | 10 | 17,5 | 21 | 12 | 9 | 12 | 7 | - |
| S9-FN-11 | R716102 | 11 | 17,5 | 23 | 12 | 9 | 12 | 9 | - |
| S9-FN-12 | R716103 | 12 | 17,5 | 24 | 12 | 9 | 12 | 9 | - |
| S9-FN-13 | R716104 | 13 | 17,5 | 24 | 12 | 9 | 12 | 10 | - |
| S9-FN-14 | R716105 | 14 | 17,5 | 25 | 13 | 9 | 12 | 11 | - |
| S9-FN-17 | R716108 | 17 | 17,5 | 32 | 13 | 9 | 12 | 14 | - |
| S9-FN-18 | R716109 | 18 | 17,5 | 33 | 15 | 9 | 12 | 15 | - |
| S9-FN-19 | R716110 | 19 | 17,5 | 35 | 15 | 9 | 12 | 16 | - |
| S9-FN-22 | R716111 | 22 | 17,5 | 39 | 15 | 9 | 12 | 17 | - |
| S9-FN-24 | R716113 | 24 | 17,5 | 42 | 15 | 9 | 12 | 18 | - |
All specifications without guarantee, errors and omissions excepted.
