Industrial Tools
Torque Systems

Features

Centre Line: 17.5 mm
  • Fixed male hex drive
  • Rectangle insert 9×12 mm
  • Centre line 17.5 mm
  • Forged alloy steel, partially chrome plated
S9-HD

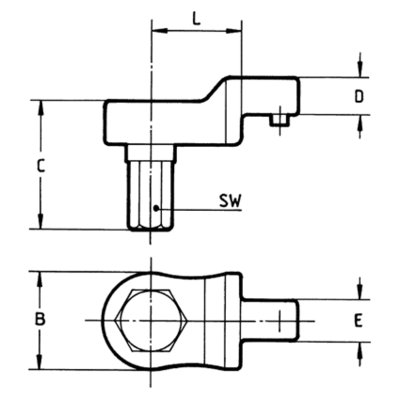

Model Item No. A/F
mm
Max. Torque
N·m
L
mm
B
mm
C
mm
D
mm
E
mm
S9-HD- 3 R716160 3 25 17.5 16 25 9 12
S9-HD- 4 R716161 4 25 17.5 16 25 9 12
S9-HD- 5 R716162 5 25 17.5 16 25 9 12
S9-HD- 6 R716163 6 25 17.5 16 25 9 12
S9-HD- 7 R716167 7 40 17.5 16 29 9 12
S9-HD- 8 R716164 8 40 17.5 16 29 9 12
S9-HD-10 R716165 10 40 17.5 16 29 9 12
All specifications without guarantee, errors and omissions excepted.
