Our ProductsTorque Application ToolsInterchangeable HeadsRectangle (DIN)Open EndS9/S14 - Open End
Images

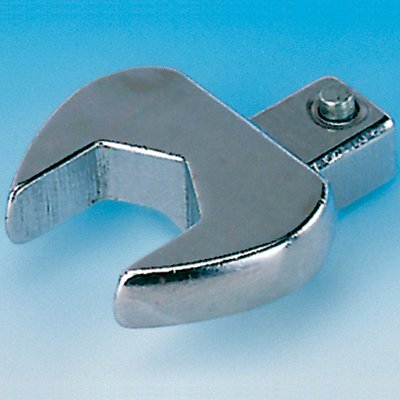

S9/S14 - Open End
S9/S14 - Open End
S9/S14 - Open End
S9/S14 - Open End
S9/S14 - Open EndS9/S14 - Open End
Downloads
S9/S14 - Open End

S9/S14 - Open End

Centre Line: miscellaneous

Features



  • Rectangle insert 9×12 mm rsp. 14×18 mm
  • Centre line 17.5 mm rsp. 25 mm
  • Forged alloy steel, chrome plated
S9-OE

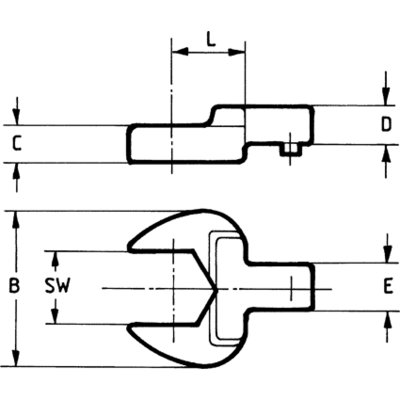

Model Item No. A/F
mm		 L
mm		 B
mm		 C
mm		 D
mm		 E
mm		 Weight
kg
S9 OE 7 R716050 7 17.5 22 5 9 12 0.038
S9 OE 8 R716051 8 17.5 22 5 9 12 0.037
S9 OE 9 R716052 9 17.5 26 5.5 9 12 0.039
S9 OE 10 R716053 10 17.5 26 5.5 9 12 0.040
S9 OE 11 R716054 11 17.5 26 5.5 9 12 0.039
S9 OE 12 R716055 12 17.5 30 7 9 12 0.045
S9 OE 13 R716056 13 17.5 30 7 9 12 0.045
S9 OE 14 R716057 14 17.5 35 8 9 12 0.050
S9 OE 15 R716058 15 17.5 35 8 9 12 0.048
S9 OE 16 R716059 16 17.5 38 8.5 9 12 0.063
S9 OE 17 R716060 17 17.5 38 8.5 9 12 0.063
S9 OE 18 R716061 18 17.5 42 9 9 12 0.075
S9 OE 19 R716062 19 17.5 42 9 9 12 0.073
S14-OE
Model Item No. A/F
mm		 L
mm		 B
mm		 C
mm		 D
mm		 E
mm		 Weight
kg
S14 OE 13 R716556 13 25 30 7 14 18 0.125
S14 OE 14 R716557 14 25 35 8 14 18 0.131
S14 OE 15 R716558 15 25 35 8 14 18 0.128
S14 OE 16 R716559 16 25 38 9 14 18 0.135
S14 OE 17 R716560 17 25 38 9 14 18 0.134
S14 OE 18 R716561 18 25 42 10 14 18 0.144
S14 OE 19 R716562 19 25 42 10 14 18 0.142
S14 OE 21 R716564 21 25 50 11 14 18 0.168
S14 OE 22 R716565 22 25 50 11 14 18 0.167
S14 OE 24 R716566 24 25 53 12 14 18 0.183
S14 OE 27 R716567 27 25 60 13 14 18 0.223
S14 OE 30 R716568 30 25 66 14 14 18 0.252
S14 OE 32 R716569 32 25 66 14 14 18 0.146
All specifications without guarantee, errors and omissions excepted.
