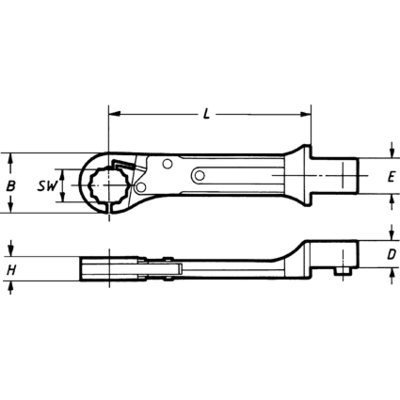

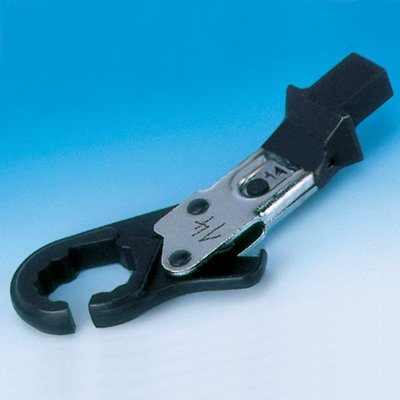

Centre Line: miscellaneous
  • Rectangle insert 9×12 mm rsp. 14×18 mm
  • Double hex point force transmission
  • Centre line due to model
  • Forged alloy steel, partially chrome plated
S9-FM
Model Item No. A/F
mm
Max. Torque
N·m
L
mm
B
mm
H
mm
D
mm
E
mm
S9-199FM-10 R712498 10 27 70 22 7.2 9 12
S9-199FM-11 R712499 11 27 70 23.5 7.2 9 12
S9-199FM-12 R712539 12 30 70 24.5 7.2 9 12
S9-199FM-13 R712500 13 32 70 24.5 7.2 9 12
S9-199FM-14 R712501 14 35 70 24.5 7.2 9 12
S9-199FM-16 R712502 16 40 70 31.5 9.5 9 12
S9-199FM-17 R712503 17 85 70 31.5 9.5 9 12
S9-199FM-18 R712504 18 90 70 33.5 9.5 9 12
S9-199FM-19 R712505 19 100 70 33.5 9.5 9 12
S9-199FM-22 R712506 22 130 70 40 13 9 12
S9-199FM-24 R712552 24 170 100 49.5 13 9 12
S14-FM
Model Item No. A/F
mm
Max. Torque
N·m
L
mm
B
mm
H
mm
D
mm
E
mm
S14-199FM-14 R712508 14 35 70 24.5 7.5 14 18
S14-199FM-16 R712509 16 40 70 31.5 8.5 14 18
S14-199FM-17 R712510 17 85 75 31.5 9.5 14 18
S14-199FM-18 R712511 18 90 75 33.5 9.5 14 18
S14-199FM-19 R712512 19 100 75 33.5 9.5 14 18
S14-199FM-22 R712513 22 130 75 40 13 14 18
S14-199FM-24 R712514 24 145 85 43 14 14 18
S14-199FM-27 R712515 27 170 100 49.9 15.5 14 18
All specifications without guarantee, errors and omissions excepted.
