Features
Centre Line: miscellaneous
- Rectangle insert 9×12 mm rsp. 14×18 mm
- Fixed male square drive
- Centre line 17.5 mm rsp. 25 mm
- Forged alloy steel, chrome plated

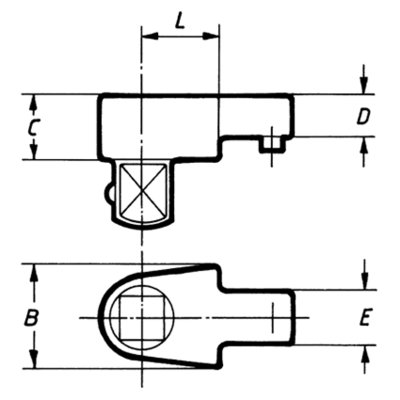

S9-SD
| Model | Item No. | Sq.drv Inch |
Max. Torque N·m |
L mm |
B mm |
C mm |
D mm |
E mm |
|---|---|---|---|---|---|---|---|---|
| S9-SD-1/4 | R716257 | 1/4 | 25 | 17.5 | 22 | 14 | 9 | 12 |
| S9-SD-3/8 | R716258 | 3/8 | 90 | 17.5 | 22 | 14 | 9 | 12 |
| S9-SD-1/2 | R716259 | 1/2 | 100 | 17.5 | 22 | 14 | 9 | 12 |
S14-SD
| Model | Item No. | Sq.drv Inch |
Max. Torque N·m |
L mm |
B mm |
C mm |
D mm |
E mm |
|---|---|---|---|---|---|---|---|---|
| S14-SD-1/2 | R716759 | 1/2 | 250 | 25 | 30 | 18 | 14 | 18 |
| S14-SD-3/4 | R716760 | 3/4 | 300 | 25 | 40 | 25 | 14 | 18 |
All specifications without guarantee, errors and omissions excepted.
