S9/S14 - Square Drive Ratchet
S9/S14 - Square Drive Ratchet
Images
Downloads
Features
Centre Line: miscellaneous
- Square drive acc. DIN 3120A
- Right/Left reversible
- Rectangle insert 9×12 mm rsp. 14×18 mm
- Centre line due to model
- Forged alloy steel, partially chrome plated

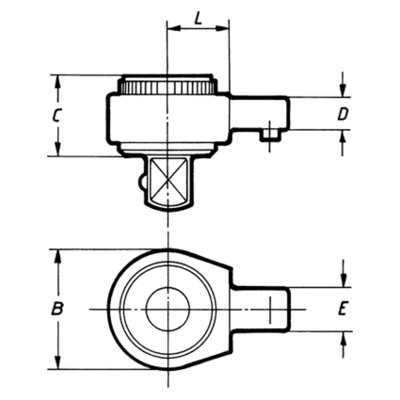

S9-SDRT
| Model | Item No. | Sq.drv Inch |
Max. Torque N·m |
L mm |
B mm |
C mm |
D mm |
E mm |
|---|---|---|---|---|---|---|---|---|
| S9-SDRT-1/4 | R716222 | 1/4 | 25 | 20 | 22 | 12.5 | 9 | 12 |
| S9-SDRT-3/8 | R716223 | 3/8 | 80 | 17.5 | 33 | 22 | 9 | 12 |
| S9-SDRT-1/2 | R716224 | 1/2 | 100 | 17.5 | 33 | 22 | 9 | 12 |
S14-SDRT
| Model | Item No. | Sq.drv Inch |
Max. Torque N·m |
L mm |
B mm |
C mm |
D mm |
E mm |
|---|---|---|---|---|---|---|---|---|
| S14-SDRT-1/2 | R716724 | 1/2 | 250 | 25 | 43 | 24 | 14 | 18 |
| S14-SDRT-3/4 | R716725 | 3/4 | 300 | 25 | 50 | 32 | 14 | 18 |
All specifications without guarantee, errors and omissions excepted.
