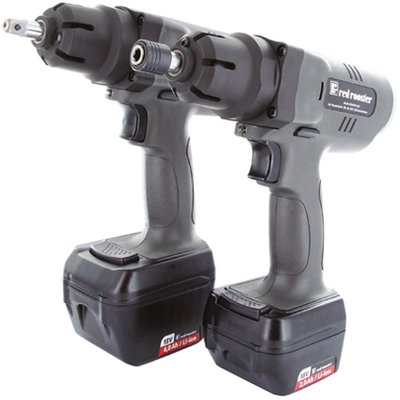

Red Rooster Series BIM-T Battery Impulse Wrench with controlled Shut-Off

Capacity 15 / 25 / 35 / 45 / 65 Nm

Battery Impulse Wrench with controlled Shut-Off

High tightening speed combined with good accuracy. No reaction forces during the tightening process. Brushless motor for long motor life and high efficiency. No tightening functionality when battery charge is low, thus process safety improves. Very well suited in areas where cables and hoses impede handling flexibility of tools, such as interiors of cars, coaches and trains.

The high performance lithium ion battery is pushed in horizontally and secured by a clip lock against slipping out. At too low battery level the tool will immediately stop to ensure process reliability.

Applying reaction-free Yokota impulse wrenches at the assembly line also reduces the RSI risk significantly. The one hand operable YBX-T generates low vibration and low noise levels. A diode light facilitates finding of the screw and/or nut.



Key Features

  • Accurate torque with close tolerance
  • High repeatability
  • No kickback
  • High speed – increased productivity
  • Non-contact trigger with 2 steps
  • LED indication of OK/NOK, reverse (ccw), battery low
  • Brushless DC motor
  • Fine-tuning on hardness of the joint, electronically
  • One hand operation



Shipping List

  • Impulse Tool (without battery)
  • Operating Manual



Optional Accessories

  • 18V Li-Ion Battery 2 Ah (300-350 cycles) or 4 Ah (700-750 cycles)
  • Charger (ca. 40 min.)
  • Power Cord for Charger (EU or UK)
  • Protection Cover (pistol)
  • Protection Cover (battery)
  • Aluminium Display Cap
  • Setup Console for programming of speed, counter etc.
BIM-T series
 Model Item No. SqDrv
inch
HxDrv
inch
Torque Range
N·m
Free Speed
1/min
Weight
kg
RRI-BIM15AT 520460 1/4 7 - 15 4500 1.16
RRI-BIM25AT 520464 1/4 14 - 23 4500 1.18
RRI-BIM15T 520462 3/8 8 - 15 4500 1.16
RRI-BIM25T 520466 3/8 15 - 25 4500 1.18
RRI-BIM35T 520468 3/8 22 - 35 3500 1.36
RRI-BIM45T 520470 3/8 32 - 45 3500 1.42
RRI-BIM65T 520472 1/2 45 - 65 3200 1.9
All specifications without guarantee, errors and omissions excepted.
