Industrial Tools
Torque Systems

Yokota Series YBX-T

Kapazität 20 / 35 Nm

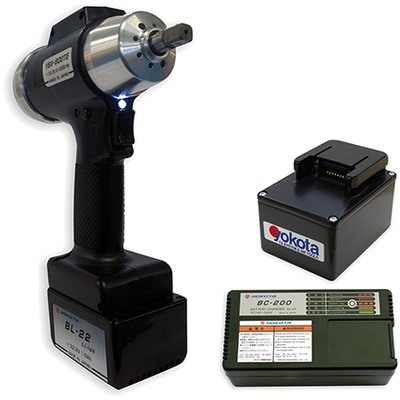

EC Battery Impulse Wrench for Error-Proof Productivity

Yokota‘s battery impulse wrench YBX-T with the patented twin-blade impulse mechanism calculates the shut-off over several impulses and controls it electronically. An integrated angle encoder provides improved repeatability and closer torque tolerances. Group monitoring is enabled by a programmable counting function. An activateable diode light facilitates finding of the screw and/or nut.

An innovative brushless DC motor permits maintenance-free operation. The number of revolutions is adjustable in 2 steps, the third step is firmly given. The high performance lithium ion battery is pushed in horizontally and secured by a clip lock against slipping out. The temperature is permanently supervised and a warning is signalled if necessary. For better heat dissipation a ventilator is implemented.

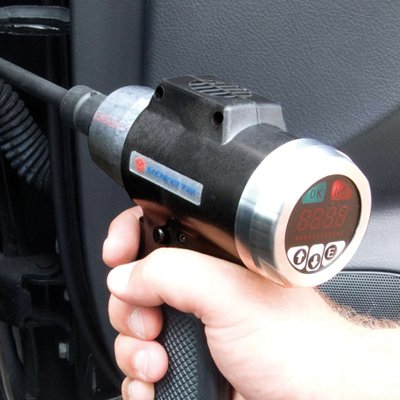

The compact and light construction accompanies with ergonomically optimized weight balance. The one hand operable YBX-T generates low vibration and low noise levels. Applying reaction-free Yokota impulse wrenches at the assembly line also reduces the RSI risk significantly.



Key Features

  • Yokota’s patented Twin Blade Impulse Mechanism.
  • Electronically controlled shut-off with definable parameters.
  • Counting function for group monitoring.

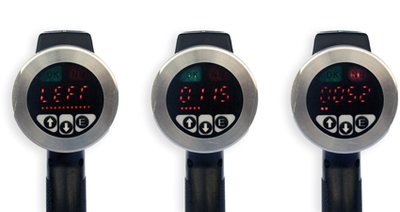

  • Both visible and audible status indication for OK or NG.
  • Rotation speed adjustable in two steps, third step is fixed.
  • One-hand operation.
  • Low vibration and noise levels.
  • High-performance Lithium-Ion battery BL (22.2 V / 1.5 Ah).
  • Maintenance-free brushless DC Motor.
  • Temperature monitoring with alarm.
  • Cooling fan for heat dissipation.
  • Additional LED facilitates finding the nut or screw.
  • Password protection against non-authorized parameter change.
Series YBX-T
Model * Sq.drv
Inch
Torque
range
N·m
Free
Speed
1/min
Bolt
Capacity
mm
Weight
kg
Length
mm
Centr.
dist.
mm
Vibration
m/s²
Noise
Level
dB(A)
YBX-600TE SET 3/8 8 - 20 2000 M6 1.50 169 37 2.5 77
YBX-600TE 3/8 8 - 20 2000 M6 1.50 169 37 2.5 77
YBX-800TE SET 3/8 18 - 35 2000 M8 1.55 173 37 2.5 78
YBX-800TE 3/8 18 - 35 2000 M8 1.55 173 37 2.5 78
*) Type "SET" are shipped incl. battery + charger.
