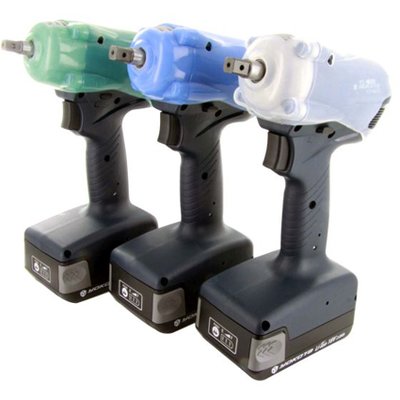

Yokota Series YZ-N

Capacity 20 / 35 / 50 / 60 Nm

Non-Shut-Off Battery Impulse Wrench

YOKOTA battery impulse wrenches are powerful, very accurate and most important, have no kick-back. The very compact design offers great accessibility to the joint. Tightening bolts M6 up to M10 with torque levels up to 65 Nm with very high speed and remarkably low reaction forces. The combination of adjustment of the relief valve and speed setting of the motor gives a great fit-for-purpose adaptation to the specific bolted joint.

YZ-N impulse wrench is light weight, well balanced, and has a brushless DC motor. It allows 4 rpm settings (2000/3000/4000/4800) to be set according to application/joint conditions. No planet gear between motor and impulse unit resulting in extremely low vibration and low noise.

Available Li-ion battery 18 V / 2.0 Ah provides LED capacity indicator and no memory-effect. LED indication appears on overheat error, motor/driver error, and low battery capacity.

Applying reaction-free Yokota impulse wrenches at the assembly line reduces the RSI risk significantly.



Key Features

  • Brushless DC motor
  • High accuracy
  • Error LED indication
  • Light weight
  • Low vibration, low noise



Shipping List

  • Impulse Wrench YZ-N
  • Operating Manual



Optional Accs

  • Protection cover
  • Li-ion battery BPL-1820
  • Charger BC0075G
YZ-N series
 Model * SqDrv
inch
HxDrv
inch
Torque Range
N·m
Free Speed
1/min
Weight
kg
Vibration
m/s²
Noise Level
dB(A)
YZ-N600A 1/4 7 - 18 2000 - 4800 1.0 2.5 72
YZ-N800A 1/4 15 - 30 2000 - 4800 1.05 2.5 75
YZ-N600 3/8 9 - 20 2000 - 4800 1.0 2.5 72
YZ-N800 3/8 18 - 35 2000 - 4800 1.05 2.5 75
YZ-N900 3/8 34 - 50 2000 - 4800 1.2 2.5 77
YZ-N950 3/8 45 - 60 2000 - 4800 1.25 2.5 78
All specifications without guarantee, errors and omissions excepted.
