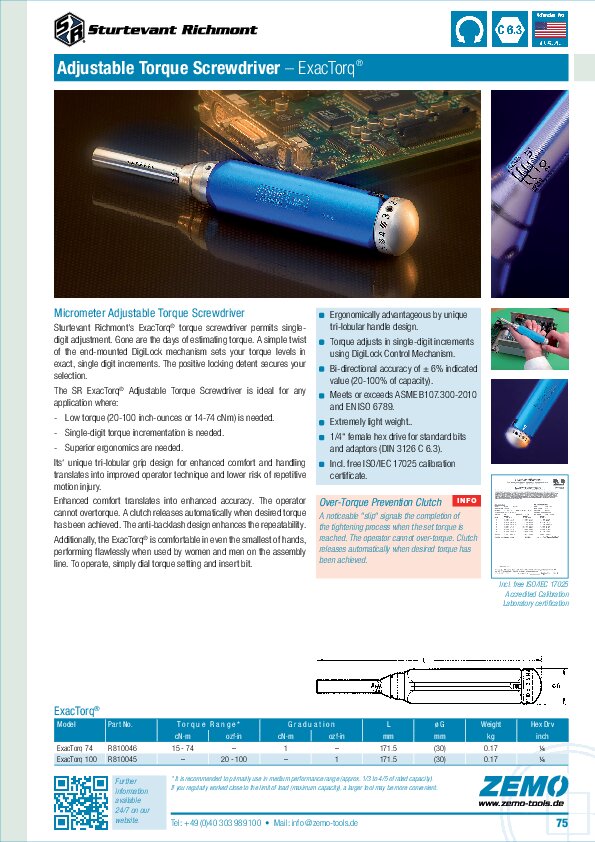

Sturtevant Richmont ExacTorq

Capacity 74 cNm // 100 ozfin

Micrometer Adjustable Torque Screwdriver

The ExacTorq® torque screwdriver permits single-digit adjustment. Gone are the days of estimating torque. A simple twist of the end-mounted DigiLock mechanism sets your torque levels in exact, single digit increments. The positive locking detent secures your selection. The SR ExacTorq® Adjustable Torque Screwdriver is ideal for any application where:

  • Low torque is needed.
  • Single-digit torque incrementation is needed.
  • Superior ergonomics are needed.



Its‘ unique tri-lobular grip design for enhanced comfort and handling translates into improved operator technique and lower risk of repetitive motion injury. Enhanced comfort translates into enhanced accuracy. The operator cannot overtorque. A clutch releases automatically when desired torque has been achieved. The anti-backlash design enhances the repeatability.



Additionally, the ExacTorq® is comfortable in even the smallest of hands, performing flawlessly when used by women and men on the assembly line. To operate, simply dial torque setting and insert bit.



Key Features

  • Unique tri-lobular handle design.
  • Torque adjusts in single-digit increments using DigiLock Control Mechanism.
  • Bi-directional accuracy of ± 6% indicated value (20-100% of capacity).
  • Meets or exceeds ASME B107.300-2010 and EN ISO 6789.
  • Extremely light weight.
  • 1/4“ female hex drive for standard bits and adaptors (DIN 3126 C 6.3).
  • Incl. free ISO/IEC 17025 calibration certificate.
ExacTorq
Model Item No. Torque Range cN·m Torque Range ozf·in Graduation cN·m Graduation ozf·in Handle diam. mm Weight kg Length mm
ExacTorq 74 R810046 15 - 74 - 1 - 30 0.17 171
ExacTorq 100 R810045 - 20 - 100 - 1 30 0.17 171

The requirements and verification procederes of the DIN EN ISO 6789 are valid for a measuring range from 20% to 100% of the rated capacity (maximum value). The effective span of a torque tool may differently begin lower.

All specifications without guarantee, errors and omissions excepted.
