Sturtevant Richmont IDW

Capacity 30 / 50 / 150 / 300 / 600 lbf·in // 150 / 250 / 600 / 1000 lbf·ft

Industrial Dial Torque Wrench

Sturtevant Richmont (SR) has made some changes to the dial wrench line up. The MD series dial wrenches are now in legacy status. You will immediately see and feel the difference in the new Industrial Dial Wrench (IDW) Series. More than the cosmetic changes of the black oxide powder coat and chromed steel, SR also changed square drive sizes to enhance structural integrity. The new IDW series of dial torque wrenches are ideal for any application where

  • A visible reading of the torque is important
  • A retained measurement of the peak torque is required
  • The user can see the face of the tool when torque is being applied
  • Accuracy better than that of a clicker-type torque wrench is desired
  • The application is non-destructive
  • Rotation torque of an assembly is a specification.



High-precision assembly operations, fastener testing (in-process/final/receiving) operations where prevailing-torque nuts are used, and auditing of fastener or assembly torque are all places where the new IDW Series will make a difference.



A specially-designed extension handle is included on tools of 600 lbf·ft/800 N·m and greater capacity. This provides both greater ergonomic advantage through longer lever length and a short disassembled length for easy storage and transport.



Key Features

  • Accuracy of ± 3% Indicated Value from 20% to 100% of capacity
  • Meets or exceeds ASME B107.300-2010 and EN ISO 6789.

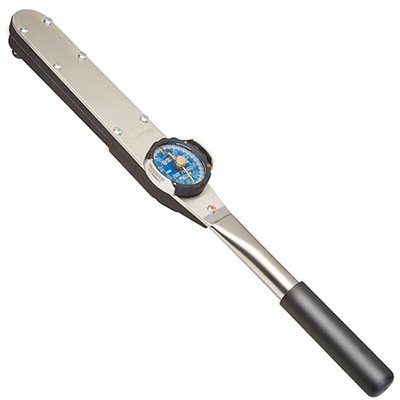

  • Error Proofing By Design: Oversized dial face is extremely easy to read and helps to eliminate parallax error.
  • Error Proofing By Design: A memory indicator is provided on each wrench and remains at the maximum torque achieved for positive torque verification.
  • Heavy duty dial guard protects against breakage.
  • The neoprene rubber grip that comes on tools up to 250 lbf·ft/350 N·m capacity supports proper grip and provides comfort during use.
  • Black oxide powder coat provides industrial strength finish.



Shipping List

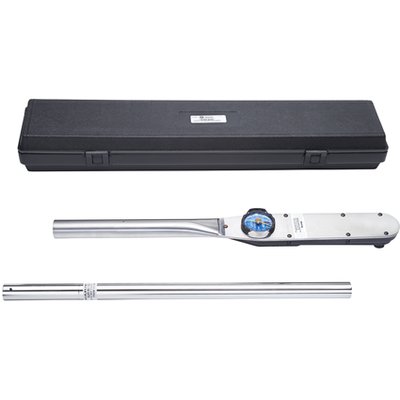

  • Dial torque wrench IDW

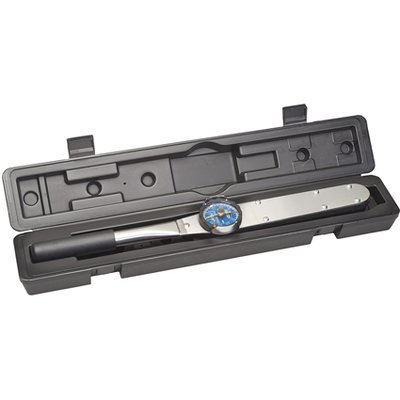

  • Rugged, blow molded, storage case
  • FREE NIST-traceable tabulated certification included.
  • Operating instructions
  • A specially-designed extension handle is included on tools of 600 lbf·ft/800 N·m and greater capacity.
IDW series – Newton Meter
Model Item No. Torque Range N·m Graduation N·m Sq Drv inch Length mm Weight kg
IDW-6 Nm R815720 1.2 - 6 0.25 1/4 261 0.55
IDW-15 Nm R815707 3 - 15 0.25 3/8 261 0.55
IDW-35 Nm R815708 7 - 35 0.5 3/8 261 0.55
IDW-70 Nm R815709 14 - 70 1.0 3/8 312 0.64
IDW-200 Nm R815710 40 - 200 2.5 1/2 528 1.27
IDW-350 Nm R815711 70 - 350 5.0 1/2 528 1.27
IDW-800 Nm R815712 160 - 800 10 3/4 1181 3.40
IDW-1300 Nm R815723 260 - 1300 25 1 1816 7.71
IDW series – Inch Pounds
Model Item No. Torque Range lbf·in Graduation lbf·in Sq Drv inch Length mm Weight kg
IDW-30 I R815700 6 - 30 1 1/4 261 0.55
IDW-50 I R815719 10 - 50 2 1/4 261 0.55
IDW-150 I R815701 30 - 150 2 3/8 261 0.55
IDW-300 I R815702 60 - 300 5 3/8 261 0.55
IDW-600 I R815703 120 - 600 10 3/8 312 0.64
IDW series – Foot Pounds
Model Item No. Torque Range lbf·ft Graduation lbf·ft Sq Drv inch Length mm Weight kg
IDW-150 R815704 30 - 150 2 1/2 529 1.27
IDW-250 R815705 50 - 250 5 1/2 529 1.27
IDW-600 R815706 120 - 600 10 3/4 1181 3.40
IDW-1000 R815722 200 - 1000 10 1 1816 7.71

The requirements and verification procederes of the DIN EN ISO 6789 are valid for a measuring range from 20% to 100% of the rated capacity (maximum value). The effective span of a torque tool may differently begin lower.

All specifications without guarantee, errors and omissions excepted.
