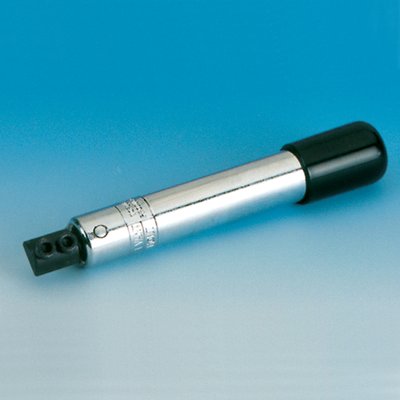

Sturtevant Richmont Mini-Torq

Capacity 50 lbf·in // 5.6 N·m

Preset Clicker Type Torque Wrench



Sturtevant Richmont‘s smallest preset torque wrench delivers consistent assembly quality. Designed for assembly operations where access is limited and low torque capacities are required.



The target torque is steplessly adjustable by means of the included adjusting tool and a torque tester (not included), enhancing assurance that the proper torque is set on the wrench. A tactile impulse and audible click are emitted when the pre-set torque is reached, making it easy for the operator to perform the torque application process properly. The MiniTorq releases in both directions – right and left.



The slender design permits use in limited-access applications where larger tools simply will not work. Light weight and smooth vinyl handle provides good ergonomics. More than two dozens of different interchangeable heads are available as standard. Further sizes and/or special tools are available on request.



Key Features



  • Simple to preset & use clicker torque wrench with interchangeable heads.
  • Accuracy ± 6% of indicated value (within 20-100% of rated capacity).
  • Meets or exceeds ASME B107.300-2010, GGG-W-686E and DIN EN ISO 6789.
  • Audible click and tactile impulse.
  • Oil-proof and chemicals resisting Vinyl handle.
  • Lean design.
  • Light weight.
MiniTorq
Model Item No. Torque Range [lbf·in] Torque Range [N·m] Length [mm] Weight [kg]
MINI-TORQ R810638 1.1 - 5.6 10 - 50 105 0.09

The table shows the torque ranges specified by the manufacturer. Usage in the medium range (approx. 1/3 to 4/5 of rated capacity) is recommended. If you would regularly work close to the load capacity limit, a larger tool may be ergonomically more advantageous.



All technical data without guarantee, errors and omissions excepted.
