Sturtevant Richmont SDR

Capacity 6 / 20 / 50 / 100 / 140 / 200 / 300 / 800 Nm

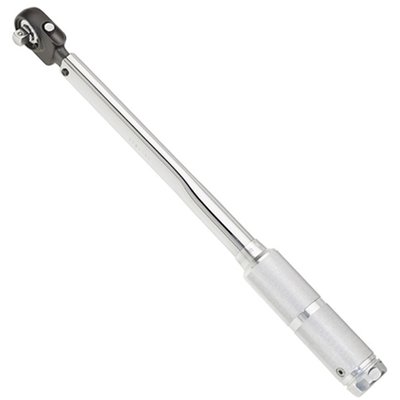

Ratcheting Square Drive Micrometer Adjustable Torque Wrench



SR: "Customers tell us they love these wrenches because they are accurate, reliable, and durable. In designing the new handle we kept all the things that our customers love and added the Knurl Grip aluminum handle. Strong, lightweight, rugged, ergonomic, this handle truly lets you get a grip on torque."



In sync with the Sturtevant Richmont approach to customers you can buy just a retrofit kit and replace the handle yourself or you can buy new wrenches with the new handle already in place. Either way the best accuracy, reliability, and durability is within your grasp.



Micrometer Adjustable Ratcheting Square Drive torque wrenches are ideal for any application where:



  • The fastener or fitting to be tightened can be engaged with a socket,
  • The user changes from one torque to another often,
  • A high amount of rotation or limited access requires ratcheting to achieve the desired torque,
  • The ability to select the torque and lock it in rapidly is needed,
  • Simplicity of operation is needed,
  • Very high durability is needed.



These needs are common in small quantity assembly operations and many maintenance functions; the SDR-Series tools are superb for these types of applications.



Key Features



  • Accuracy of ± 4% of Indicated Value from 20% to 100% of rated capacity.
  • Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789.
  • Ratchet design is exceptionally strong and durable.
  • Fast adjustment – takes the fewest grip rotations of any tool to reach full scale.
  • Simple thumbscrew mechanism locks to avoid changing torque setting accidentally.
  • New aluminum Knurl Grip handle.
  • Includes FREE certification from SR's ISO/IEC 17025 Accredited Calibration Laboratory.
  • All tools of 250 foot-pound (or equivalent) capacity and below come with a custom molded plastic case.



Options



  • Old version with neoprene handle optionally convertible to metal handle. Ask for your "Knurl Grip Conversion Kit".



Ratchet Renewal Kits



  • 816998 = 1/4" w Slide Pin
  • 816958 = 3/8" w Slide Pin
  • 816956 = 1/2" w Slide Pin
  • 816999 = 3/4" w Slide Pin



NATO/BW approval (NSN)



  • 2SDR50I = 5120-01-394-4289
  • 2SDR150I = 5120-01-394-4292
  • 3SDR150I = 5120-01-394-4293
  • 3SDR200I = 5120-01-394-4291
  • 3SDR600I = 5120-01-394-4295
  • 3SDR750I = 5120-01-394-4294
  • 3SDR1200I = 5120-01-394-4297
  • 4SDR1800I = 5120-01-394-4298

  • 3SDR100 = 5120-01-394-4296
  • 4SDR150 = 5120-01-394-4299
  • 4SDR250 = 5120-01-394-4300
  • 6SDR300 = 5120-01-394-4271
  • 6SDR600 = 5120-01-394-4273
SDR – Newton Meter
Model Item No. Torque Range [N·m] Graduation Sq.Drv [inch] Weight [kg] Length [mm] Grip
2 SDR 6 NM MG R869774 1.2 - 6 0.1 1/4 0.5 285 MG
2 SDR 20 NM MG R869775 4 - 20 0.2 1/4 0.5 285 MG
3 SDR 20 NM MG R869776 4 - 20 0.2 3/8 0.5 304 MG
3 SDR 50 NM MG R869782 10 - 50 0.5 3/8 0.7 394 MG
3 SDR 100 NM MG R869777 20 - 100 0.5 3/8 0.7 391 MG
4 SDR 100 NM MG R869797 20 - 100 0.5 1/2 0.7 391 MG
3 SDR 140 NM MG R869783 28 - 140 1 3/8 0.8 470 MG
4 SDR 140 NM MG R869798 28 - 140 1 1/2 0.8 464 MG
4 SDR 200 NM MG R869778 40 - 200 1 1/2 0.9 495 MG
4 SDR 300 NM MG R869779 60 - 300 2 1/2 1.6 634 MG
6 SDR 300 NM MG R869789 60 - 300 2 3/4 1.6 634 MG
6 SDR 800 NM R810598 160 - 800 5 3/4 4.8 975 MG
SDR – Inch Pounds
Model Item No. Torque Range [lbf·in] Graduation Sq.Drv [inch] Weight ]kg| Length [mm] Grip
2 SDR 50i MG R869749 10 - 50 1 1/4 0.5 285 MG
2 SDR 150i MG R869750 30 - 150 2 1/4 0.5 295 MG
3 SDR 150i MG R869751 30 - 150 2 3/8 0.5 294 MG
2 SDR 200i MG R869781 40 - 200 2 3/8 0.5 272 MG
3 SDR 200i MG R869761 40 - 200 2 3/8 0.5 298 MG
3 SDR 600i MG R869748 120 - 600 5 3/8 0.7 390 MG
3 SDR 750i MG R869752 150 - 750 5 3/8 0.7 385 MG
3 SDR 1200i MG R869747 240 - 1200 10 3/8 0.8 467 MG
4 SDR 1800i MG R869755 360 - 1800 10 1/2 0.9 475 MG
SDR – Foot Pounds
Model Item No. Torque Range [lbf·ft] Graduation Sq.Drv [inch] Weight [kg] Length [mm] Grip
3 SDR 75 MG R869756 15 - 75 0.5 3/8 0.7 380 MG
3 SDR 100 MG R869754 20 - 100 1 3/8 0.8 468 MG
4 SDR 150 MG R869757 75 - 150 1 1/2 0.9 487 MG
4 SDR 250 MG R869758 50 - 250 2 1/2 1.6 639 MG
6 SDR 300 R810760 60 - 300 2.5 3/4 3.5 721 MG
6 SDR 600 R810597 120 - 600 5 3/4 4.8 984 MG
6 SDR 700 R810525 140 - 700 5 3/4 7.5 994 MG

The requirements and verification procederes of the DIN EN ISO 6789 are valid for a measuring range from 20% to 100% of the rated capacity (maximum value). The effective span of a torque tool may differently begin lower.



MG = Knurled Metal Grip.

All specifications without guarantee, errors and omissions excepted.
