<p>Surface Drive - short</p>

Surface Drive - short

Surface Drive

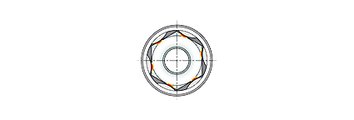

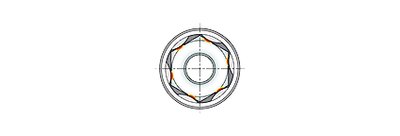

Hexagon

<p>Surface Drive - short</p>

Downloads

Surface Drive

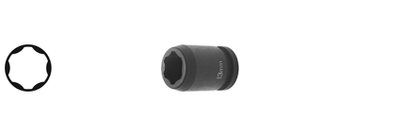

Surface Drive - short

Model	Item No.	A/F	L mm	D1 mm	D2 mm	D mm	PU
K3/8-8-SD	220450	8	32	13,8	19	8,0	5
K3/8-9-SD	220451	9	32	15,0	19	8,0	5
K3/8-10-SD	220452	10	32	16,0	19	8,0	5
K3/8-11-SD	220453	11	32	17,5	19	9,0	5
K3/8-12-SD	220454	12	32	19,0	19	9,0	5
K3/8-13-SD	220455	13	32	20,0	22	9,0	5
K3/8-14-SD	220456	14	32	22,0	22	9,0	5
K3/8-15-SD	220457	15	32	22,0	22	11,0	5
K3/8-16-SD	220458	16	32	24,0	22	11,0	5
K3/8-17-SD	220459	17	32	25,0	22	11,0	5
K3/8-18-SD	220460	18	32	26,0	22	11,0	5
K3/8-19-SD	220461	19	32	28,0	22	11,0	5

Model	Item No.	A/F inch	L mm	D1 mm	D2 mm	D mm	PU
K3/8-1/4-SD	220510	1/4	32	11,5	19	4,0	5
K3/8-5/16-SD	220511	5/16	32	13,8	19	8,0	5
K3/8-3/8-SD	220512	3/8	32	15,5	19	8,0	5
K3/8-7/16-SD	220513	7/16	32	17,5	19	9,0	5
K3/8-1/2-SD	220514	1/2	32	20,0	22	9,0	5
K3/8-9/16-SD	220515	9/16	32	22,0	22	11,0	5
K3/8-5/8-SD	220516	5/8	32	24,0	22	11,0	5
K3/8-11/16-SD	220517	11/16	32	26,0	22	11,0	5
K3/8-3/4-SD	220518	3/4	32	28,0	22	11,0	5

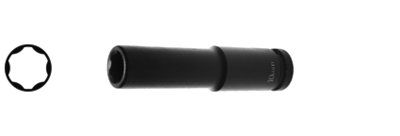

Surface Drive - long

Model	Item No.	A/F	L mm	D1 mm	D2 mm	D mm	PU
K3/8-8-SDL	220610	8	80	13,8	19	12,0	–
K3/8-9-SDL	220611	9	80	15,0	19	12,0	–
K3/8-10-SDL	220612	10	80	16,0	19	12,0	–
K3/8-11-SDL	220613	11	80	17,5	19	25,0	–
K3/8-12-SDL	220614	12	80	19,0	19	25,0	–
K3/8-13-SDL	220615	13	80	20,0	22	25,0	–
K3/8-14-SDL	220616	14	80	22,0	22	25,0	–
K3/8-15-SDL	220617	15	80	22,0	22	25,0	–
K3/8-16-SDL	220618	16	80	24,0	22	25,0	–
K3/8-17-SDL	220619	17	80	25,0	22	25,0	–
K3/8-18-SDL	220620	18	80	26,0	22	25,0	–
K3/8-19-SDL	220621	19	80	28,0	22	25,0	–

Model	Item No.	A/F inch	L mm	D1 mm	D2 mm	D mm	PU
K3/8-5/16-SDL	220650	5/16	80	13,8	19	12,0	–
K3/8-3/8-SDL	220651	3/8	80	15,5	19	12,0	–
K3/8-7/16-SDL	220652	7/16	80	17,5	19	25,0	–
K3/8-1/2-SDL	220653	1/2	80	20,0	22	25,0	–
K3/8-9/16-SDL	220654	9/16	80	22,0	22	25,0	–
K3/8-5/8-SDL	220655	5/8	80	24,0	22	25,0	–
K3/8-11/16-SDL	220656	11/16	80	26,0	22	25,0	–
K3/8-3/4-SDL	220657	3/4	80	28,0	22	25,0	–

Thin-walled - Surface Drive - short

Model	Item No.	A/F	L mm	D1 mm	D2 mm	D mm	PU
K3/8-8-DWSD	221110	8	34	11,8	17,3	5	5
K3/8-9-DWSD	221111	9	34	13,3	17,3	6	5
K3/8-10-DWSD	221112	10	34	14,5	17,3	6	5
K3/8-11-DWSD	221113	11	34	15,7	17,3	7	5
K3/8-12-DWSD	221114	12	34	16,8	17,3	8	5
K3/8-13-DWSD	221115	13	34	18	17,3	10	5
K3/8-14-DWSD	221116	14	34	20	18	10	5
K3/8-15-DWSD	221117	15	34	21	20	10	5
K3/8-16-DWSD	221118	16	34	22,4	22	10	5
K3/8-17-DWSD	221119	17	34	23,6	22	10	5
K3/8-18-DWSD	221120	18	34	24	22	12	5
K3/8-19-DWSD	221121	19	34	26	24	12	5

Thin-walled - Surface Drive - long

Model	Item No.	A/F	L mm	D1 mm	D2 mm	D mm	PU
K3/8-8-DWSDL	221150	8	51	12	17,3	7,5	5
K3/8-9-DWSDL	221151	9	51	13,3	17,3	9	5
K3/8-10-DWSDL	221152	10	51	14,5	17,3	9	5
K3/8-11-DWSDL	221153	11	51	16	17,3	10,5	5
K3/8-12-DWSDL	221154	12	51	17	17,3	12	5
K3/8-13-DWSDL	221155	13	51	18	17,3	12	5
K3/8-14-DWSDL	221156	14	51	20	18	15	5
K3/8-15-DWSDL	221157	15	51	21	20	15	5
K3/8-16-DWSDL	221158	16	51	22,4	22	15	5
K3/8-17-DWSDL	221159	17	51	23,6	22	15	5
K3/8-18-DWSDL	221160	18	51	24,5	23	18	5
K3/8-19-DWSDL	221161	19	51	26	24	18	5

All specifications without guarantee, errors and omissions excepted.
