Tohnichi TM

Torque Ranges 10 mNm up to 750 cNm (see data sheet)

Analog torque meter

Tohnichi's Torque Meter is suitable for checking torque on bottle caps, starting torque test, strength test, and twisting test, etc.

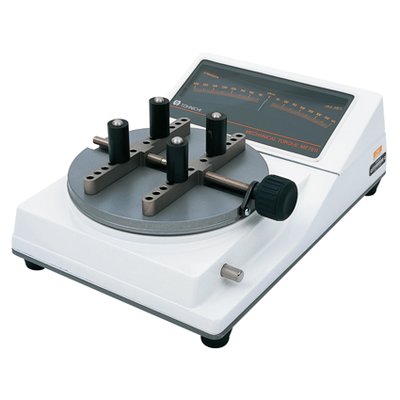

TM is equipped with 4 poles that can change positions according to the object's shape and hold it firmly during testing.

There is no need to fix the tester on the table with bolts, which gives greater portability. With the optional calibration equipment, the torque tester can be calibrated at the customer side.

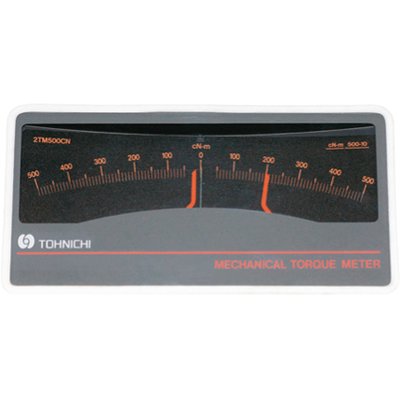

Models with“ -S” is equipped with a memory pointer, which is useful for measuring the peak torque.



Features

  • Bi-directional (right/left).
  • Accuracy ± 2%.
  • Memory pointer (models -S) keeps peak torque.
  • Clamping fixture with 4 poles.
  • Slanted display with large scale for easy reading.
  • Ergonomically designed and adapted for Color Vision Deficiencies.



Included items

  • Torque meter unit
  • Rubber nails
  • Operator's manual (eng)
  • Calibration Cert



Options

  • Calibration kit TMTCL.
  • SI-Models without memory pointer.
  • English scale (lbf·in) on request.
4TM (mN·m)
4TM10MN-S T251220-S 1 - 10 0.2 14 - 90 17 - 85 3
4TM15MN-S T251223-S 1.5 - 15 0.5 14 - 90 17 - 85 3
4TM25MN-S T251226-S 2.5 - 25 0.5 14 - 90 17 - 85 3
4TM50MN-S T251229-S 5 - 50 1 14 - 90 17 - 85 3
4TM75MN-S T251232-S 8 - 75 2 14 - 90 17 - 85 3
Baureihe 3TM (cN·m)
3TM10CN-S T251235-S 1 - 10 0.2 14 - 90 17 - 85 3
3TM15CN-S T251238-S 1.5 - 15 0.5 14 - 90 17 - 85 3
3TM25CN-S T251241-S 2.5 - 25 0.5 14 - 90 17 - 85 3
3TM50CN-S T251244-S 5 - 50 1 14 - 90 17 - 85 3
3TM75CN-S T251247-S 8 - 75 2 14 - 90 17 - 85 3
Baureihe 2TM (cN·m)
2TM100CN-S T251250-S 10 - 100 2 20 - 154 20 - 140 10.5
2TM150CN-S T251253-S 20 - 150 2 20 - 154 20 - 140 10.5
2TM200CN-S T251256-S 30 - 200 5 20 - 154 20 - 140 10.5
2TM300CN-S T251259-S 30 - 300 5 20 - 154 20 - 140 10.5
2TM400CN-S T251262-S 40 - 400 5 20 - 154 20 - 140 10.5
2TM500CN-S T251265-S 50 - 500 10 20 - 154 20 - 140 10.5
2TM600CN-S T251268-S 60 - 600 10 20 - 154 20 - 140 10.5
2TM750CN-S T251271-S 80 - 750 10 20 - 154 20 - 140 10.5
