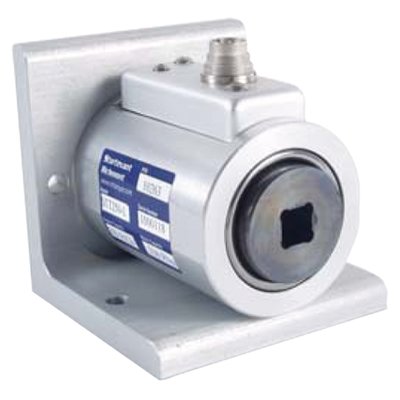

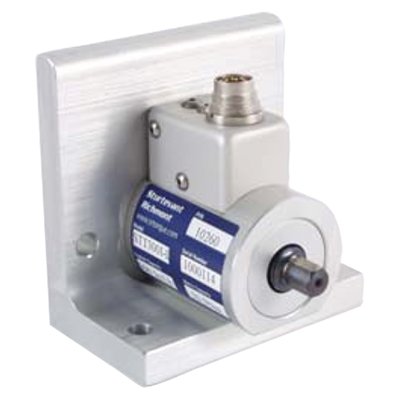

Sturtevant Richmont Torque Transducer TT-L

Capacity 10 / 50 / 100 / 300 lbf·in // 80 / 150 / 250 / 600 lbf·ft

The gateway to the finest in torque measurement tools!

TT-L Series Torque Transducers are designed to work with both System 4 / System 5 and System 8 Digital Torque Testers.



Features and Benefits

  • L-shape mounting flange style.
  • Can be mounted horizontally or vertically.
  • Requires detachable cable (P/N 10293) for attachment to Switch Box or directly to tester.
Series TT-L
Model Item No. Torque
range
lbf·in
Torque
range
lbf·ft
Torque
range
cN·m
Torque
range
N·m
Hx.drv
(m)
Inch
Sq.drv
(f)
Inch
STT-L 10i R10257 1 - 10 11 - 113 0.11 - 1.13 1/4
STT-L 50i R10258 5 - 50 56 - 565 0.56 - 5.6 1/4
STT-L 100i R10259 10 - 100 113 - 1130 1.1 - 11.3 3/8
STT-L 300i R10260 30 - 300 2.5 - 25 339 - 3390 3.4 - 33.9 3/8
STT-L 80 R10261 96 - 960 8 - 80 10.8 - 108 1/2
STT-L 150 R10262 180 - 1800 15 - 150 20.3 - 203 1/2
STT-L 250 R10263 300 - 3000 25 - 250 33.9 - 339 3/4
STT-L 600 R10264 720 - 7200 60 - 600 81.3 - 813 3/4
Requires Part Number 10293 cable to be operational.

(m) = male, (f) = female

All specifications without guarantee, errors and omissions excepted.
