EC Battery Impulse Wrenches with intelligent Shut-Off
The Yokota YZ-T cordless impulse wrench is detecting the amplitude of the tightening force from motor loaded condition. Based on the programmed values, the YZ-T wrench makes self-shut-off intelligently. As a result, the YZ-T achieves highest torque accuracy and safety against misconnections.
The robust and very compact design provides good accessibility to the screw connection.

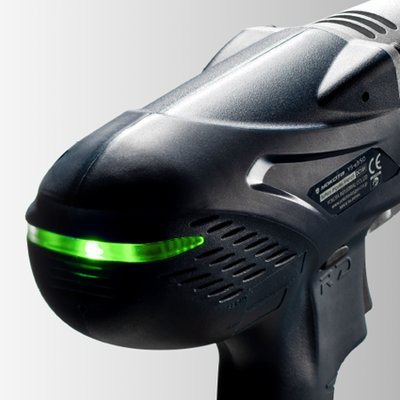

An integrated status LED is visible virtually all around. The YZ-T series provides a rugged impact-resistant housing. Its pulse cell works without a mechanical shut-off mechanism and is easy to maintain. The optimized design allows extended maintenance intervals. The grip fits well in the hand and the tool is perfectly balanced.
Intelligent Shut-Off
The combination of the adjustment of the pressure relief valve and the speed setting of the motor allows an optimal adaptation to the respective bolt joint to be connected.
Thus the electronically controlled shut-off effects precisely and stable according to the entered parameters for smallest torque tolerances.
Key Features

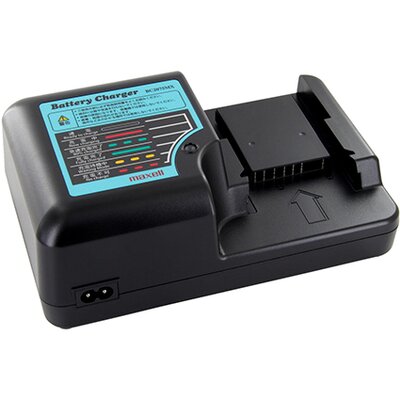

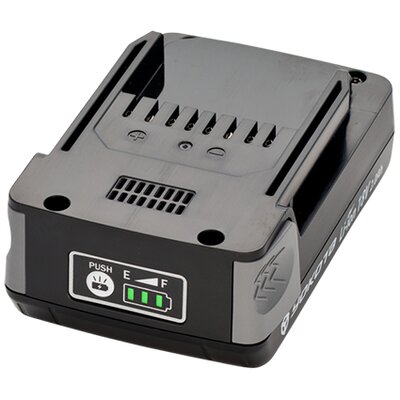

Scope of Shipment

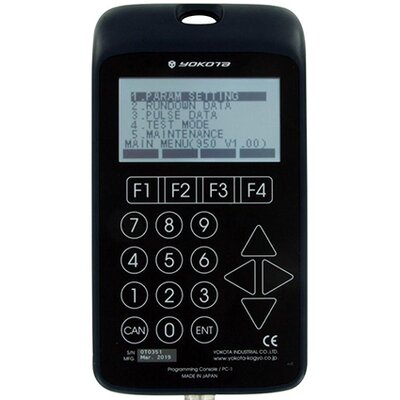

Optional Components
| Model | Sq.D [inch] | Hx.D [inch] | Torque Range [N·m] | Free Speed [1/min] | Weight w Batt [kg] | Vibration [m/s²] | Noise Level [dBA] | Length [mm] |
|---|---|---|---|---|---|---|---|---|

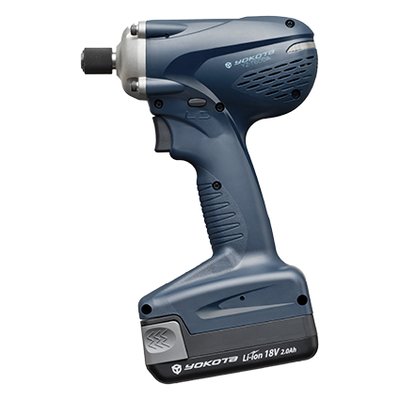

| YZ-T600A | – | 1/4 | 5 - 18 | 1200 - 4800 | 1.4 | 2.5 | 67 | 161 |
| YZ-T800A | – | 1/4 | 10 - 30 | 1200 - 4800 | 1.5 | 2.5 | 68 | 161 |
| YZ-T600E | 3/8 | – | 7 - 20 | 1200 - 4800 | 1.4 | 2.5 | 67 | 166 |
| YZ-T800E | 3/8 | – | 15 - 35 | 1200 - 4800 | 1.5 | 2.5 | 68 | 166 |

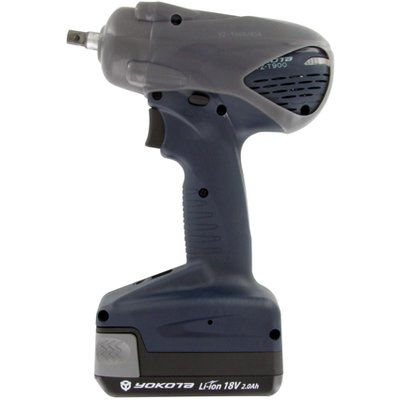

| YZ-T900E | 3/8 | – | 30 - 50 | 1200 - 4800 | 1.6 | 2.5 | 69 | 173 |
| YZ-T950E | 3/8 | – | 40 - 60 | 1200 - 4800 | 1.65 | 2.5 | 70 | 173 |
All specifications without guarantee, errors and omissions excepted.
