Yokota Series YX

Torque Range 15 - 62 Nm

Hi-Tech Impulse Wrench with patented Twin Blade pulse mechanism

Yokota impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back, in common with a high repeatability as well as low noise and vibration level. Evaluation of tightening processes in car assembly shows that tightening joints uses 10% of the total assembly time. Working with faster tools therefore can speed up assembly lines substantially.

Key Features

The patented Twin Blade Impulse Mechanism allows oil-reduced operating.
Air treatment unit should be switched-in to decrease wear and maintenance needs.
All YX models are equipped with a 2-Step-Trigger.
The 3/8” and 1/2” square drive models feature a locking pin enabling fast change of sockets. Models with “A” featuring 1/4” hexagon quick change coupling.
Specified technical data are measured on the Yokota testers series YET at a dynamic air pressure of 0.63 MPa. The Yokota testers have a static transducer, therefore the specific torques are to be used as a guidance only.
Applying reaction-free Yokota impulse wrenches at the assembly line reduces the RSI risk significantly.

Series YX – Straight Shape

Model *	Item No.	Sq.drv Inch	Hx.drv Inch	Bolt Capacity mm	Free Speed 1/min	Torque range N·m	Air Cons. l/s	Weight kg	Pipe Thread Inch	Hose diam. mm
YX-180SA	410180	–	1/4	M4 - M6	11000	20 - 24	4.2	1.00	2.5	83
YX-280SA	410001	–	1/4	M6 - M8	10500	23 - 29	5.0	1.06	2.5	83
YX-380SA	410191	–	1/4	M8	9000	29 - 34	5.0	1.25	2.5	81
YX-500SA	410104	–	1/4	M8 - M10	7500	31 - 40	5.0	1.35	2.9	81
YX-180S	410181	3/8	–	M4 - M6	11000	24 - 28	4.2	1.00	3	83
YX-280S	410003	3/8	–	M6 - M8	10500	24 - 33	5.0	1.07	4.1	83
YX-380S	410192	3/8	–	M8	9000	32 - 38	5.0	1.25	2.9	81

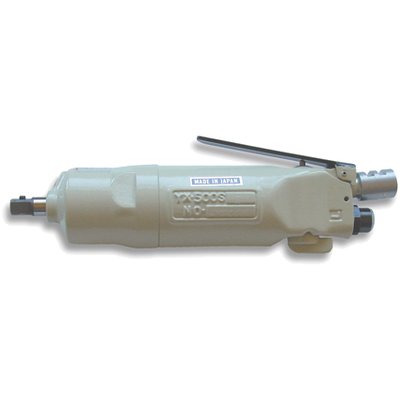

YX-500S	410101	3/8	–	M8 - M10	7500	38 - 46	5.0	1.35	3	81
YX-700S	410111	3/8	–	M8 - M10	5000	39 - 58	5.8	1.75	3.9	82

Series YX – Angled Shape

Model	Item No.	Sq.drv inch	Hx.drv Inch	Bolt Capacity mm	Free Speed 1/min	Torque range N·m	Air Cons. l/s	Weight kg	Pipe Thread Inch	Hose diam. mm
YX-280CA	n. a.	–	1/4	M4 - M6	10000	20 - 24	5.0	1.33	n. a.	86

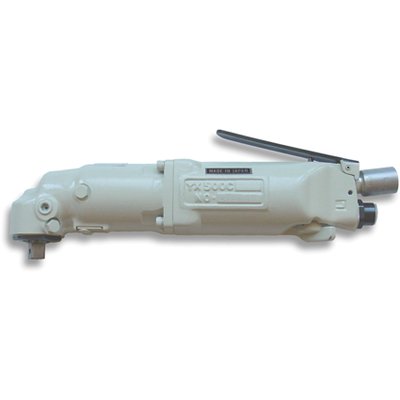

YX-500CA	410107	–	1/4	M6 - M8	7500	28 - 33	5.0	1.66	n. a.	80
YX-280C	410006	3/8	–	M4 - M6	10000	20 - 24	5.0	1.33	n. a.	86
YX-500C	410105	3/8	–	M6 - M8	7500	30 - 36	5.0	1.66	n. a.	80
YX-700C	410115	3/8	–	M8 - M10	5000	30 - 40	5.8	2.03	n. a.	82

All specifications without guarantee, errors and omissions excepted.

Baureihe YX – Pistolenausführung

YX-80A	n. a.	1/4	–	M4 - M5	9000	5.5 - 7.5	n. a.	0.79	2.5	86
YX-3000	410150	–	3/4	M16 - M18	4500	280 - 300	10.0	5.28	2.8	80

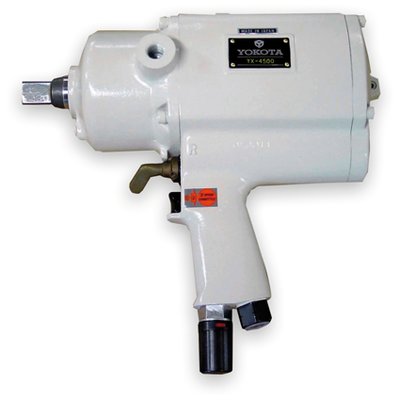

YX-4500	410160	–	3/4	M18 - M20	3400	490 - 500	11.6	10.4	2.5	87
