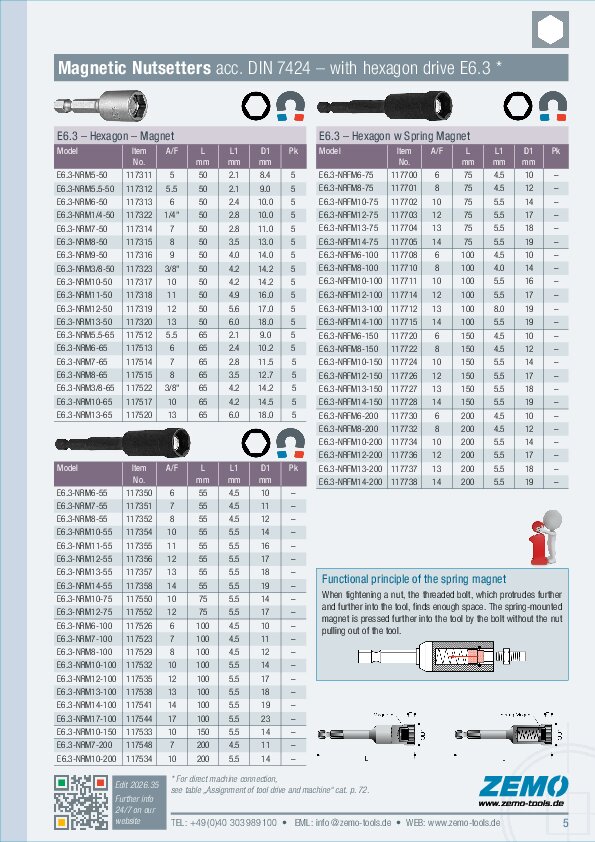

E 6,3 Nutsetter with Spring Magnet

according to DIN 7424

Nutsetter for Power Tools

These plug-in tools are ideal if you often have to process screws with an external hexagon head. It is true that this could also be done with a hand ratchet. However, it is significantly faster and more reliable with a nutsetter in a drive machine. The machine's adjustable torque limit ensures even tightening and reduces the risk of overtightening the thread.

Equipped with Spring Magnet

When a nut is tightened, the threaded bolt, which protrudes further and further into the tool, finds sufficient space. The spring-mounted permanent magnet is pressed further into the tool by the bolt without the nut pulling out of the tool.

E6.3 (1/4) – Nutsetter w Spring Magnet – L75

Model	Item No.	A/F [mm]	Length [mm]	D1 [mm]	L1 [mm]	Pk [ea]
E6.3-NRFM-6-75	117700	6	75	10	4.5	–
E6.3-NRFM-8-75	117701	8	75	12	4.5	–
E6.3-NRFM-10-75	117702	10	75	14	5.5	–
E6.3-NRFM-12-75	117703	12	75	17	5.5	–
E6.3-NRFM-13-75	117704	13	75	18	5.5	–
E6.3-NRFM-14-75	117705	14	75	19	5.5	–

E6.3 (1/4) – Nutsetter w Spring Magnet – L100

Model	Item No.	A/F [mm]	Length [mm]	D1 [mm]	L1 [mm]	Pk [ea]
E6.3-NRFM-6-100	117708	6	100	10	4.5	–
E6.3-NRFM-8-100	117710	8	100	12	4.5	–
E6.3-NRFM-10-100	117711	10	100	14	5.5	–
E6.3-NRFM-12-100	117714	12	100	17	5.5	–
E6.3-NRFM-13-100	117712	13	100	18	5.5	–
E6.3-NRFM-14-100	117715	14	100	19	5.5	–

E6.3 (1/4) – Nutsetter w Spring Magnet – L150

Model	Item No.	A/F [mm]	Length [mm]	D1 [mm]	L1 [mm]	Pk [ea]
E6.3-NRFM-6-150	117720	6	150	10	4.5	–
E6.3-NRFM-8-150	117722	8	150	12	4.5	–
E6.3-NRFM-10-150	117724	10	150	14	5.5	–
E6.3-NRFM-12-150	117726	12	150	17	5.5	–
E6.3-NRFM-13-150	117727	13	150	18	5.5	–
E6.3-NRFM-14-150	117728	14	150	19	5.5	–

E6.3 (1/4) – Nutsetter w Spring Magnet – L200

Model	Item No.	A/F [mm]	Length [mm]	D1 [mm]	L1 [mm]	Pk [ea]
E6.3-NRFM-6-200	117730	6	200	10	4.5	–
E6.3-NRFM-8-200	117732	8	200	12	4.5	–
E6.3-NRFM-10-200	117734	10	200	14	5.5	–
E6.3-NRFM-12-200	117736	12	200	17	5.5	–
E6.3-NRFM-13-200	117737	13	200	18	5.5	–
E6.3-NRFM-14-200	117738	14	200	19	5.5	–

All specifications without guarantee, errors and omissions excepted.
