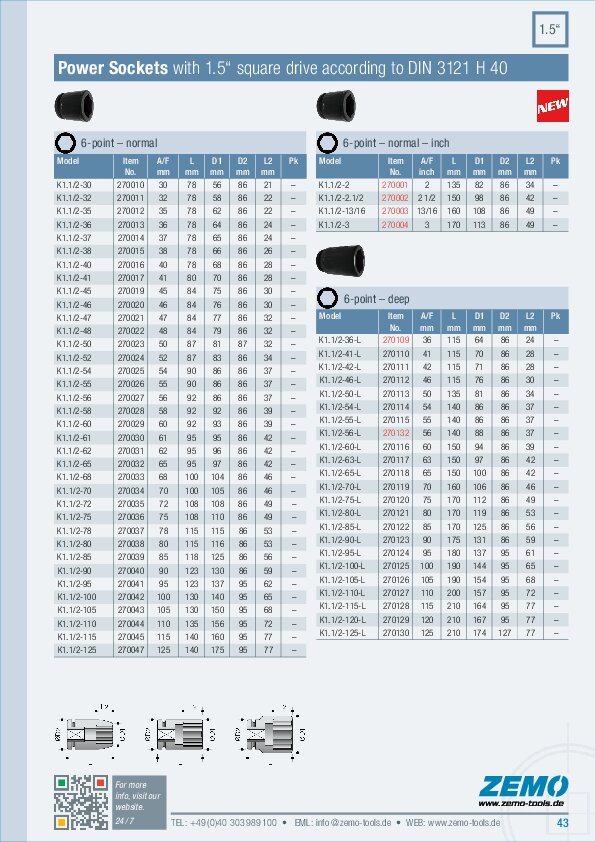

Power Sockets – 6-Point Hexagon

1 1/2" Square Drive

The square drive of the Action® torque socket wrench is rounded outwards at the corners. This ensures, firstly, that the drive spindle of the screwdriver fits perfectly. Secondly, it ensures that the torque is transmitted not only at the corners of the impact socket but also along the flanks. This increases the service life of both the impact socket and the drive spindle of the impact wrench.

Hexagon

The rounded inner corners of the Action® hexagonal power sockets create a certain amount of play in the corners of the hexagon within the screw head. This results in increased force distribution across the flanks. It also reduces wear on the screw head or nut corners.

Usage Remarks

Replace worn power sockets at the first sign of wear.
In accordance with EU Directive 2006/42/EC (Machinery Directive) and EN/ISO 11148-6, only power sockets may be used on power tools.
Never hold rotating parts by hand!

6-point – metric

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	D2 [mm]	L2 [mm]	Pk [ea]
K1.1/2-30	270010	30	78	56	86	21	–
K1.1/2-32	270011	32	78	58	86	22	–
K1.1/2-35	270012	35	78	62	86	22	–
K1.1/2-36	270013	36	78	64	86	24	–
K1.1/2-37	270014	37	78	65	86	24	–
K1.1/2-38	270015	38	78	66	86	26	–
K1.1/2-40	270016	40	78	68	86	28	–
K1.1/2-41	270017	41	80	70	86	28	–
K1.1/2-42	270018	42	80	71	86	28	–
K1.1/2-45	270019	45	84	75	86	30	–
K1.1/2-46	270020	46	84	76	86	30	–
K1.1/2-47	270021	47	84	77	86	32	–
K1.1/2-50	270023	50	87	81	86	32	–
K1.1/2-52	270024	52	87	83	86	34	–
K1.1/2-54	270025	54	90	86	86	37	–
K1.1/2-55	270026	55	90	86	86	37	–
K1.1/2-56	270027	56	92	86	86	37	–
K1.1/2-58	270028	58	92	92	86	39	–
K1.1/2-60	270029	60	92	93	86	39	–
K1.1/2-65	270032	65	95	97	86	42	–
K1.1/2-70	270034	70	100	105	86	46	–
K1.1/2-75	270036	75	108	110	86	49	–
K1.1/2-78	270037	78	115	115	86	53	–
K1.1/2-80	270038	80	115	116	86	53	–
K1.1/2-85	270039	85	118	125	86	56	–
K1.1/2-90	270040	90	123	130	86	59	–
K1.1/2-95	270041	95	123	137	95	62	–
K1.1/2-100	270042	100	130	140	95	65	–
K1.1/2-105	270043	105	130	150	95	68	–
K1.1/2-110	270044	110	135	156	95	72	–
K1.1/2-115	270045	115	140	160	95	77	–
K1.1/2-120	270046	120	135	175	95	65	–
K1.1/2-125	270047	125	140	175	95	77	–

6-point – inch

Model	Item No.	A/F [inch]	Length [mm]	D1 [mm]	D2 [mm]	L2 [mm]	Pk [ea]
K1.1/2-2	270001	2	135	82	86	34	–
K1.1/2-2.1/2	270002	2 1/2	150	98	86	42	–
K1.1/2-13/16	270003	13/16	160	108	86	49	–
K1.1/2-3	270004	3	170	113	86	49	–

6-point – deep

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	D2 [mm]	L2 [mm]	Pk [ea]
K1.1/2-36-L	270109	36	115	64	86	24	–
K1.1/2-41-L	270110	41	115	70	86	28	–
K1.1/2-42-L	270111	42	115	71	86	28	–
K1.1/2-46-L	270112	46	115	76	86	30	–
K1.1/2-50-L	270113	50	135	81	86	34	–
K1.1/2-54-L	270114	54	140	86	86	37	–
K1.1/2-55-L	270115	55	140	86	86	37	–
K1.1/2-56-L	270132	56	140	88	86	37
K1.1/2-60-L	270116	60	150	94	86	39	–
K1.1/2-63-L	270117	63	150	97	86	42	–
K1.1/2-65-L	270118	65	150	100	86	42	–
K1.1/2-70-L	270119	70	160	106	86	46	–
K1.1/2-75-L	270120	75	170	112	86	49	–
K1.1/2-80-L	270121	80	170	119	86	53	–
K1.1/2-85-L	270122	85	170	125	86	56	–
K1.1/2-90-L	270123	90	175	131	86	59	–
K1.1/2-95-L	270124	95	180	137	95	61	–
K1.1/2-100-L	270125	100	190	144	95	65	–
K1.1/2-105-L	270126	105	190	154	95	68	–
K1.1/2-110-L	270127	110	200	157	95	72	–
K1.1/2-115-L	270128	115	210	164	95	77	–
K1.1/2-120-L	270129	120	210	167	95	77	–

All specifications without guarantee, errors and omissions excepted.
