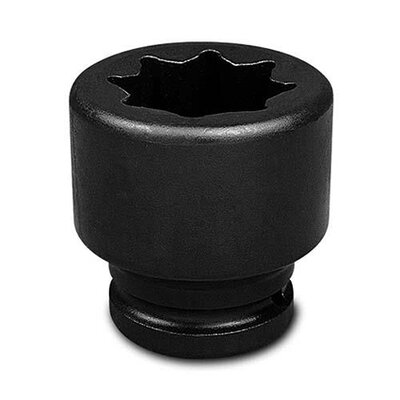

Power Sockets – 8-Point Double Square

1" Square Drive

The square drive of the Action® torque socket wrench is rounded outwards at the corners. Firstly, this ensures an excellent fit with the drive spindle of the screwdriver. Secondly, it ensures that the torque is transmitted not only at the corners of the impact socket but also along the flanks. This increases the service life of both the impact socket and the drive spindle of the impact wrench.

Instructions for use

Replace worn power sockets at the first sign of wear.
In accordance with EU Directive 2006/42/EC (Machinery Directive) and EN/ISO 11148-6, only power sockets may be used on power tools.
Never hold rotating parts by hand!

8-point – metric

Model	Item No.	A/F [mm]	Length [mm]	D1 [mm]	D2 [mm]	L2 [mm]	Pk [ea]
K1-19-DVK	260081	19	60	45	54	13	–
K1-24-DVK	260082	24	60	52	54	18	–
K1-27-DVK	260083	27	60	56	54	19	–
K1-30-DVK	260084	30	62	61	54	21	–
K1-32-DVK	260086	32	62	64	54	22	–
K1-35-DVK	260087	35	65	68	58	22	–
K1-38-DVK	260088	38	67	73	58	224	–
K1-46-DVK	260092	46	76	86	62	30	–
