Power Sockets – Torx® Driver TX
3/4" Square Drive
The square drive of the Action® torque socket wrench is rounded outwards at the corners. Firstly, this ensures an excellent fit with the drive spindle of the screwdriver. Secondly, it ensures that the torque is transmitted not only at the corners of the impact socket but also along the flanks. This increases the service life of both the impact socket and the drive spindle of the impact wrench.
Instructions for use
- Replace worn power sockets at the first sign of wear.
- In accordance with EU Directive 2006/42/EC (Machinery Directive) and EN/ISO 11148-6, only power sockets may be used on power tools.
- Never hold rotating parts by hand!

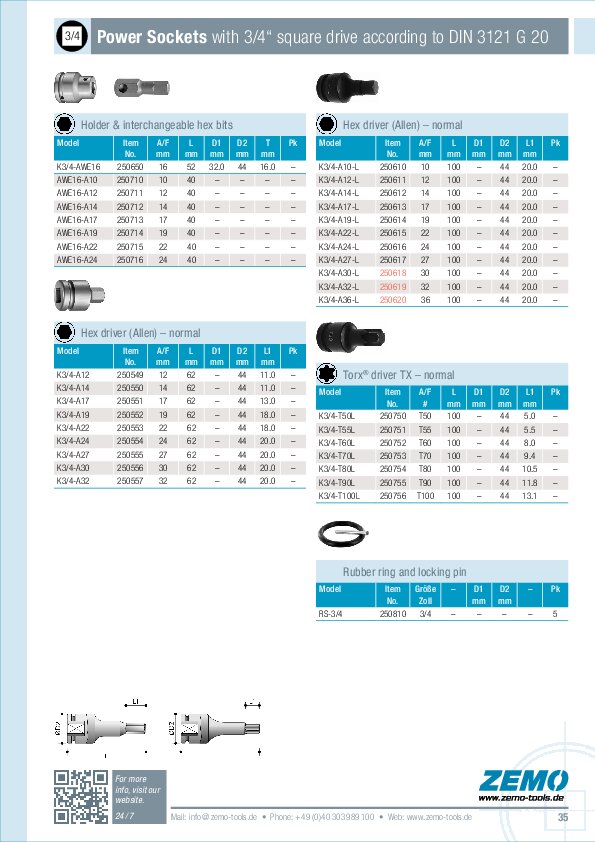

Torx® TX – L100
| Model | Item No. | TX # | L [mm] | D1 [mm] | D2 [mm] | L1 [mm] | Pk |
|---|---|---|---|---|---|---|---|
| K3/4-T50-L | 250750 | T50 | 100 | – | 44 | 5 | – |
| K3/4-T55-L | 250751 | T55 | 100 | – | 44 | 5.5 | – |
| K3/4-T60-L | 250752 | T60 | 100 | – | 44 | 8 | – |
| K3/4-T70-L | 250753 | T70 | 100 | – | 44 | 9.4 | – |
| K3/4-T80-L | 250754 | T80 | 100 | – | 44 | 10.5 | – |
| K3/4-T90-L | 250755 | T90 | 100 | – | 44 | 11.8 | – |
| K3/4-T100-L | 250756 | T100 | 100 | – | 44 | 13.1 | – |
All specifications without guarantee, errors and omissions excepted.
