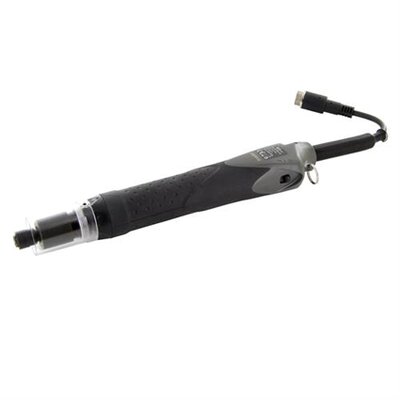

Red Rooster ESD Electric Screwdriver

Capacity 0.9 / 1.1 / 1.9 / 2.9 / 3.9 / 4.9 Nm

DC Electric Screwdriver with Push Start

The RED ROOSTER electrical brushless screwdrivers have a wide torque-range, are highly accurate and have a low vibration level. Very ergonomic design including ESD safe body material. The special design of the clutch combines low reaction forces with a high repeatability of the torque. This corded tool is designed for the assembly industry, where threaded fasteners are used.

Features

Dual Speed (dep on model)
Reversible
Soft ergonomic grip, push to start
Stepless adjustable torque level
ESD safe body material
Optional clutch cover can prevent unauthorized torque adjustment

Scope of Delivery

Electric screwdriver
Standard power controller
AC cord 1.8m
DC cord 2m
Clutch cover

Options / Accs / Spares

Torque adjustment tool
#DE3L-0012 for ESD3xxxx
#DE5L-0012 for ESD5xxxx
#DE7L-0012 for ESD7xxxx
Clutch housing cover
#DE3L-2026 for ESD3xxxx
#DE5L-2026 for ESD5xxxx
#DE7L-2026 for ESD7xxxx
Tool holder (holster)
#DE3L-0024 for ESD3xxxx
#DE5L-0024 for ESD5xxxx
#DE7L-0024 for ESD7xxxx
Handle (pistol grip) for pressure start
#DE3P-1078 for ESD3xxxx
#DE5P-1078 for ESD5xxxx
#DE7P-1078 for ESD7xxxx

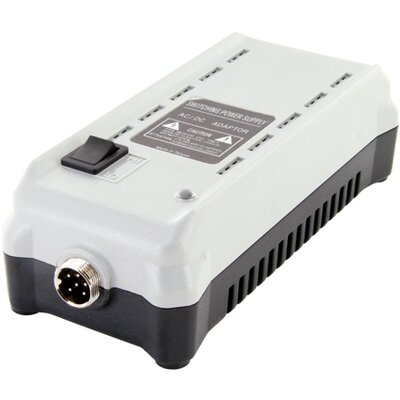

Power controller
#DE3L-8301/8301B for ESD3xxxx
#DE5L-8301/8301B for ESD5xxxx
#DE7L-8301/8301B for ESD7xxxx

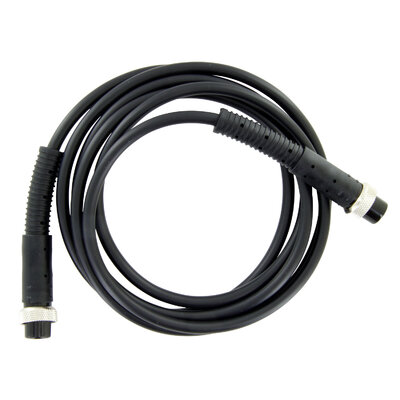

DC cord 2m
#DE3L-8204

Spring balancer –> Type TW

Power screwdriver bits –> Drive E6.3

>>> Announced for late 2025. More info asap. Stay tuned. <<<

Series ESD

Model	Item No.	Bolt Cap. [mm]	Torque [N·m]	Speed [rpm]	Hex [inch]	Length [mm]	Weight [kg]
RRI - ESD52010	540301	2.6	0.29 - 0.98	2000 / 1500	1/4	299	0.7
RRI - ESD31011	540303	2.6	0.2 - 1.07	1000 / 700	1/4	263	0.45
RRI - ESD50311	540305	2.6	0.29 - 1.08	330 / 240	1/4	299	0.7
RRI - ESD51111	540307	2.6	0.29 - 1.08	1100 / 800	1/4	299	0.7
RRI - ESD50320	540309	3.0	0.49 - 1.96	330 / 240	1/4	299	0.7
RRI - ESD51120	540311	3.0	0.49 - 1.96	1100 / 800	1/4	299	0.7
RRI - ESD71030	540313	3.5	1.47 - 2.49	1000	1/4	324	0.88
RRI - ESD70330	540315	3.5	1.47 - 2.49	260	1/4	324	0.88
RRI - ESD71930	540317	3.5	1.47 - 2.49	900	1/4	324	0.88
RRI - ESD71040	540319	4.0	1.67 - 3.92	1000	1/4	324	0.88
RRI - ESD70750	540321	4.0	1.96 - 4.9	650	1/4	324	0.88
RRI - ESD70350	540323	4.0	1.96 - 4.9	260	1/4	324	0.88

> All details are provisional. Subject to errors and changes. <
