Tohnichi DWQL Adjustable Torque Wrench w Angle Display

Capacity 50 / 100 / 140 / 200 / 280 / 420 Nm

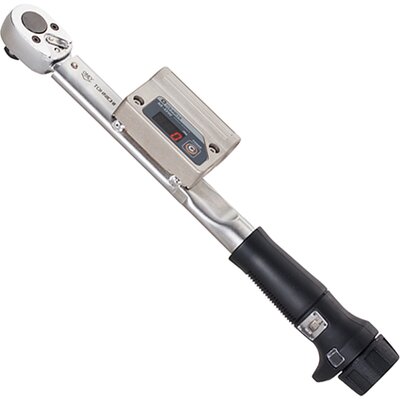

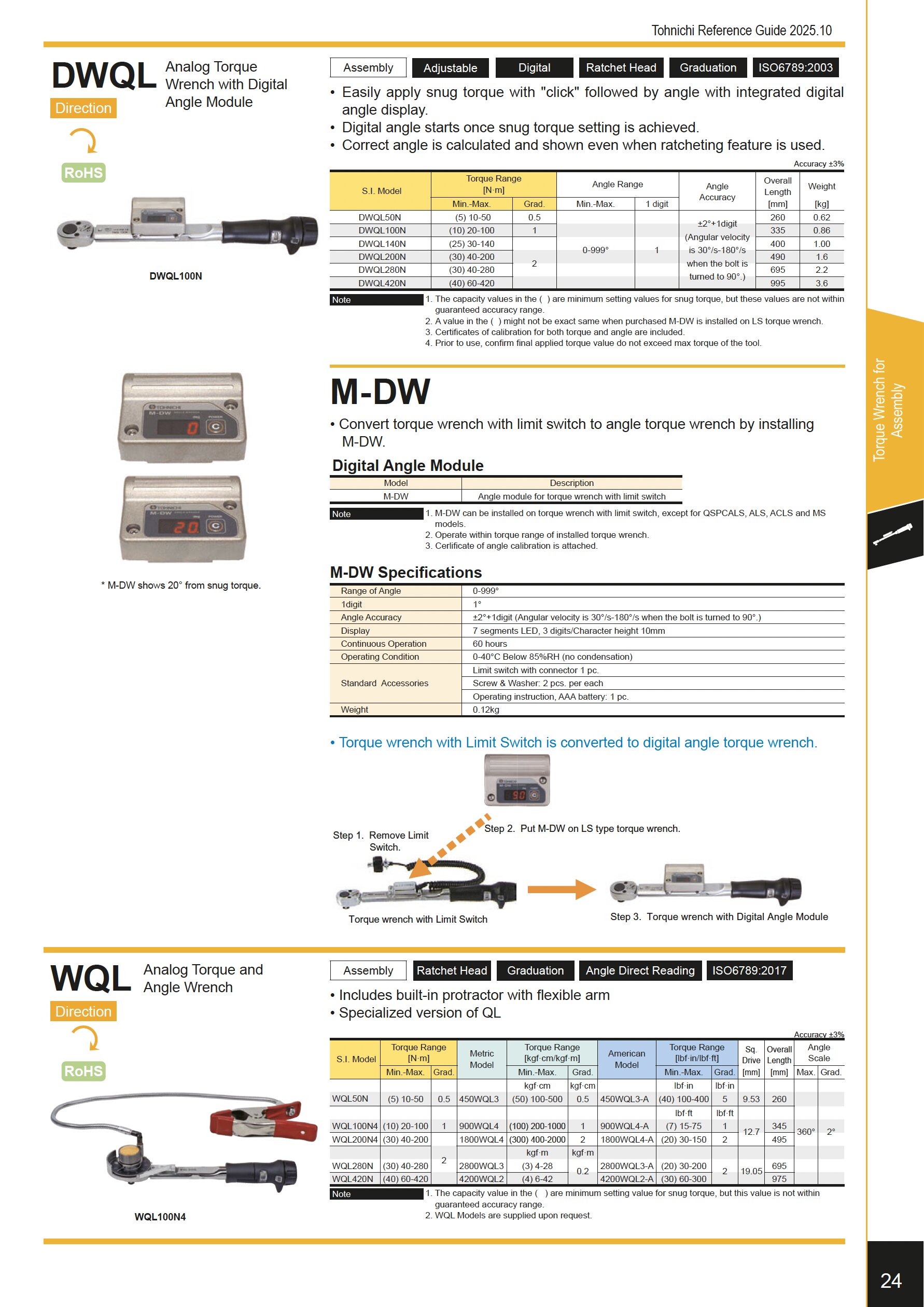

Click-Type Torque Wrench with Digital Angle Display

Based on the ‘QL’ series of ratchet wrenches from Tohnichi. Clicks at snug torque, then the angle module begins measuring and displaying rotation angle digitally. Used with wrench torque setting at snug torque.

Features DWQL

Compliant to ISO 6789 type II class A
Reversible Ratchet with 24 teeth and 15° operating range
Precise adjustment and locking mechanism
Signaling in clockwise rotation (click)
Digital angle display

Specifications M-DW

Angle range: 0...999°
Resolution (digit): 1°
Angle accuracy: ± 2° + 1 digit (angular velocity 30°/s – 180°/s when rotating to 90°)
Display: 7-segment LED, 3 digits, character height 10 mm
Max. continuous operation: ~60 hours
Operating environment: 0-40°C, below 85% (no condensation)

Scope of Supply

Torque wrench DWQL

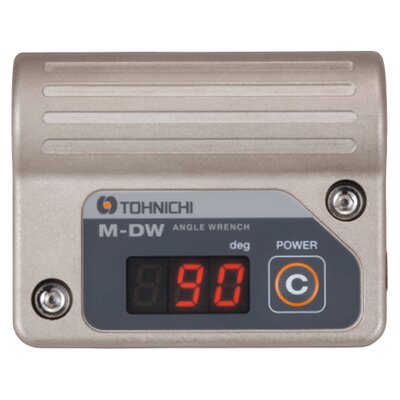

Angle module M-DW with battery (AA)
Limit switch with connector, mounting screws
Traceable factory calibration certificate (ISO/JCSS)
Original operating instructions (JP/EN)

Options

LS type torque wrench can be converted to angle torque wrench by installing M-DW.

DWQL

Model	Item No.	T Range [N·m]	Graduation	SqD [inch]	Length [mm]	Weight [kg]	Handle
DWQL50N	T212575	10 - 50	0.5	3/8	260	0.62	BK
DWQL100N	T212576	20 - 100	1	1/2	335	0.86	BK
DWQL140N	T212577	30 - 140	1	1/2	400	1.0	BK
DWQL200N	T212578	40 - 200	2	1/2	490	1.6	BK
DWQL280N	T212579	40 - 280	2	3/4	695	2.2	BK
DWQL420N	T212580	60 - 420	2	3/4	995	3.6	MH

Data according to specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.

SI unit products are compliant with ISO 6789:2017 starting January 2022. Calibration Certificates will be different from older products. Handle Design: 'BK' = black resin grip; 'MH' = knurled metal handle.

All technical data without guarantee, errors and omissions excepted.
