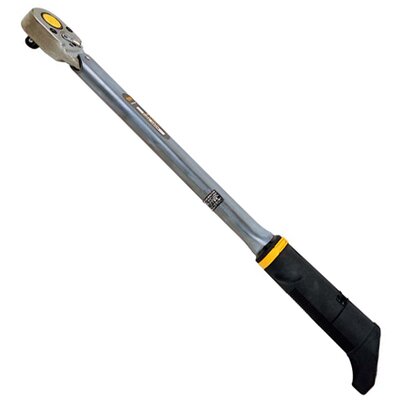

Tohnichi TiQL / TiLQL / TiEQL Pre-Lock Torque Wrench

Capacity 180 / 360 / 750 / 1400 Nm

World’s First Titanium Torque Wrench

About half the weight of a standard torque wrench. Applicable where ordinary torque wrenches are difficult to use because of weight, e.g. suitable for overhead working conditions with large torque requirement.

The ratchet head has 24 teeth with a 15 degree operating range, allowing for use in space-limited working conditions. A clear “Click” sound signals tightening completion upon reaching the set torque.

Tamper Resistance

The pre-lock version is actually a combination of preset and adjustable type torque wrench. It is equipped with a torque scale but to change the set torque an auxiliary tool is required, which makes it difficult for unauthorised or inadvertent changes to set torque. This effectively prevents human errors during the tightening process. The aux key for torque adjustment is a standard accessory.

Key Features

Compliant to ISO 6789:2017
Reversible ratchet with 24 teeth and 15° operating range
Equipped with scale, lockable
Click signal on reaching preset torque
Comfortable resin grip for 180N - 360N models. Larger models with metal grip.

Scope of Supply

Torque wrench
Colour marking band (3 colors) for tool control
Hex keys (for 180N, 360N) / adjusting tool (for 750N, 1400N)
Traceable calibration certificate (ISO/JCSS)
Operating manual (jap./eng.)

Options / Accs / Spares

Limit switch (LS) types and wireless (FH) types are available upon request.
Special model such as TiEQL550N is also available upon request.

Alternative Products

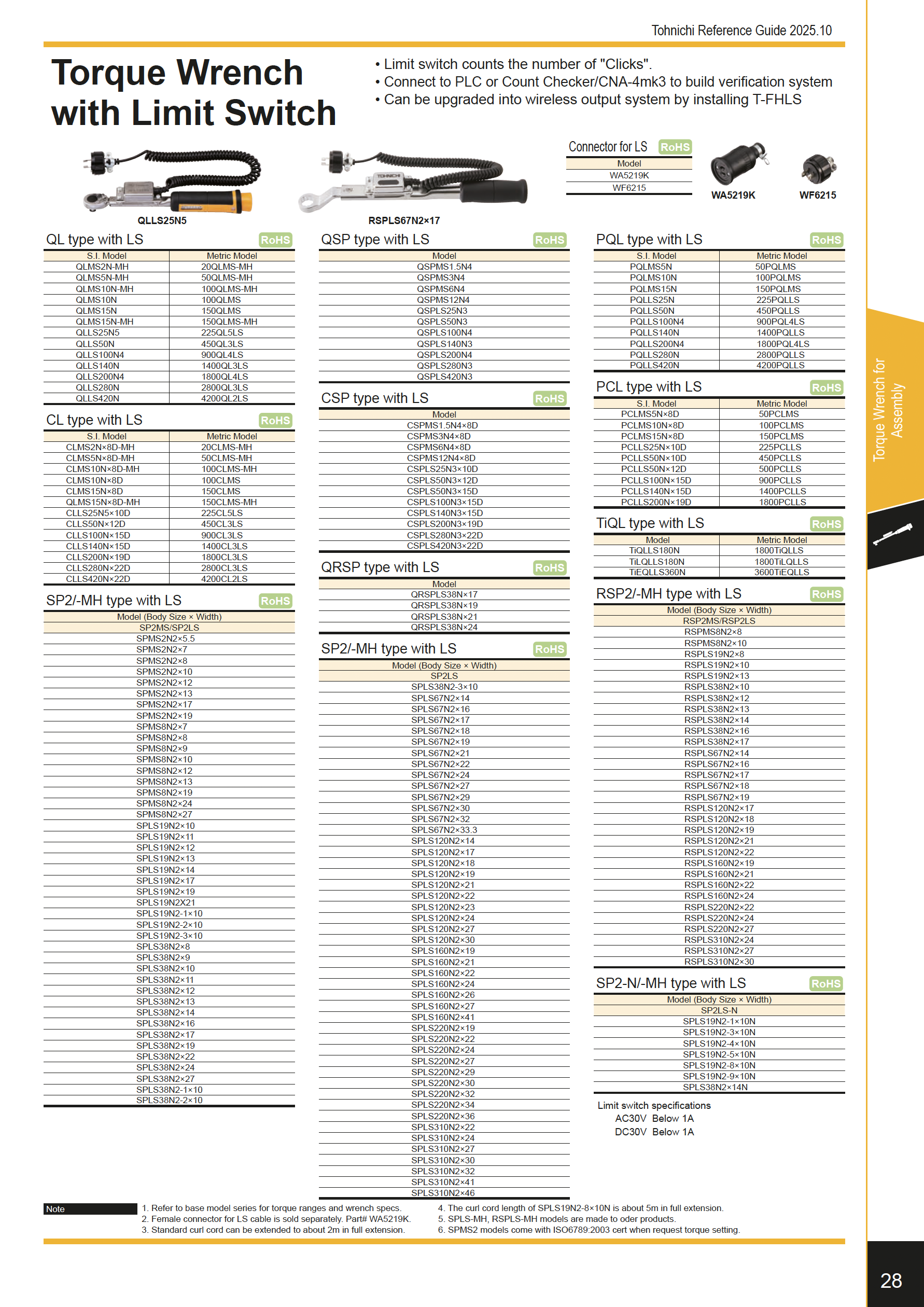

Series TiQL-LS with limit switch und curly cable to connect to PLC or the like (see Downloads)

TiQL – S.I. Model (Nm)

Model	Item No.	Torque Range [N·m]	Graduation	SqD [inch]	Lenmgth [mm]	Weight [kg]
TiQL180N	T212150	40 - 180	2	1/2	494	0.9
TiLQL180N	T212152	40 - 180	2	1/2	594	1.0
TiEQL360N	T212154	80 - 360	2	3/4	990	2.4
TiEQL750N	T212156	100 - 750	5	3/4	1365	4.5
TiEQLE1400N	T212158	200 - 1400	10	1	1794	7.5

TiQL – Metric (kgf)

Model	Item No.	Torque Range [kgf·cm]	Torque Range [kgf·m]	Graduation	SqD [inch]	Length [mm]	Weight [kg]
1800TiQL	T212151	400 - 1800	–	20	1/2	494	0.9
1800TiLQL	T212153	400 - 1800	–	20	1/2	594	1.0
3600TiEQL	T212155	–	8 - 36	0.2	3/4	990	2.4
7500TiEQL	T212157	–	10 - 75	0.5	3/4	1365	4.5
14000TiEQL	T212159	–	20 - 140	1	1	1794	7.5

Data according to specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.

The TiQL/TiLQL/TiEQL(E) series are compliant with ISO 6789:2017 starting January 2022. Calibration Certificates will be different from older products.

All technical data without guarantee, errors and omissions excepted.
