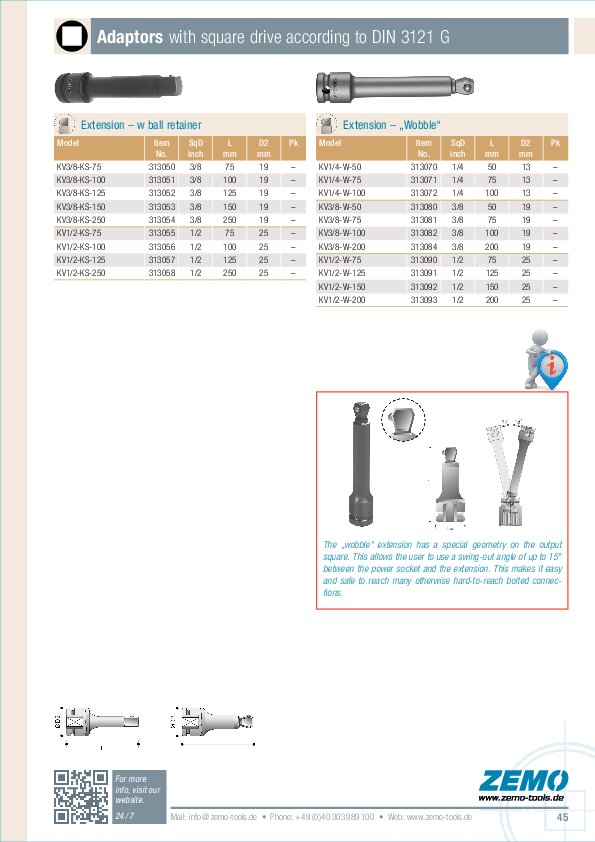

Extension w ball retainer
square drive in/out acc DIN 3121 G
Extension – ball retainer
| Model | Item No. | SqD [inch] | L [mm] | D2 [mm] | Pk |
|---|---|---|---|---|---|
| KV3/8-KS-75 | 313050 | 3/8 | 75 | 19 | – |
| KV3/8-KS-100 | 313051 | 3/8 | 100 | 19 | – |
| KV3/8-KS-125 | 313052 | 3/8 | 125 | 19 | – |
| KV3/8-KS-150 | 313053 | 3/8 | 150 | 19 | – |
| KV3/8-KS-250 | 313054 | 3/8 | 250 | 19 | – |
| KV1/2-KS-75 | 313055 | 1/2 | 75 | 25 | – |
| KV1/2-KS-100 | 313056 | 1/2 | 100 | 25 | – |
| KV1/2-KS-125 | 313057 | 1/2 | 125 | 25 | – |
| KV1/2-KS-250 | 313058 | 1/2 | 250 | 25 | – |
Extension – ball retainer – wobble
| Model | Item No. | SqD [inch] | L [mm] | D2 [mm] | Pk |
|---|---|---|---|---|---|
| KV1/4-W-50 | 313070 | 1/4 | 50 | 13 | – |
| KV1/4-W-75 | 313071 | 1/4 | 75 | 13 | – |
| KV1/4-W-100 | 313072 | 1/4 | 100 | 13 | – |
| KV3/8-W-50 | 313080 | 3/8 | 50 | 19 | – |
| KV3/8-W-75 | 313081 | 3/8 | 75 | 19 | – |
| KV3/8-W-100 | 313082 | 3/8 | 100 | 19 | – |
| KV3/8-W-200 | 313084 | 3/8 | 200 | 19 | – |
| KV1/2-W-75 | 313090 | 1/2 | 75 | 25 | – |
| KV1/2-W-125 | 313091 | 1/2 | 125 | 25 | – |
| KV1/2-W-150 | 313092 | 1/2 | 150 | 25 | – |
| KV1/2-W-200 | 313093 | 1/2 | 200 | 25 | – |
All specifications without guarantee, errors and omissions excepted.
