Mountz FG OWC Preset Torque Screwdriver
One-Way-Clutch Preset Cam-Over Torque Screwdrivers
Mountz Torque FG-OWC (one-way clutch) torque screwdrivers use a one-way torque clutch system designed to apply torque in one direction and remain positive in the opposite direction, which allows the tool to be used for easy screw removal. Torque range suitable for micro, low, and medium torque applications.
This makes the FG-OWC ideal for maintenance and refurbishing applications where undoing or loosening screws is required.
Cam-over technology reduces the possibility of operator error in the clockwise fastening direction, which ensures correct torque is applied and prevents fastener breakage.
Providing the operator with a pre-set tool prevents tool tampering and ensures that the appropriate torque setting is always used.
Error-Proofing
- Engineered with a cam-over mechanism, cam-over poka-yoke torque screwdrivers reduce the possibility of operator error in the clockwise fastening direction, ensuring correct torque is applied and preventing fastener breakage.
- Providing the operator with a preset tool prevents tampering and ensures that operators always use the appropriate torque setting – unmatched security of the tamper-proof internal adjustment. No external adjustment scale – must be preset using a torque analyzer.
Process Improvement
- Uses colour-coded label options for visible and easy-to-understand torque setting identification.
Ergonomics
- Ergonomic handles are designed with fewer flutes and larger recesses to make the tools easier to hold, and less likely to cause hand fatigue.
Advanced Technology
- Screwdriver is a one-way clutch system designed for the screwdriver to apply torque in one direction and lockup in the opposite direction for easy screw removal. Ideal for maintenance and refurbishing applications. OWC (one-way clutch) screwdriver torques in the CW direction only.
- Mountz torque unique bearing system eliminates axial load and sideloads on the fastener applied by the operator.
- Mountz tools use a patented secure bit locking mechanism with a one-touch release so that the operator can activate it to enable greater flexibility of applications and efficiency on the line.
- Reduced bit wear lowers the incidence of bits falling out, which can slow production or cause product damage.
- The new design improves serviceability, reduces downtime, and enables the replacement of individual parts to extend the life of your investment.
Model | Label Colour | Item No. | Torque Range [lbf·in] | Torque Range [cN·m] | Torque Range [N·m] | Length [mm] | Weight [kg] |
---|---|---|---|---|---|---|---|

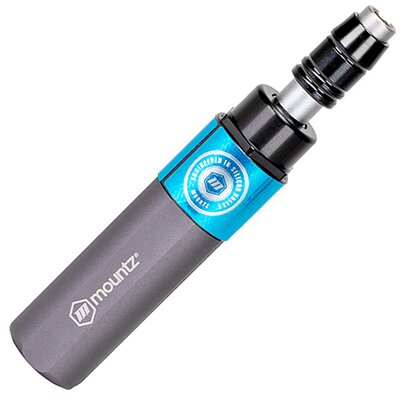

FG-8i OWC | BLU | M 076586 | 0.8 - 8 | 9 - 90 | – | 132 | 0.21 |
FG-8i OWC | RED | M 076591 | 0.8 - 8 | 9 - 90 | – | 132 | 0.21 |
FG-8i OWC | GRN | M 076596 | 0.8 - 8 | 9 - 90 | – | 132 | 0.21 |
FG-8i OWC | GLD | M 076601 | 0.8 - 8 | 9 - 90 | – | 132 | 0.21 |
FG-20i OWC | BLU | M 076587 | 2 - 20 | 22 - 226 | – | 132 | 0.21 |
FG-20i OWC | RED | M 076592 | 2 - 20 | 22 - 226 | – | 132 | 0.21 |

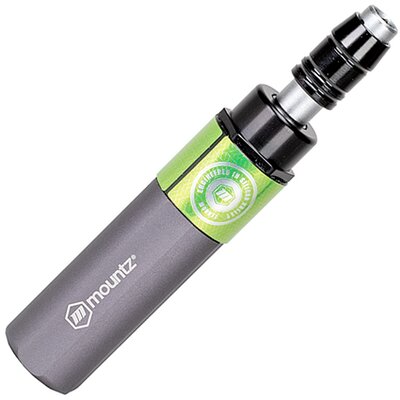

FG-20i OWC | GRN | M 076597 | 2 - 20 | 22 - 226 | – | 132 | 0.21 |
FG-20i OWC | GLD | M 076602 | 2 - 20 | 22 - 226 | – | 132 | 0.21 |
FG-40i OWC | BLU | M 076588 | 4 - 40 | 45 - 452 | 0.45 - 4.5 | 160 | 0.33 |

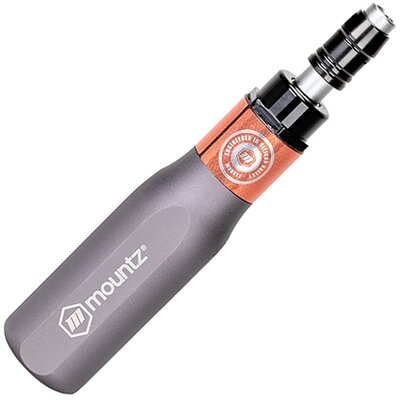

FG-40i OWC | RED | M 076593 | 4 - 40 | 45 - 452 | 0.45 - 4.5 | 160 | 0.33 |
FG-40i OWC | GRN | M 076598 | 4 - 40 | 45 - 452 | 0.45 - 4.5 | 160 | 0.33 |
FG-40i OWC | GLD | M 076603 | 4 - 40 | 45 - 452 | 0.45 - 4.5 | 160 | 0.33 |
FG-125i OWC | BLU | M 076589 | 25 - 125 | – | 2.8 - 14.1 | 160 | 0 33 |
FG-125i OWC | RED | M 076594 | 25 - 125 | – | 2.8 - 14.1 | 160 | 0.33 |
FG-125i OWC | GRN | M 076599 | 25 - 125 | – | 2.8 - 14.1 | 160 | 0.33 |
FG-125i OWC | GLD | M 076604 | 25 - 125 | – | 2.8 - 14.1 | 160 | 0.33 |
Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable. Designed and manufactured to meet or exceed the accuracy and repeatability requirements of ISO 6789:2017 (± 6% of setting).
Colour codes: BLU = Blue, RED = Red, GRN = Green, GLD = Gold.

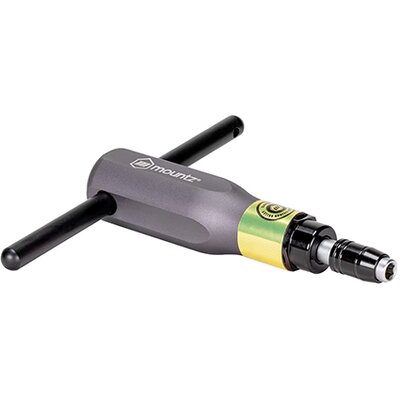

NOTE: A removable, sliding T-bar is supplied with FG-40i and 125i models.
All technical data without guarantee, errors and omissions excepted.
