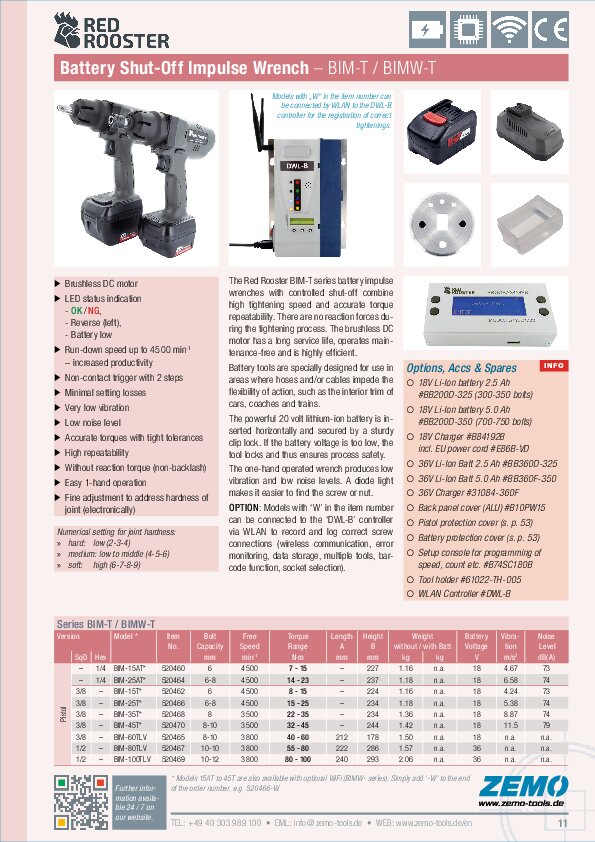

Red Rooster BIM-T Shut-Off Battery Impulse Wrench

Capacity 15 / 25 / 35 / 45 / 65 / 80 / 100 Nm

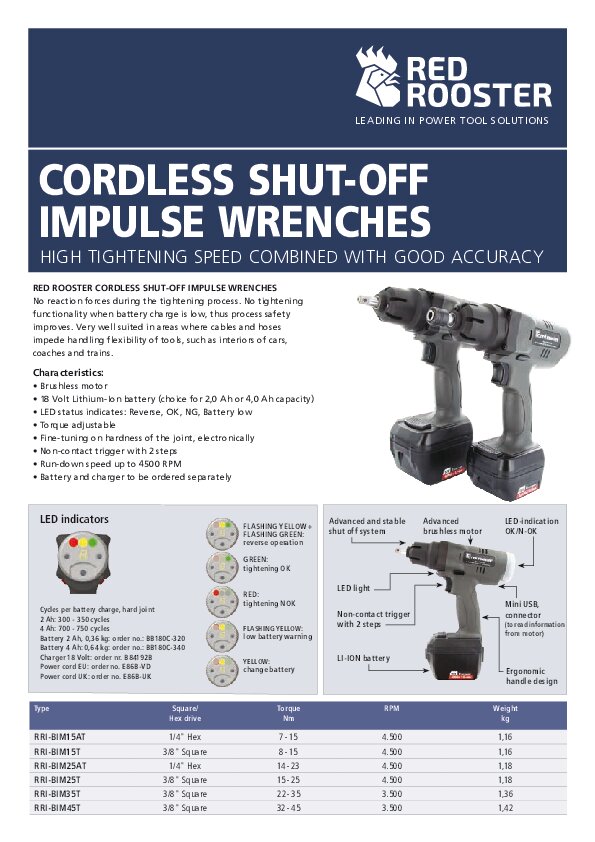

Battery Impulse Tool with Controlled Shut-Off



High tightening speed combined with good accuracy. No reaction forces during the tightening process. Brushless motor for long motor life and high efficiency. No tightening functionality when battery charge is low, thus process safety improves. Very well suited in areas where cables and hoses impede handling flexibility of tools, such as interiors of cars, coaches and trains.



The high performance lithium ion battery is pushed in horizontally and secured by a clip lock against slipping out. At too low battery level the tool will immediately stop to ensure process reliability.



Models with "W" in the item number can be connected by WLAN to the DWL-B controller for the registration of correct tightenings.



Features BIM-T



  • Accurate torque with close tolerance
  • High repeatability
  • No kickback
  • High speed – increased productivity
  • Non-contact trigger with 2 steps
  • LED indication of OK/NOK, reverse (ccw), battery low
  • Brushless DC motor
  • Fine-tuning on hardness of the joint, electronically
  • One hand operation



Features DWL-B



  • Wireless communication
  • Error proofing
  • Prevent missing screw
  • Tightening data storage
  • Multi-tools transmission
  • Barcode scanning function (BCAW & BCPW)
  • Socket Selecting function (BCAW & BCPW)



Scope of Supply



  • Impulse Tool (w/o battery)
  • Operating Manual






Options / Accs / Spares



  • 18V Li-Ion Battery 2.5 Ah #BB200D-325
    18V Li-Ion Battery 5.0 Ah #BB200D-350
  • 18V Charger #B84192B (incl EU power cord)
  • EU Power Cord #E86B-VD



  • 36V Li-Ion Battery 2.5 Ah #BB360D-325
  • 36V Li-Ion Battery 5.0 Ah #BB360F-350
  • 36V Charger #31084-360F



  • Pistol Protection Cover for RRI-BIM15T #C16PW15
    Pistol Protection Cover for RRI-BIM25T/35T #C16PW25
    Pistol Protection Cover for RRI-BIM45T #C16PW45
    Pistol Protection Cover for RRI-BIM65T #C16PW65
  • Battery Protection Cover for BB200D-325 #33116-B200D-01
    Battery Protection Cover for BB200D-350 #33116-B200D-02
  • Back Panel Cover (ALU) #B10PW15
  • Setup Console for programming of speed, counter etc #B74SC180B
  • Tool Holder #61022-TH005
Series BIM-T
 Model Item No. Hex [inch] SqD [inch] Torque Range [N·m] Free Speed [1/min] Weight [kg] Battery [V]
RRI-BIM15AT 520460 1/4 7 - 15 4500 1.16 18
RRI-BIM15T 520462 3/8 8 - 15 4500 1.16 18
RRI-BIM25AT 520464 1/4 14 - 23 4500 1.18 18
RRI-BIM25T 520466 3/8 15 - 25 4500 1.18 18
RRI-BIM35T 520468 3/8 22 - 35 3500 1.36 18
RRI-BIM45T 520470 3/8 32 - 45 3500 1.42 18
RRI-BIM60TLV 520465 3/8 40 - 60 3800 1.50 18
RRI-BIM80TLV 520467 1/2 55 - 80 3800 1.57 36
RRI-BIM100TLV 520469 1/2 80 - 100 3800 2.06 36
Series BIMW-T w Wireless LAN
Model Item No. Hex [inch] SqD [inch] Torque Range [N·m] Free Speed [rpm] Weight [kg] Battery [V]
RRI-BIMW15AT 520460-W 1/4 7 - 15 4500 1.16 18
RRI-BIMW15T 520462-W 3/8 8 - 15 4500 1.16 18
RRI-BIMW25AT 520464-W 1/4 14 - 23 4500 1.18 18
RRI-BIMW25T 520466-W 3/8 15 - 25 4500 1.18 18
RRI-BIMW35T 520468-W 3/8 22 - 35 3500 1.36 18
RRI-BIMW45T 520470-W 3/8 32 - 45 3500 1.42 18

Specification according to manufacturer, all data without guarantee, technical changes or errors excepted. Weight w/o battery.
