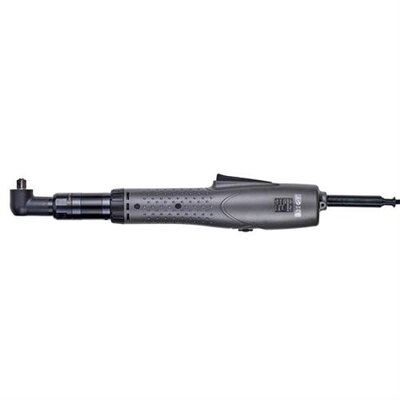

Red Rooster ESA Electric Angle Screwdriver

Capacity 9 / 13 / 18 Nm

DC Electric Screwdriver with Angled Head

The RED ROOSTER electrical brushless screwdrivers have a wide torque-range, are highly accurate and have a low vibration level. Very ergonomic design including ESD safe body material. The special design of the clutch combines low reaction forces with a high repeatability of the torque. This corded tool is designed for the assembly industry, where threaded fasteners are used.

Features

Reversible
Soft ergonomic grip
Starting lever is contactless which allows for high durability
Stepless adjustable torque level
ESD safe body material

Scope of Delivery

Electric screwdriver
Standard power controller
AC cord 1.8m
DC cord 2m
Clutch cover

Options / Accs / Spares

Power controller # DE9T-8301
DC cord 2m # DE9T-8204

Power sockets –> Drive 3/8

Options / Accs / Spares

Power controller #DE9T-8301
DC cord 2 m #DE9T-8204

>>> Announced for late 2025. More info asap. Stay tuned. <<<

Series ESA

Model	Item No.	Bolt Cap. [mm]	Torque [N·m]	Speed [rpm]	SqD [inch]	Length [mm]	Weight [kg]
ESA 91470W	◻︎	6	3 - 9	1350	3/8	384	1.48
ESA 907130W	◻︎	8	5 - 13	650	3/8	384	1.48
ESA 906180W	◻︎	10	7 - 18	550	3/8	384	1.48

> All details are provisional. Subject to errors and changes. <
