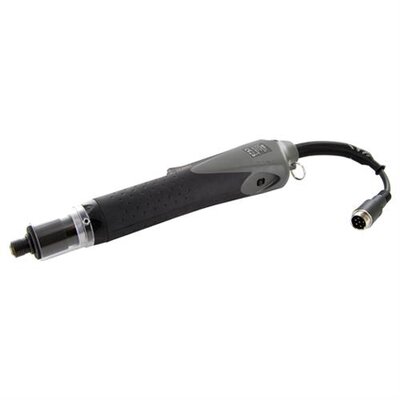

Red Rooster ESL Electric Screwdriver

Capacity 0.2 / 0.3 / 0.4 / 0.7 / 0.9 / 1.1 / 1.4 / 1.9 / 2.9 / 3.9 / 4.9 / 6 / 9 / 12 Nm

DC Electric Screwdriver with Lever Start

The RED ROOSTER electrical brushless screwdrivers have a wide torque-range, are highly accurate and have a low vibration level. Very ergonomic design including ESD safe body material. The special design of the clutch combines low reaction forces with a high repeatability of the torque. This corded tool is designed for the assembly industry, where threaded fasteners are used.

Features

Dual Speed (dep on model)
Reversible
Soft ergonomic grip
Starting lever is contactless which allows for high durability
Stepless adjustable torque level
ESD safe body material
Clutch cover can prevent unauthorized torque adjustment

Scope of Delivery

Electric screwdriver
Standard power controller
AC cord 1.8 m
DC cord 2 m
Clutch cover

Options / Accs / Spares

Torque adjustment tool
#DE1L-0012 for ESL1xxxx
#DE3L-0012 for ESL3xxxx
#DE5L-0012 for ESL5xxxx
#DE7L-0012 for ESL7xxxx
Clutch housing cover
#DE1L-2026 for ESL1xxxx
#DE3L-2026 for ESL3xxxx
#DE5L-2026 for ESL5xxxx
#DE7L-2026 for ESL7xxxx
Power controller
#DE1L-8301 for ESL1xxxx
#DE3L-8301 for ESL3xxxx
#DE5L-8301/8301B for ESL5xxxx
#DE7L-8301/8301B for ESL7xxxx
#DE9T-8301 for ESL9xxxx
DC cord 2m
#DE3L-8204
Tool holder (holster)
#DE1L-0024 for ESL1xxxx
#DE3L-0024 for ESL3xxxx
#DE5L-0024 for ESL5xxxx
#DE7L-0024 for ESL7xxxx
#DE9L-0024 for ESL9xxxx
Handle (pistol grip) for lever start
#DE1L-1078 for ESL1xxxx
#DE3L-1078 for ESL3xxxx
#DE5L-1078 for ESL5xxxx
#DE7L-1078 for ESL7xxxx
#DE9L-1078 for ESL9xxxx

Cross-head bits
#DE1L-0003B = P00 for ESL1xxxx
#DE1L-0003C = P0 for ESL1xxxx
#DE1L-0003G = P1 for ESL1xxxx
#DE1L-0003H = P2 for ESL1xxxx

Spring balancer –> Type TW

Power screwdriver bits –> Drive E6.3 for ESL3...ESL9xxxx

>>> Announced for late 2025. More info asap. Stay tuned. <<<

Series ESL – 4 mm Wing

Model	Item No.	Bolt Cap. [mm]	Torque [N·m]	Speed [rpm]	Bit [mm]	Length [mm]	Weight [kg]
RRI - ESL10302	540101	2.3	0.03 - 0.17	270 / 200	4	223	0.32
RRI - ESL11002	540103	1.5	0.03 - 0.17	1000 / 700	4	223	0.32
RRI - ESL11003	540105	2.0	0.05 - 0.34	1000 / 700	4	223	0.32
RRI - ESL10303	540107	2.0	0.05 - 0.34	270 / 200	4	223	0.32

Series ESL – 1/4 Inch Hex

Model	Item No.	Bolt Cap. [mm]	Torque [N·m]	Speed [rpm]	Bit [inch]	Length [mm]	Weight [kg]
RRI - ESL30504	540201	2.3	0.11 - 0.39	470 / 350	1/4	239	0.43
RRI - ESL31604	540203	2.3	0.11 - 0.39	1600 / 1200	1/4	239	0.43
RRI - ESL31007	540205	2.3	0.12 - 0.73	1000 / 700	1/4	239	0.43
RRI - ESL52010	540207	2.6	0.29 - 0.98	2000 / 1500	1/4	283	0.67
RRI - ESL30511	540209	2.6	0.2 - 1.07	470 / 350	1/4	239	0.43
RRI - ESL31011	540211	2.3	0.2 - 1.07	1000 / 700	1/4	239	0.43
RRI - ESL51111	540213	2.6	0.29 - 1.08	1100 / 800	1/4	283	0.67
RRI - ESL50300	540215	2.6	0.29 - 1.08	330 / 240	1/4	283	0.67
RRI - ESL30514	540217	3.0	0.29 - 1.37	470 / 350	1/4	239	0.43
RRI - ESL50320	540219	3.0	0.49 - 1.96	330 / 240	1/4	283	0.67
RRI - ESL51120	540221	3.0	0.49 - 1.96	1100 / 800	1/4	283	0.67
RRI - ESL71930	540223	3.5	1.47 - 2.94	1900	1/4	307	0.85
RRI - ESL71030	540225	3.5	1.47 - 2.94	1000	1/4	307	0.85
RRI - ESL70330	540227	3.5	1.47 - 2.94	260	1/4	307	0.85
RRI - ESL71040	540229	4.0	1.67 - 3.92	1000	1/4	307	0.85
RRI - ESL70750	540231	4.0	1.96 - 4.9	650	1/4	307	0.85
RRI - ESL70350	540233	4.0	1.96 - 4.9	260	1/4	307	0.85
RRI - ESL92150	540235	5.0	3 - 9	2100	1/4	n.a.	1.15
RRI - ESL91070	540237	6	3 - 9	1000	1/4	339	1.15
RRI - ESL909100	540239	8	5 - 12	880	1/4	339	1.15

> All details are provisional. Subject to errors and changes. <
