Red Rooster ESP Electric Pistol Screwdriver

Capacity 2 / 3 / 3.5 / 5 / 6 / 7 / 9 / 12 / 18 Nm

DC Electric Screwdriver in Pistol Shape

The RED ROOSTER electrical brushless screwdrivers have a wide torque-range, are highly accurate and have a low vibration level. Very ergonomic design including ESD safe body material. The special design of the clutch combines low reaction forces with a high repeatability of the torque. This corded tool is designed for the assembly industry, where threaded fasteners are used.

Features

Cabled either on top or bottom (due to model)
Reversible
Ergonomic grip
Trigger is contactless which allows for high durability
Stepless adjustable torque level
ESD safe body material
Optional clutch cover can prevent unauthorized torque adjustment

Scope of Delivery

Electric screwdriver
Standard power controller
AC cord 1.8m
DC cord 2m

Options / Accs / Spares

Torque adjustment tool
#DE7L-0012 for ESP7xxxx
Clutch housing cover
#DE7T-2026 for ESP7xxxx
Tool holder (holster)
#DE7T-0024 for ESP7xxxx
#61022-TH001 for ESP9xxxx

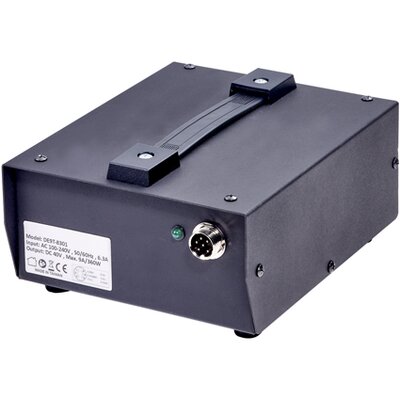

Power controller
#DE9T-8301
DC cord 2m
#DE9T-8204

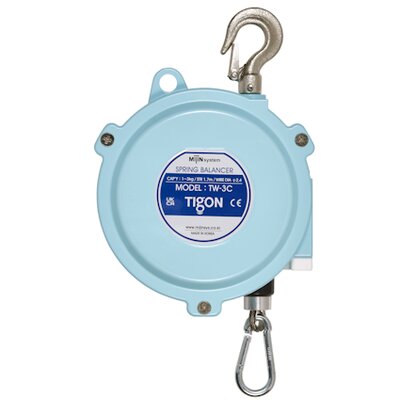

Spring balancer –> Type TW

Power screwdriver bits –> Drive E6.3

>>> Announced for late 2025. More info asap. Stay tuned. <<<

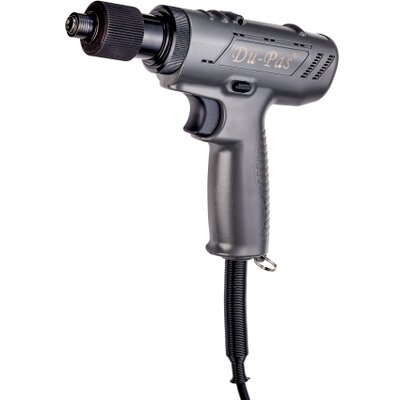

Series ESP - D

Model	Item No.	Bolt Cap. [mm]	Torque [N·m]	Speed [rpm]	Hex [inch]	Length [mm]	Weight [kg]
RRI - ESP71420-D	540601	3.5	0.3 - 2	1400	1/4	197	0.9
RRI - ESP73320-D	540603	4	1.0 - 3	3300	1/4	197	0.9
RRI - ESP71630-D	540605	4	1.2 - 3.5	1600	1/4	197	0.9
RRI - ESP71240-D	540607	5	2.0 - 5	1200	1/4	197	0.9
RRI - ESP91050-D	540609	5	2.0 - 6	1000	1/4	249	1.4
RRI - ESP71060-D	540611	6	2.5 - 7	950	1/4	197	0.9
RRI - ESP90870-D	540613	6	3.0 - 9	770	1/4	249	1.4
RRI - ESP906100-D	540615	8	4.0 - 12	550	1/4	249	1.4
RRI - ESP904140-D	540617	10	6.0 - 18	350	1/4	249	1.4

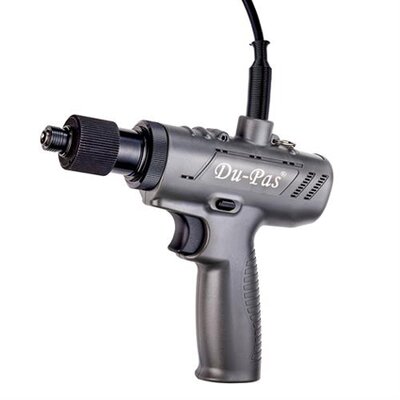

Series ESP - U

Model	Item No.	Bolt Cap. [mm]	Torque [N·m]	Speed [rpm]	Hex [inch]	Length [mm]	Weight [kg]
RRI - ESP71420-U	540701	3.5	0.3 - 2	1400	1/4	197	0.9
RRI - ESP73320-U	540703	4	1.0 - 3	3300	1/4	197	0.9
RRI - ESP71630-U	540705	4	1.2 - 3.5	1600	1/4	197	0.9
RRI - ESP71240-U	540707	5	2.0 - 5	1200	1/4	197	0.9
RRI - ESP91050-U	540709	5	2.0 - 6	1000	1/4	249	1.4
RRI - ESP71060-U	540711	6	2.5 - 7	950	1/4	197	0.9
RRI - ESP90870-U	540713	6	3.0 - 9	770	1/4	249	1.4
RRI - ESP906100-U	540715	8	4.0 - 12	550	1/4	249	1.4
RRI - ESP904140-U	540717	10	6.0 - 18	350	1/4	249	1.4

> All details are provisional. Subject to errors and changes. <
