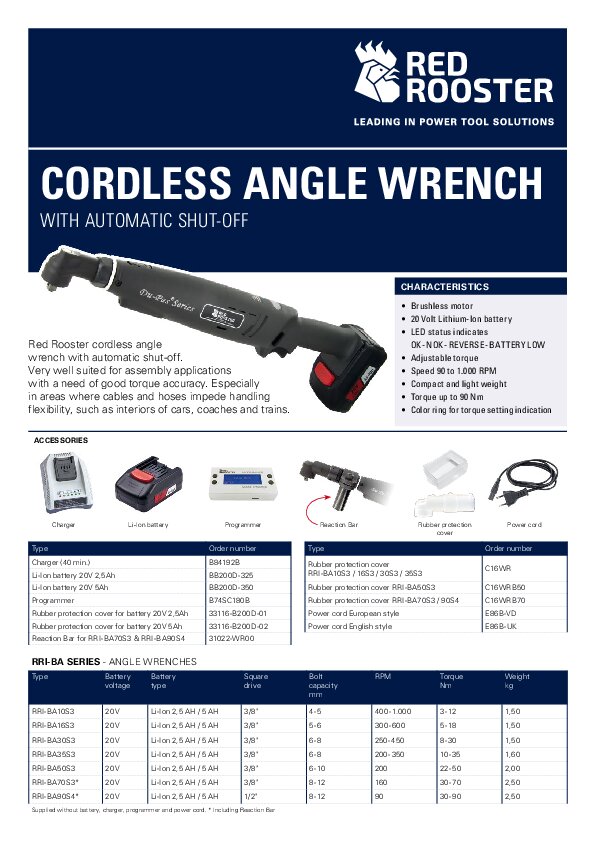

Downloads

Red Rooster RRI-BA Battery Angle Nutrunner

Capacity 10 / 16 / 30 / 35 / 50 / 70 / 90 Nm

Cordless Shut-off Angle Nutrunner

RED ROOSTER cordless angle wrench with automatic shut-off. Very well suited for assembly applications with a need of good torque accuracy. Especially in areas where cables and hoses impede handling flexibility, such as interiors of cars, coaches and trains. Models with "W" in the item number can be connected by WLAN to the DWL-B controller for the registration of correct tightenings.

Features RRI-BA

Brushless DC motor
Lithium-Ion battery, choice for 2.5 Ah or 5.0 Ah capacity
LED status indicates OK - NOK - REVERSE - BATTERY LOW
Adjustable torque
Compact and light weight

Features DWL-B

Wireless communication
Error proofing
Prevent missing screw
Tightening data storage
Multi-tools transmission
Barcode scanning function (BCAW & BCPW)
Socket Selecting function (BCAW & BCPW)

Scope of Supply

Battery Angle Nutrunner
Torque Adjust Key # 00-4507

Battery and charger to be ordered separately.

Options / Accs / Spares

20V Li-ion Battery 2.5 Ah # BB200D-325 (0.39 kg)
20V Li-ion Battery 5.0 Ah # BB200D-350 (0.67 kg)
Battery Charger # B84192B
EU Power Cord # E86B-VD
Programmer # B74SC180B

Protection Cover (tool head)
Protection Cover (battery)
Torque Adjust Key # 00-4507
Tool Holder (depending on model)

Series RRI-BA

Model	Item No.	SqD [inch]	Torque [N·m]	Bolt Cp [mm]	Speed [rpm]	Length [mm]	Weight [kg]
RRI-BA10S3	520420	3/8	3 - 12	4–5	400–1000	441	1.5
RRI-BA16S3	520422	3/8	5 - 18	5–6	300–600	441	1.5
RRI-BA30S3	520424	3/8	8 - 30	6–8	250–450	446	1.5
RRI-BA35S3	520426	3/8	10 - 35	6–8	200–350	446	1.6
RRI-BA50S3	520428	3/8	22 - 50	6–10	200	521	2.0
RRI-BA70S3	520430	3/8	30 - 70	8–12	160	535	2.5
RRI-BA70S4	520434	1/2	30 - 70	8–12	160	535	2.5
RRI-BA90S4	520432	1/2	30 - 90	8–12	90	535	2.5

Series RRI-BAW

Model	Item No.	SqD [inch[	Torque [N·m]	Bolt Cp [mm]	Speed [rpm]	Length [mm]	Weight [kg]
RRI-BAW10S3	520420-W	3/8	3 - 12	4–5	400–1000	441	1.5
RRI-BAW16S3	520422-W	3/8	5 - 18	5–6	300–600	441	1.5
RRI-BAW30S3	520424-W	3/8	8 - 30	6–8	250–450	446	1.5
RRI-BAW35S3	520426-W	3/8	10 - 35	6–8	200–350	446	1.6
RRI-BAW50S3	520428-W	3/8	22 - 50	6–10	200	521	2.0
RRI-BAW70S3	520430-W	3/8	30 - 70	8–12	160	535	2.5
RRI-BAW90S4	520432-W	1/2	30 - 90	8–12	90	535	2.5

Specification according to manufacturer. All information without guarantee, subject to change without notice. Weight without battery.

Models with "W" in the article number can be connected by WLAN to the DWL-B controller for the registration of correct tightenings.
