S9/S14 - Box Head
S9/S14 - Box Head
S9/S14 - Box Head
S9/S14 - Box Head
S9/S14 - Box HeadS9/S14 - Box Head
Downloads
S9/S14 - Box Head

Features

Centre Line: miscellaneous
  • Double hex point force transmission.
  • Rectangle insert 9×12 mm rsp. 14×18 mm.
  • Centre line 17.5 mm rsp. 25 mm.
  • Forged alloy steel, chrome plated.

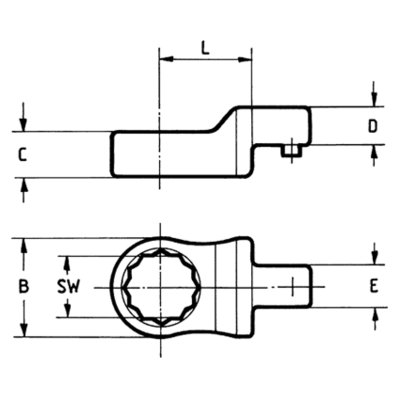

S9-BH
Model Item No. A/F
mm		 L
mm		 B
mm		 C
mm		 D
mm		 E
mm		 Weight
kg
S9 BH 7 R716001 7 17,5 13 8 9 12 0,037
S9 BH 8 R716002 8 17,5 14.2 8 9 12 0,037
S9 BH 10 R716004 10 17,5 17.2 9 9 12 0,041
S9 BH 11 R716005 11 17,5 18.5 9 9 12 0,040
S9 BH 12 R716006 12 17,5 20 12 9 12 0,049
S9 BH 13 R716007 13 17,5 21.5 12 9 12 0,051
S9 BH 14 R716008 14 17,5 23 12 9 12 0,051
S9 BH 15 R716009 15 17,5 24.2 12 9 12 0,054
S9 BH 16 R716010 16 17,5 25.7 13 9 12 0,054
S9 BH 17 R716011 17 17,5 27.2 13 9 12 0,060
S9 BH 18 R716012 18 17,5 28.5 13 9 12 0,057
S9 BH 19 R716013 19 17,5 30.3 13 9 12 0,047
S9 BH 21 R716014 21 17,5 33 15 9 12 0,072
S9 BH 22 R716015 22 17,5 34.5 15 9 12 0,071
S14-BH
Model Item No. A/F
mm		 L
mm		 B
mm		 C
mm		 D
mm		 E
mm		 Weight
kg
S14 BH 13 R716507 13 25 21.5 11 14 18 0,120
S14 BH 14 R716508 14 25 23 11 14 18 0,124
S14 BH 15 R716509 15 25 24.2 11 14 18 0,121
S14 BH 16 R716510 16 25 25.7 12 14 18 0,135
S14 BH 17 R716511 17 25 27.2 12 14 18 0,133
S14 BH 18 R716512 18 25 28.5 12 14 18 0,134
S14 BH 19 R716513 19 25 30.5 12 14 18 0,137
S14 BH 21 R716515 21 25 33 15 14 18 0,144
S14 BH 22 R716516 22 25 34.5 15 14 18 0,149
S14 BH 24 R716517 24 25 37.5 15 14 18 0,149
S14 BH 27 R716520 27 25 41.5 17 14 18 0,157
S14 BH 30 R716521 30 25 45 19 14 18 0,182
S14 BH 32 R716522 32 25 47.5 19 14 18 0,181
S14 BH 34 R716523 34 25 50.5 19 14 18 0,213
S14 BH 36 R716524 36 25 53 19 14 18 0,210
S14 BH 41 R716525 41 25 59 20 14 18 0,225
All specifications without guarantee, errors and omissions excepted.
