SMC Modular Combinations

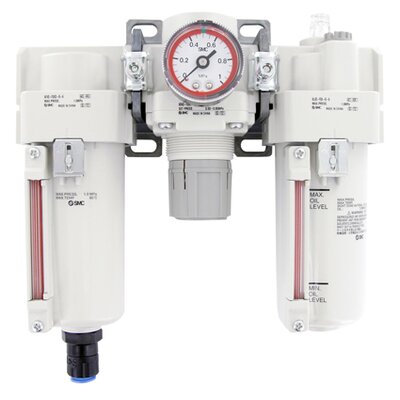

SMC‘s AC-B series consists of modular air filter sets, pressure regulators and lubricators that allow you to optimise the air quality and operating pressure of your system.

Features

Double-walled construction: container protection made of transparent polycarbonate. Visible 360° all around, lighter weight and corrosion protected.
Interchangeable with existing AC series by assembling individual components.
Element construction integrated into the container, element and cup form a whole. Built-in pressure gauge and switch of your choice:
-    Square, built-in pressure gauge
-    Attached, round pressure gauge
-    Digital pressure regulator
Material of the container of your choice:
-    Polycarbonate – standard model
-    Metal model – with and without level indicator
-    Nylon

Advantages

Transparent container: clearly visible liquid level
Quick filter change and easy filling with oil
Cup with bayonet closure: easy operation, quick and easy maintenance
Nylon container: resistant to chemicals and other substances
Metal container: robust, shockproof and resistant to chemicals
Built-in pressure gauge: solid construction without protruding parts

Applications

All equipment for air treatment in all sectors with pneumatic applications. Important industrial sectors:
Vehicle construction
Workshops
Mechanical Engineering

Options

Further connection combinations
Automatic drain (order no. + CE instead of E). For proper functioning, the drain line should have a minimum diameter of 8 mm and be no longer than 5 m.
Filter fineness 2, 10, 20, 40, 70, 100 µ
Metal or nylon container.

Note: In case of most severe mechanical and/or chemical stress, it is recommended to use metal containers, which offer a very high degree of protection. Polycarbonate containers can be attacked by certain acids.
