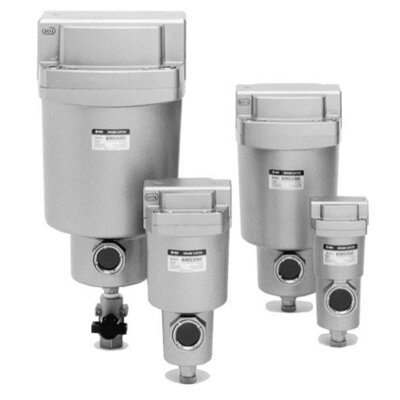

SMC Water Separators

By installing an AMG water separator, 99% of the water is separated from the compressed air in the simplest way. The AMG water separators are lightweight and compact. Available port sizes from 1/8" up to 2", therefore suitable for compressors (1-75 kW). Standard equipped with automatic drain for long term jobs. Long life due to the special resin with large mesh to reduce clogging.

You can use a water separator when:

• Air does not have to be dry for 100 %
• Air dryer cannot be used
• Air dryer is too expensive for needs

Features

• Lightweight and compact.
• 99% separation efficiency for water droplets.
• Flow capacity from 300 to 12000 l/min (ANR).
• Connection size 1/8“ to 2“.
• Standard with automatic drain for continuous use.
• Thanks to a large-mesh special filter element, no filter change is necessary.

Note: For optimal functioning of the separator, mount it as far away from the compressor as possible.
