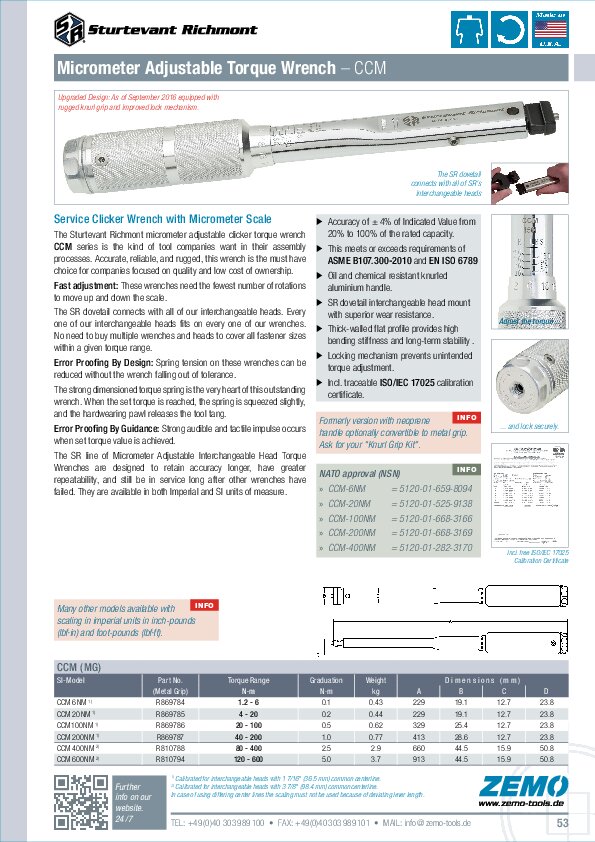

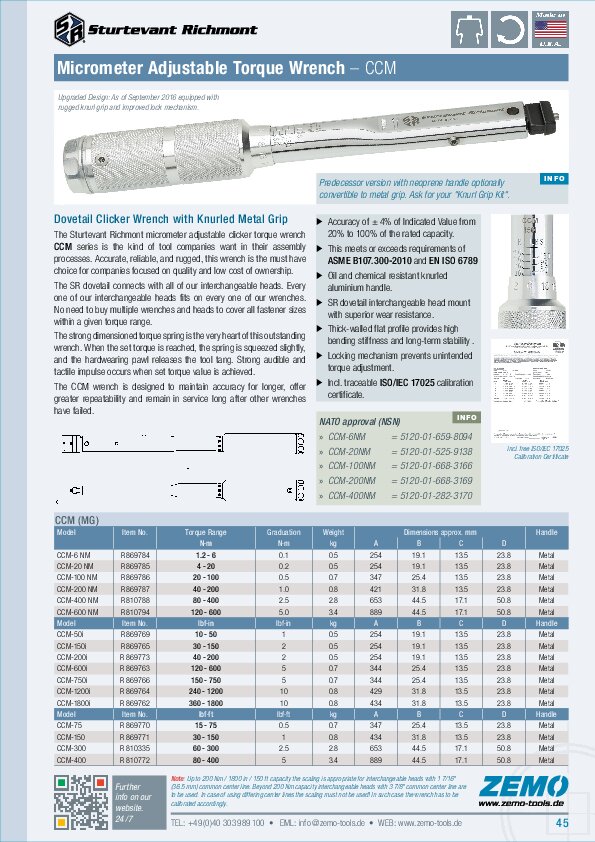

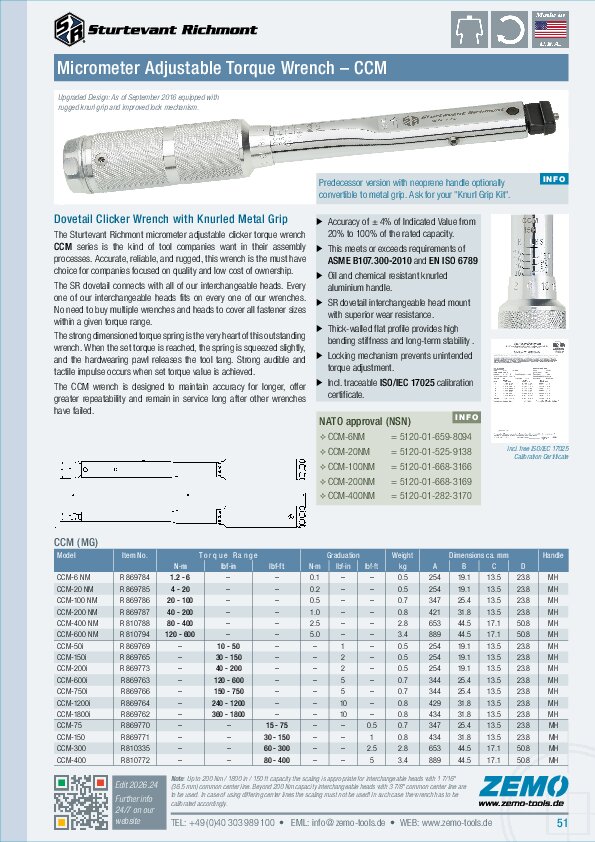

Sturtevant Richmont CCM Adjustable Torque Wrench
Micrometer Adjustable Clicker Wrench with Dovetail Tang
The Sturtevant Richmont micrometer adjustable torque wrench CCM series is the kind of tool companies want in their assembly processes. Accurate, reliable, and rugged, this wrench is the must have choice for companies focused on quality and low cost of ownership.
The SR dovetail connects with all of our interchangeable heads. Every one of our interchangeable heads fits on every one of our wrenches. No need to buy multiple wrenches and heads to cover all fastener sizes within a given torque range.
Fast Adjustment
These wrenches need the fewest number of rotations to move up and down the scale.
Error Proofing By Design
Spring tension on these wrenches can be reduced without the wrench falling out of tolerance. The solidly dimensioned torque spring is the core heart of this outstanding wrench. When the set torque is reached, the spring is compressed slightly and the low-wear pawl link releases the tool tang.
Error Proofing By Guidance
Strong audible and tactile impulse occurs when set torque value is achieved. The SR line of Micrometer Adjustable Interchangeable Head Torque Wrenches are designed to retain accuracy longer, have greater repeatability, and still be in service long after other wrenches have failed. They are available in both English and Metric units of measure.
Key Features
- Accuracy ± 4% of indicated value (within 20-100% of capacity).
- Meets or exceeds ASME B107.300-2010 and EN ISO 6789.
- SR dovetail connector with outstanding rigidity and wear resistance.
- Thick-walled housing profile provides high long-term stability.
- Fast adjustment – takes the fewest grip rotations of any tool to reach full scale.
- Simple thumbscrew mechanism locks handle to avoid unintended changing of torque setting.
- Oil and chemical resistant knurled handle grip.
- Strong audible and tactile impulse when the set torque is achieved.
Scope of Supply
- Torque wrench CCM
- Certification from SR's ISO/IEC 17025 Accredited Calibration Laboratory
- Operating manual
Option / Accs / Spares
- Old version with neoprene handle optionally convertible to metal handle. Ask for your "Knurl Grip Conversion Kit".
NATO approval (NSN)
- CCM6NM(MG) = 5120-01-659-8094
- CCM20NM(MG) = 5120-01-525-9138
- CCM100NM(MG) = 5120-01-668-3166
- CCM200NM(MG) = 5120-01-668-3169
- CCM400NM = 5120-01-282-3170
- CCM50i = 5120-01-394-4285
- CCM150i = 5120-01-394-4283
- CCM600i = 5120-01-394-4284
- CCM1200i = 5120-01-394-4250
- CCM1800i = 5120-01-394-4252
- CCM150 = 5120-01-394-4253
Model | Item No. | Torque Range [N·m] | Graduation | Weight [kg] | Length [mm] | Grip |
---|---|---|---|---|---|---|
CCM 6 NM MG | R 869784 | 1.2 - 6 | 0.1 | 0.4 | 254 | MG |
CCM 20 NM MG | R 869785 | 4 - 20 | 0.2 | 0.4 | 254 | MG |
CCM 100 NM MG | R 869786 | 20 - 100 | 0.5 | 0.6 | 347 | MG |
CCM 200 NM MG | R 869787 | 40 - 200 | 1 | 0.8 | 421 | MG |
CCM 300 NM MG | R 869792 | 60 - 300 | 2 | n.a. | n.a. | MG |
CCM 400 NM | R 810788 | 80 - 400 | 2.5 | 2.9 | 653 | MG |
CCM 600 NM | R 810794 | 120 - 600 | 5 | 3.7 | 889 | MG |
Note: Up to 200 Nm capacity the scaling is appropriate for interchangeable heads with 1 7/16" (36.5 mm) common center line. Beyond 200 Nm capacity interchangeable heads with 3 7/8" common center line are to be used. In case of using differing center lines the scaling must not be used! In such case the wrench has to be calibrated accordingly.
Model | Item No. | Torque Range [lbf·in] | Graduation | Weight [kg] | Length [mm] | Grip |
---|---|---|---|---|---|---|
CCM 50i MG | R 869769 | 10 - 50 | 1 | 0.4 | 254 | MG |
CCM 150i MG | R 869765 | 30 - 150 | 2 | 0.4 | 254 | MG |
CCM 200i MG | R 869773 | 40 - 200 | 2 | 0.4 | 254 | MG |
CCM 600i MG | R 869763 | 120 - 600 | 5 | 0.6 | 344 | MG |
CCM 750i MG | R 869766 | 150 - 750 | 5 | 0.6 | 344 | MG |
CCM 1200i MG | R 869764 | 240 - 1200 | 10 | 0.8 | 429 | MG |
CCM 1800i MG | R 869762 | 360 - 1800 | 10 | 0.8 | 429 | MG |
Note: Up to 1800 InLb capacity the scaling is appropriate for interchangeable heads with 1 7/16" (36.5 mm) common center line. In case of using differing center lines the scaling must not be used! In such case the wrench has to be calibrated accordingly.
Model | Item No. | Torque Range [lbf·ft] | Graduation | Weight [kg] | Length [mm] | Grip |
---|---|---|---|---|---|---|
CCM 75 MG | R 869770 | 15 - 75 | 0.5 | 0.6 | 347 | MG |
CCM 150 MG | R 869771 | 30 - 150 | 1 | 0.8 | 435 | MG |
CCM 300 | R 810335 | 60 - 300 | 2.5 | 2.9 | 653 | MG |
CCM 400 | R 810772 | 80 - 400 | 5 | 3.7 | 889 | MG |
Note: Up to 150 FtLb capacity the scaling is appropriate for interchangeable heads with 1 7/16" (36.5 mm) common center line. Beyond 150 FtLb capacity interchangeable heads with 3 7/8" common center line are to be used. In case of using differing center lines the scaling must not be used! In such case the wrench has to be calibrated accordingly.
Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.
MG = Knurled Metal Grip.
All specifications without guarantee, errors and omissions excepted.
