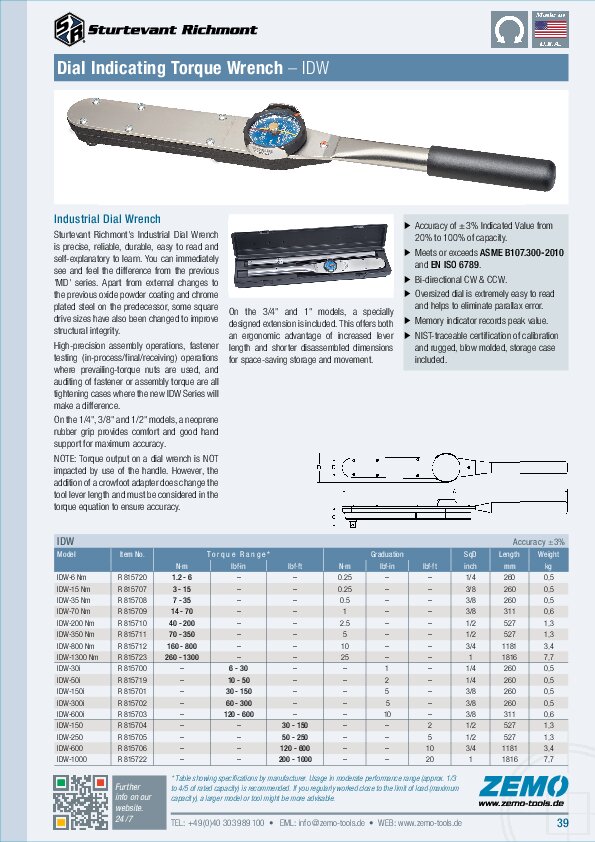

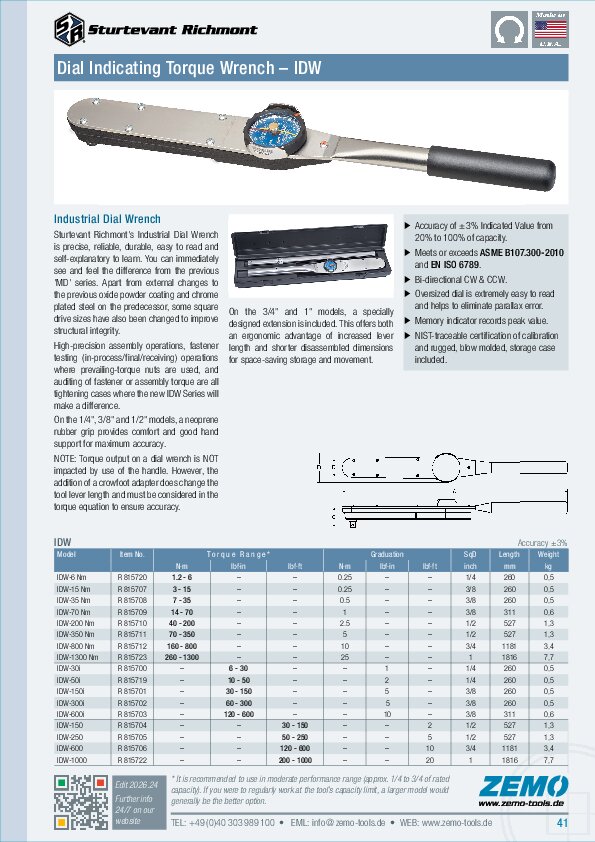

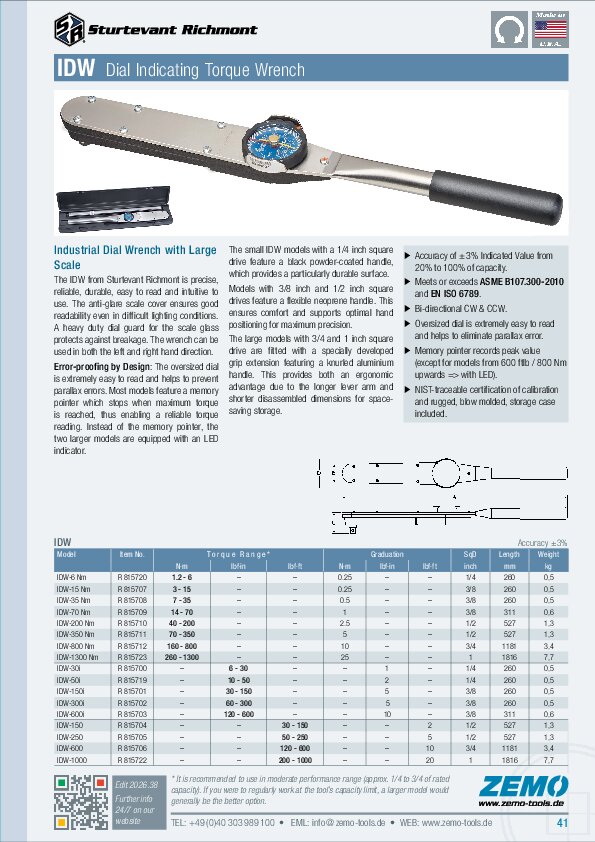

Sturtevant Richmont IDW Dial Indicating Torque Wrench

Capacity 30 / 50 / 150 / 300 / 600 lbf·in // 150 / 250 / 600 / 1000 lbf·ft

Industrial Dial Wrench

The IDW series from Sturtevant Richmont is precise, reliable, durable, easy to read and intuitive to use. The anti-glare scale cover ensures good readability even in difficult lighting conditions. A robust protective cover for the scale glass prevents breakage.

The small IDW models with 1/4 inch square drive feature a black powder-coated handle, which provides a particularly durable surface. Models with 3/8 inch and 1/2 inch square drives feature a flexible neoprene handle. This ensures comfort and supports optimal hand positioning for maximum precision.

The large models with 3/4 and 1 inch square drive are fitted with a specially developed grip extension featuring a knurled aluminium handle. This provides both an ergonomic advantage due to the longer lever arm and shorter disassembled dimensions for space-saving storage.

Error-proofing by Design

The oversized dial is extremely easy to read and helps to prevent parallax errors. Most models feature a drag pointer which stops when maximum torque is reached, thus enabling a reliable torque reading. Instead of a memory pointer, the two larger models are equipped with an LED indicator.

Key Features

Accuracy of ± 3% Indicated Value from 20% to 100% of capacity
Meets or exceeds ASME B107.300-2010 and EN ISO 6789.
Heavy duty dial guard protects against breakage.
Insensitive to point of force application.
Large dial for easy reading.
Peak value tracking pointer (models from 800 Nm with LED).
Heavy-duty guard protects the dial glass from breakage.
Rugged housing made of cast aluminium and brushed steel.

Scope of Supply

Dial torque wrench IDW
Rugged, blow molded, storage case
Free NIST-traceable tabulated certification included.
Operating instructions
A specially-designed extension handle is included on tools of 600 lbf·ft/800 N·m and greater capacity.

NATO Stock Number (NSN)

5120-00-117-4832 = IDW-30I
5120-00-221-7983 = IDW-600
5120-00-230-6380 = IDW-150I
5120-00-555-1521 = IDW-1000
5120-01-707-8065 = IDW-600I

IDW – S.I. Model (Nm)

Model	SKU	Torque Range [N·m]	Graduation	SqD [inch]	L [mm]	Weight [kg]	GTIN (EAN)
IDW-6Nm	R 815720	1.2 - 6	0.25	1/4	260	0.5	4260667412745
IDW-15Nm	R 815707	3 - 15	0.25	3/8	260	0.5	4260667412738
IDW-35Nm	R 815708	7 - 35	0.5	3/8	260	0.5	4260667412721
IDW-70Nm	R 815709	14 - 70	1.0	3/8	311	0.6	4260667412714
IDW-200Nm	R 815710	40 - 200	2.5	1/2	527	1.3	4260667412707
IDW-350Nm	R 815711	70 - 350	5.0	1/2	527	1.3	4260667412691
IDW-800Nm	R 815712	160 - 800	10	3/4	1181	3.4	4260667412684
IDW-1300Nm	R 815723	260 - 1300	25	1	1816	7.7	4260667412776

IDW – Pound-inch

Model	SKU	Torque Range [lbf·in]	Graduation	SqDr [inch]	L [inch]	Weight [lb]	NSN (VN)
IDW-30i	R 815700	6 - 30	1	1/4	10 1/4	1.2	5120-00-117-4832
IDW-50i	R 815719	10 - 50	2	1/4	10 1/4	1.2	n.a.
IDW-150i	R 815701	30 - 150	2	3/8	10 1/4	1.2	5120-00-230-6380
IDW-300i	R 815702	60 - 300	5	3/8	10 1/4	1.2	n.a.
IDW-600i	R 815703	120 - 600	10	3/8	12 1/4	1.4	5120-01-707-8065

IDW – Pound-foot

Model	SKU	Torque Range [lbf·ft]	Graduation	SqDr [inch]	L [inch]	Weight [lb]	NSN (VN)
IDW-150	R815704	30 - 150	2	1/2	20 3/4	2.8	n.a.
IDW-250	R815705	50 - 250	5	1/2	20 3/4	2.0	n.a.
IDW-600	R815706	120 - 600	10	3/4	46 1/2	7.5	5120-00-221-7983
IDW-1000	R815722	200 - 1000	10	1	71 1/2	7.5	5120-00-555-1521

Specification as stated by manufacturer. It is recommended to use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you were to regularly work at the tool’s capacity limit, a larger model would generally be the better option.

SKU = Stock Keeping Unit. All technical data without guarantee, errors and omissions excepted.
